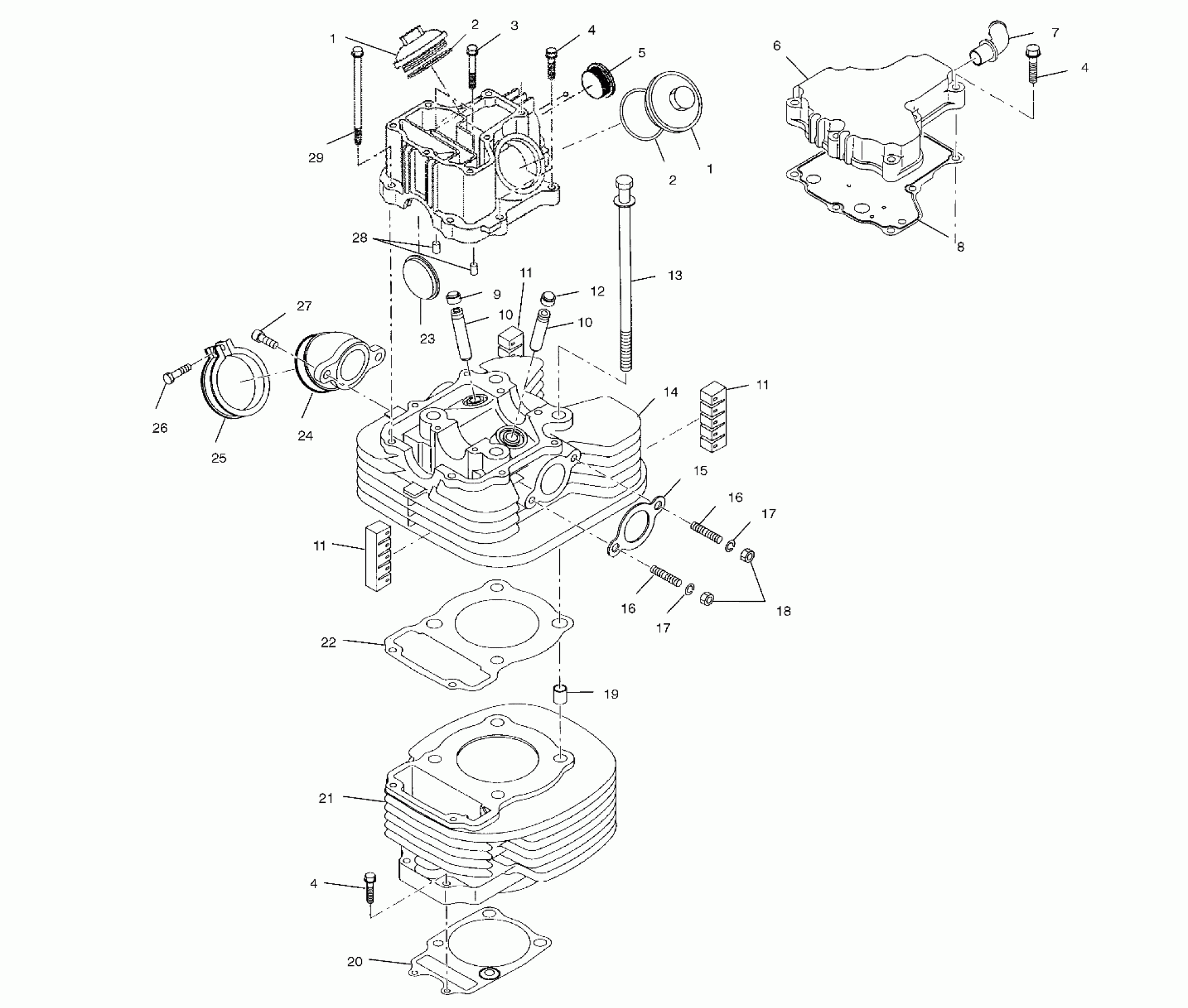

Polaris MAGNUM 330 4X4 - A03CD32AA/AB/AC/FB CYLINDER - A03CD32AA/AB/AC/FB (4975217521D04) Diagram

#

Description
Price

1

Cover, Valve

3087259

Unavailable

1

Cover, Valve

3087259

Unavailable

2

O-Ring

3086414

$29.99

2

O-Ring

3086414

$29.99

3

BOLT, FLANGE

3087159

$3.99

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

4

Bolt, Flange

3087158

Unavailable

5

Plug, Cylinder Block

3086417

Unavailable

6

Cover, Breather

3087033

$123.99

7

Pipe

3085850

$51.99

8

Gasket

3087034

$27.99

9

Seal, Intake Valve

3084858

$13.59

10

GUIDE, VALVE

3084994

$39.99

10

GUIDE, VALVE

3084994

$39.99

11

Fin Damper A

3084798

$31.99

11

Fin Damper A

3084798

$31.99

11

Fin Damper A

3084798

$31.99

12

SEAL, EXHAUST VALVE

3084859

$23.99

13

Bolt and Washer

3086418

$10.39

14

Asm., Cylinder Head [Incl. 3,4,10-12,14,16]

3087237

$704.99

15

Gasket, Exhaust

3086421

Unavailable

16

Stud

3085326

Unavailable

16

Stud

3085326

Unavailable

17

Washer

3080530

$3.19

17

Washer

3080530

$3.19

18

Nut

3086787

Unavailable

19

Pin, Straight

3084838

Unavailable

20

Gasket, Cylinder

3086407

$31.99

21

Cylinder

3087236

$367.99

22

Gasket, Head

3087238

$39.99

23

Gasket, Cam

3086416

Unavailable

24

Adapter

3087050

$71.99

25

Asm., Adapter Band [Incl. 26]

3083166

$19.84

26

SCREW

3081497

$2.39

27

Bolt

3086786

Unavailable

28

Pin, Straight

3086410

$3.99

29

Bolt, Flange

3087160

Unavailable
