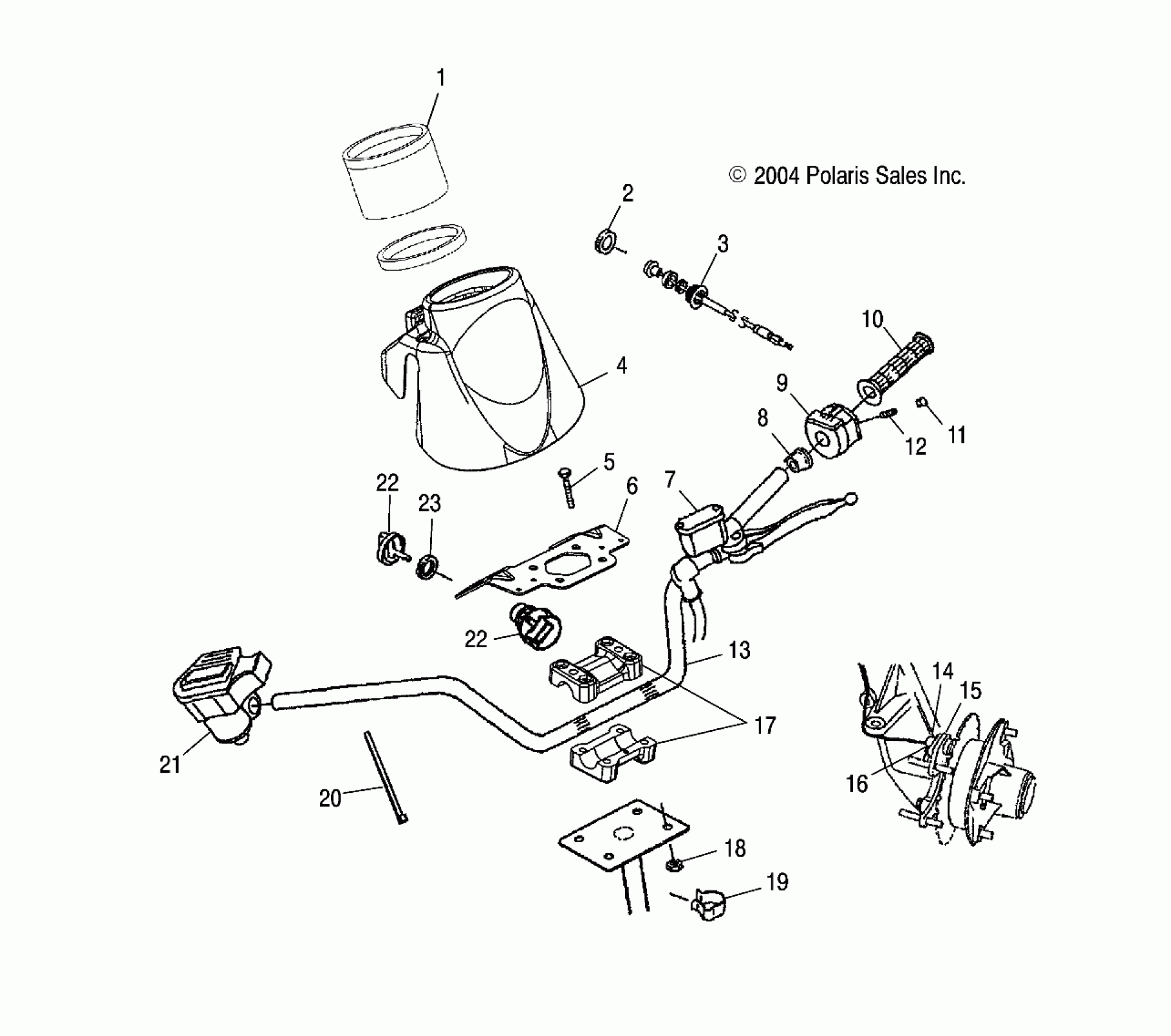

Polaris MAGNUM 330 2X4 - A05CB32AA HANDLEBAR - A05CB32AA (4994889488C01) Diagram

#

Description
Price

1

Cluster

3280450

Unavailable

2

Nut, Choke

7080922

$3.19

3

CABLE, CHOKE

7081171

Unavailable

4

Panel, Instrument, Black

5435256-070

Unavailable

5

SCREW

7515189

Unavailable

6

Bracket, Instrument Panel

5248182

$4.37

7

ASM., MASTER CYLINDER [SEE CONTROL - MASTER CYLINDER/BRAKE LINE PG. B4 FOR DETAILS]

-------

Unavailable

8

Spacer, Switch, LH

5433903

Unavailable

9

Switch, Handlebar, Hi/Lo/Off

4010592

$38.60

10

Grip, Handlebar, Black

5433834-070

$24.27

11

PLUG, HOLE

5432952

$5.59

12

SCREW, SET

7517625

$4.79

13

Tube, Handlebar, Black

5334127-067

Unavailable

14

Cap, Hall Sensor

5132382

$23.99

15

Sensor, Hall Effect

4010298

$111.99

16

Screw

7517658

$5.59

17

BLOCK, HANDLEBAR

5631973

$27.99

17

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

18

Nut, Nylok

7542122

$1.49

19

Clip, Cable Retaining

7080631

$6.29

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

22

Switch, Key, 3 Position

4011002

Unavailable

22

Cover, Key

5431964

Unavailable

22

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

22

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

22

Switch, Key, 3 Position

4011002

Unavailable

22

Cover, Key

5431964

Unavailable

23

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99
