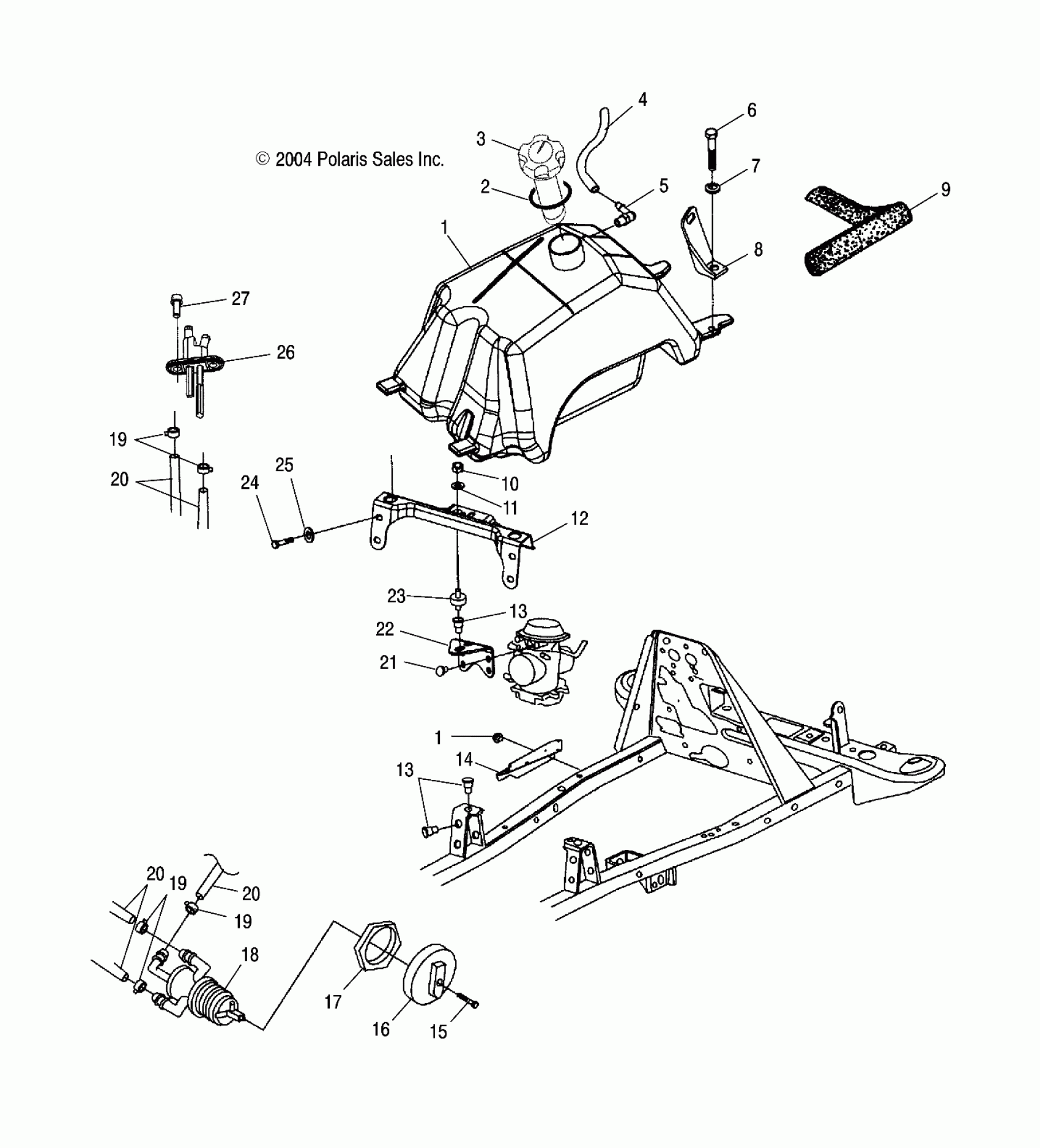

Polaris MAGNUM 330 2X4 - A05CB32AA FUEL TANK and CARBURETOR MOUNTING - A05CB32AA (4994889488A13) Diagram

#

Description
Price

1

Asm., Tank, Fuel

2520409

Unavailable

1

Asm., Tank, Fuel

2520409

Unavailable

2

GASKET

5812123

$5.65

3

Kit, Fuel Gauge

2873626

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7512277

$4.79

7

Washer, Flat

7558301

$1.49

8

Bracket, Fuel Cover Mount, LH

5222154

Unavailable

8

Bracket, Fuel Cover Mount, RH

5222155

Unavailable

9

Seal, Foam

5811899

Unavailable

10

Nut, Hex

7542105

$3.99

11

WASHER, SPRING LOCK

7552801

$1.59

12

Bracket, Carburetor Support, Black

5245671-067

Unavailable

13

Nutsert, Hex

7547069

$3.99

13

Nutsert, Hex

7547069

$3.99

14

Shield, Splash, Black, LH

5245394-067

$15.67

15

Screw

7517505

$1.59

16

Knob, Fuel Valve

5432559

$10.39

17

Nut, Fuel Valve

5432733

Unavailable

18

Valve, 3-Way

7052161

$39.99

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

Line, Fuel

8450040-600

Unavailable

20

Line, Fuel

8450040-600

Unavailable

20

Line, Fuel

8450040-600

Unavailable

21

Asm., Screw and Washer

3084205

$3.99

22

Bracket, Carburetor, Black

5245674-067

Unavailable

23

MOUNT, CARBURETOR

3110050

$12.99

24

Bolt

7512276

$4.79

25

Washer, Flat

7555859

$1.49

26

Fitting Fuel Dual Outlet

7052364

Unavailable

27

Screw

7515136

$1.49
