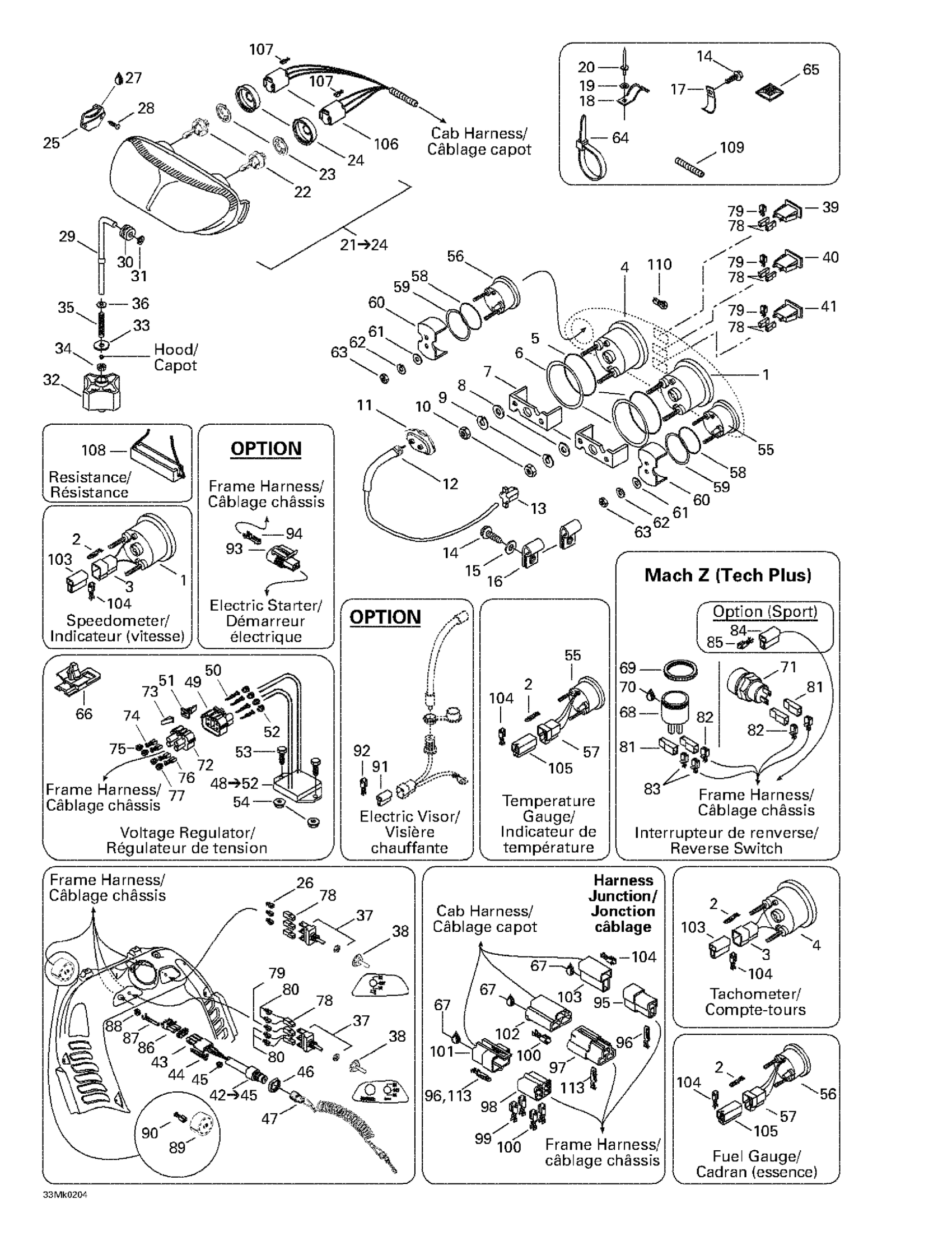

Ski-Doo Mach Z, 2002 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

Tachometer

515175341

Unavailable

5

O-Ring

414807100

Unavailable

6

Washer

517258500

Unavailable

7

Case Holder

414806500

Unavailable

8

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

9

Lock Washer

414806700

Unavailable

10

Nut

414806900

Unavailable

11

Drive Angle

515175400

Unavailable

12

Speedometer Cable

515175218

Unavailable

13

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

14

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

15

Washer | DS 650 X

391301600

$0.48

16

Open Clamp

414176000

$1.99

17

Cable Bracket

515175160

Unavailable

18

Bracket

517274400

Unavailable

19

Washer

517124300

$0.19

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

22

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

23

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

24

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

25

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

26

Female Terminal

409010100

$5.61

27

Grease Tube Lmz, 400 G

413707500

Unavailable

28

Headlamp Screw

732601315

Unavailable

29

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

30

Grommet - Call your local BRP dealership

415100800

Unavailable

31

Push Nut

732610072

$2.19

32

Handle - Call your local BRP dealership

515175548

Unavailable

33

Washer

224060251

$0.58

34

Elastic Stop Nut M6

232561414

$0.55

35

SPRING - Call your local BRP dealership

415100600

Unavailable

36

Flat Washer 6 mm

234061410

$1.36

37

Switch (Heating Grip) | FREERIDE

410107300

$35.99

38

Switch Cover

515175281

$15.99

39

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

40

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

41

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

Pilot Lamp (Reverse/D.E.S.S.)

515175729

Unavailable

42

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

43

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

44

Male Terminal | XT Models

278000222

$3.19

45

Wire Seal

278000218

$4.39

46

Safety Nut (DESS Switch)

278002963

$3.28

47

DESS

515178284

$84.99

48

Voltage Regulator | Includes 48 - 52.

515175491

Unavailable

49

Female Terminal Housing (4 circuits)

409208000

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

Female Lock

409013400

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

53

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

Temperature Gauge

515175342

Unavailable

56

FUEL GAUGE - Call your local BRP dealership

515175343

Unavailable

57

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

58

O-RING - Call your local BRP dealership

414807200

Unavailable

59

WASHER - Call your local BRP dealership

517258600

Unavailable

60

Case Holder

415099800

Unavailable

61

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

62

Lock Washer | SE Models

414833700

Unavailable

63

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

64

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

65

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

66

Housing Support

515175283

$9.19

67

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

68

HORN - Call your local BRP dealership

515176035

Unavailable

69

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

70

Silicone Sealant 51388, 300 ml

296000309

$36.99

71

Push Button

415130372

$122.49

72

Male Terminal Housing (4 circuits)

409207700

Unavailable

73

Male Lock

409013100

Unavailable

74

Male Terminal

409010900

Unavailable

75

Seal

278001223

Unavailable

76

Male Terminal

409013000

Unavailable

77

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

78

Female Terminal Housing, 1 Circuit

409010400

$7.62

79

Female Terminal

409010100

$5.61

80

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

81

Female Terminal Housing, 1 Circuit

409010400

$7.62

82

Female Terminal

409010100

$5.61

83

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

84

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

85

Female Terminal

561503100

$2.41

86

Male Housing, 3 Circuits

278000273

$9.59

87

Female Terminal

278000223

$3.19

88

Wire Seal

278000218

$4.39

89

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

90

Female Terminal

561503100

$2.41

91

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

92

Female Terminal

561503100

$2.41

93

Male Connector, 2 Circuits

278001113

$16.86

94

Female Terminal

278001114

$3.19

95

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

96

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

97

Male Terminal Housing (3 circuits)

409008600

Unavailable

98

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

99

FEMALE TERMINAL - Call your local BRP dealership

515175313

Unavailable

100

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

101

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

102

Female Terminal Housing (3 circuits)

409008500

Unavailable

103

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

104

Female Terminal

561503100

$2.41

105

Female Housing

409204300

Unavailable

106

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

107

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

108

Resistance

515175241

$17.99

109

Was 409901700 Tubing (9 mm)

219704399

$84.99

Was 409901800 Tubing (13 mm)

219704400

$14.49

Tubing 10 MM 1000MM Long

219704407

$2.79

Tubing 16 Mm 1000Mm Long

219704408

$7.49

110

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

111

Frame Harness (Not Shown) | Mach Z (Sport).

515175574

Unavailable

Frame Harness (Not Shown)

515175575

Unavailable

112

Hood Harness (Not Shown)

515175150

Unavailable

113

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable
