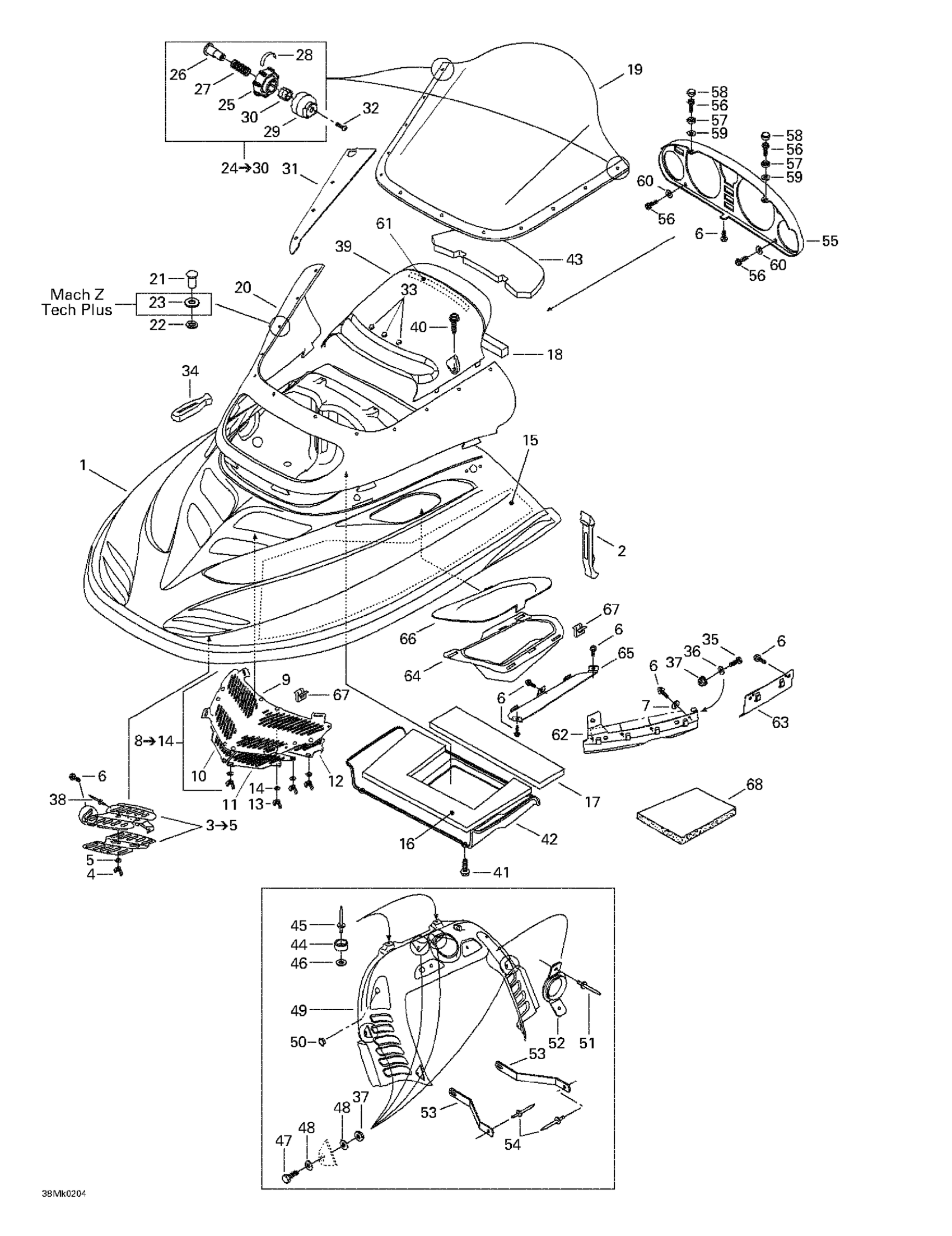

Ski-Doo Mach Z, 2002 09- Cab, Console Diagram

#

Description
Price

1

Deep Black, Hood

517302484

Unavailable

2

Hood Latch

517302152

$18.49

3

RH Front Grille Ass'y | Includes 3 - 5.

517302205

Unavailable

LH Front Grille Ass'y

517302208

Unavailable

4

Wing Nut M5

414070300

Unavailable

5

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

6

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Center Grill Ass'y | Includes 8 - 14.

517302073

Unavailable

9

Central Grille

517289100

Unavailable

10

RH Front Sliding Grille

517289103

Unavailable

11

LH Front Sliding Grille

517289104

Unavailable

12

RH Rear Sliding Grille

517289105

Unavailable

LH Rear Sliding Grille

517289106

Unavailable

13

Wing Nut M5

414070300

Unavailable

14

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

15

LH Side Foam

517302184

Unavailable

RH Side Foam

415045100

Unavailable

16

Center Foam

415045300

Unavailable

17

Rear Foam

415045400

Unavailable

18

Deflector Foam

415045500

Unavailable

19

Low Windshield

415045800

Unavailable

Low Windshield | Mach Z (Tech Plus).

517302480

Unavailable

20

Windshield Support

517302076

Unavailable

21

STUD - Call your local BRP dealership

572103500

Unavailable

STUD - Call your local BRP dealership | Mach Z (Tech Plus).

517302264

Unavailable

22

Push Nut

732610072

$2.19

23

Washer

517302265

Unavailable

24

RH Handle Ass'y | Includes 24 - 30. Mach Z (Tech Plus).

517302360

Unavailable

LH Handle Ass'y | Mach Z (Tech Plus).

517302361

Unavailable

25

Handle | Mach Z (Tech Plus).

517302260

Unavailable

26

Stopper | Mach Z (Tech Plus).

517302262

Unavailable

27

Spring | Mach Z (Tech Plus).

517302263

Unavailable

28

RH Decal | Mach Z (Tech Plus).

516000331

Unavailable

LH Decal | Mach Z (Tech Plus).

516000332

Unavailable

29

Guard | Mach Z (Tech Plus).

517302261

Unavailable

30

Gear | Mach Z (Tech Plus).

517302321

Unavailable

31

RH Plate Ass'y | Mach Z (Tech Plus).

517302509

Unavailable

LH Plate Ass'y | Mach Z (Tech Plus).

517302510

Unavailable

32

PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership

250000031

Unavailable

33

Spacer | Mach Z (Tech Plus).

517302511

Unavailable

34

Windshield Latch

570023800

$4.49

35

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

36

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

37

Hex. Flange Elastic Nut M5

233251414

$1.04

38

Pop Rivet 3/16"

390402400

$0.35

39

Air Intake Deflector

572107300

Unavailable

40

Tuflock Phillips Plastic Screw

414745900

$1.69

41

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

42

Plate

572087800

Unavailable

43

Filter Foam

415123100

Unavailable

44

Rubber Stopper

415018100

$2.49

45

Pop Rivet 1/8" | SM5

390401600

$5.69

46

WASHER - Call your local BRP dealership

293150007

Unavailable

47

Hex. Screw M5 X 20

207152044

$0.90

48

Washer | DS 650 X

391301600

$0.48

49

Console

517302249

Unavailable

50

CAP - Call your local BRP dealership

572072100

Unavailable

51

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

52

Rope Guide

517296800

Unavailable

53

Bracket

517296900

Unavailable

54

Pop Rivet 3/16”

390910000

$0.57

55

Gauge Support

572098600

Unavailable

56

Screw K40 X 10

241140060

$1.48

57

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

58

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

59

Flat Washer 4 mm, Stainless

234042600

$1.15

60

Washer

517124300

$0.19

61

VELCRO 1/2? - Call your local BRP dealership

415110900

Unavailable

62

RH Hood Guide

517301200

Unavailable

LH Hood Guide

517301300

Unavailable

63

Hood Guide

517302108

Unavailable

64

Inlet Duct

517302155

Unavailable

65

Plate

517302414

Unavailable

66

RH Grille

517302156

Unavailable

LH Grille

517302167

Unavailable

67

Edge Clip

517302785

$0.88

68

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable
