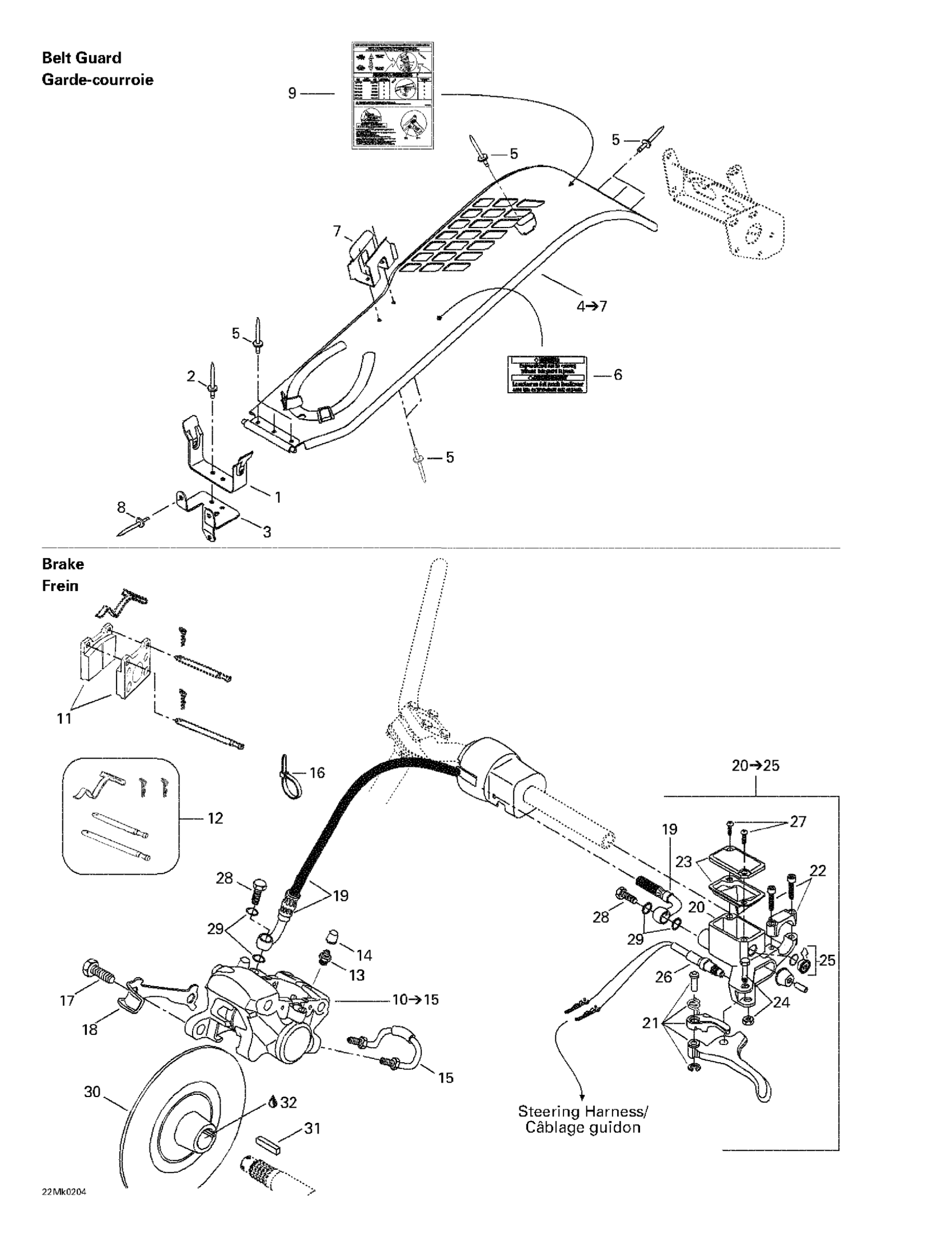

Ski-Doo Mach Z, 2002 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
3
Pulley Guard Support
518317000
Unavailable
4
Belt Guard Ass'y | Includes 4 - 7.
417300185
Unavailable
6
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
9
Decal (Suspension Adjustment)
516000951
Unavailable
10
Caliper | Includes Items 1 to 6
507032321
Unavailable
12
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
13
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
14
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
15
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
18
Locking Tab
507031900
Unavailable
19
Hose
507032220
Unavailable
Hose | Mach Z (Tech Plus).
507032272
Unavailable
20
Master Cylinder | Includes 1 to 8
507032293
Unavailable
21
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
25
WINDOW - Call your local BRP dealership
414990600
Unavailable
27
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
30
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
31
KEY - Call your local BRP dealership
507021300
Unavailable
32
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
