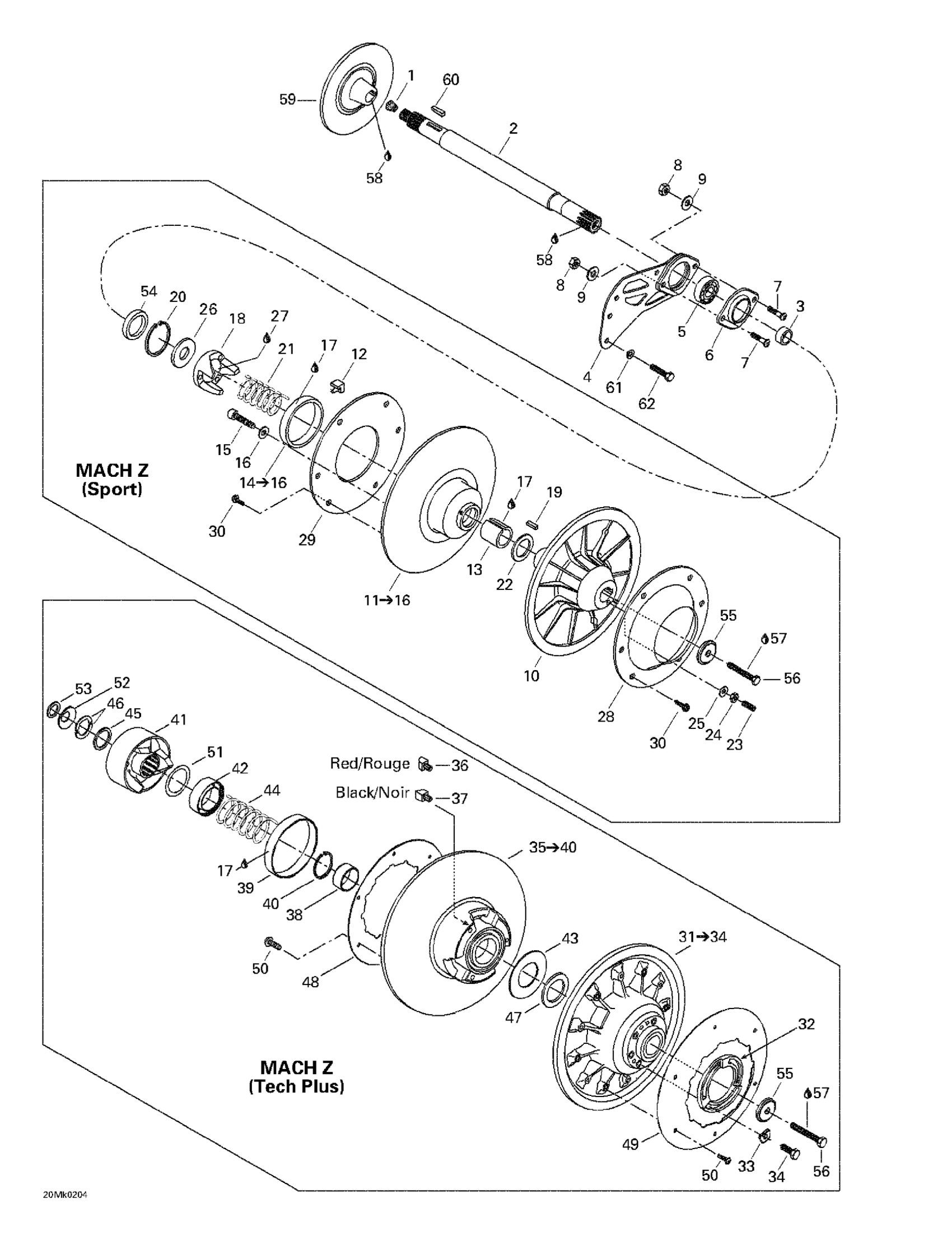

Ski-Doo Mach Z, 2002 05- Driven Pulley Diagram

#

Description
Price

1

CORK - Call your local BRP dealership

414784800

Unavailable

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

Spacer

504149100

$12.99

4

Spacer (Casting)

080039300

Unavailable

5

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

6

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

7

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

Flat Washer 8 mm

234081410

$0.83

10

Fixed Flange | 380 F.

417126477

Unavailable

11

Sliding Flange Ass'y | Includes 11 - 16. Mach Z (Sport).

417126487

Unavailable

12

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

13

BUSHING - Call your local BRP dealership

415011200

Unavailable

14

Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).

860423000

Unavailable

15

SCREW M5 X 12 - Call your local BRP dealership | 800 H.O. with DPM

205451286

Unavailable

16

Flat Washer

399910000

Unavailable

17

Loctite 609, 10 ml

413703100

$26.99

18

Cam | Mach Z (Sport).

417126387

Unavailable

19

Key

414820800

Unavailable

20

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

21

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

22

Thrust Washer

504141900

Unavailable

23

Socket Set Screw M6 X 30

206263044

Unavailable

24

Hex. Nut M6

232061414

$0.53

25

WASHER - Call your local BRP dealership

420245370

Unavailable

26

Washer

504141800

Unavailable

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

CUP - Call your local BRP dealership

504142000

Unavailable

29

Ring

504142100

Unavailable

30

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

31

Fixed Flange Ass'y | Includes 10 - 13.

417126414

Unavailable

32

Adjustment Ring

415005800

Unavailable

33

Adjustment Shim

415005900

Unavailable

34

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

35

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

36

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

37

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

38

Not Available As Spare Part - Friction Washer

Unavailable

39

BUSHING - Call your local BRP dealership

417126902

Unavailable

40

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

41

Cam Ass'y

417126385

Unavailable

42

GUARD - Call your local BRP dealership

417126381

Unavailable

43

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

44

Release Spring, Purple | North America

414978300

$33.99

45

Spacer

417126375

Unavailable

46

HALF KEY - Call your local BRP dealership

371911000

Unavailable

47

SHIM - Call your local BRP dealership

504112300

Unavailable

48

Aerodynamic Cover

504149700

Unavailable

49

AERODYNAMIC COVER - Call your local BRP dealership

504151831

Unavailable

50

Screw M5 x 11

732600032

Unavailable

51

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

52

Protector

417300055

Unavailable

53

Spacer

417300265

$2.29

54

SPACER - Call your local BRP dealership

417126302

Unavailable

55

Strength Washer

517302322

$12.63

56

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

57

Loctite 243, 10 ml

293800060

$21.49

58

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

59

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

60

KEY - Call your local BRP dealership

507021300

Unavailable

61

Lock Washer M6, Black

234161471

$0.53

62

Hex. Screw M6 X 18

207161844

$0.76
