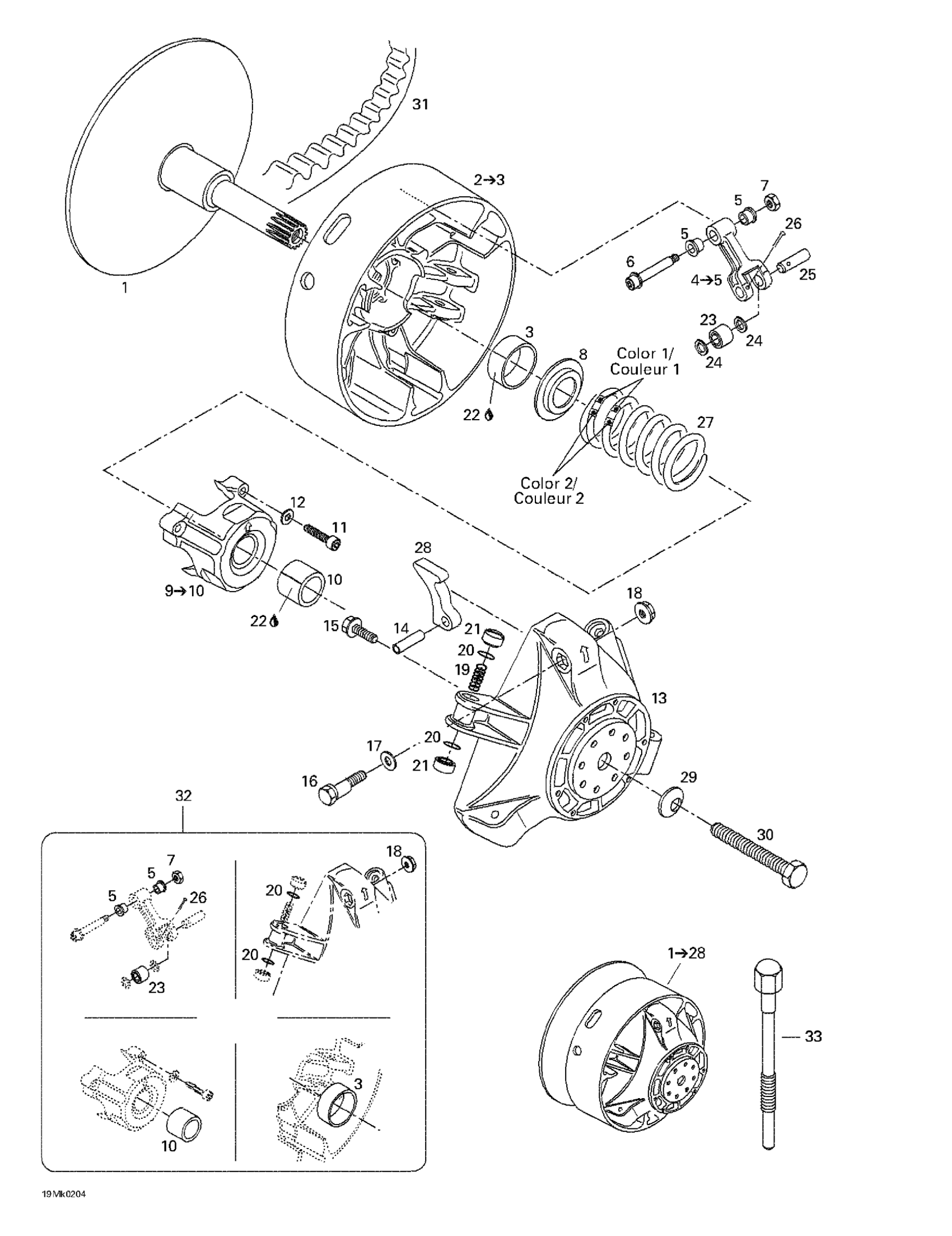

Ski-Doo Mach Z, 2002 05- Drive Pulley Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

FIXED FLANGE ASSY - Call your local BRP dealership

417222272

Unavailable

2

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$0.55

8

Spring Seat

417222044

Unavailable

9

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

10

Bushing

417004501

$24.99

11

Socket Head Screw M6 X 40

250000038

$7.59

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

Governor Cup

417222059

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$4.09

18

Hex. Flange Nut M6

233061414

$1.68

19

Spring

417005700

$4.76

20

O-Ring

732401030

$0.98

21

Slider Shoe This part replaces 420460045.

417223021

$5.90

22

Loctite 609, 10 ml

413703100

$26.99

23

Roller

417222947

$21.99

24

Stopper Washer

417004302

$15.90

25

Pin

417004308

$13.99

26

Cotter Pin

250400060

$2.00

27

SPRING (GREEN/BLUE) - Call your local BRP dealership

414768200

Unavailable

28

Ramp 295

417005295

Unavailable

29

Spring Washer 14 mm

250200006

$6.99

30

Drive Pulley Bolt

417120000

$65.49

31

Drive Belt

417300066

$134.99

32

Clutch Repair Kit

417006100

$189.99

33

Puller This part replaces 529022400.

529000064

$71.99
