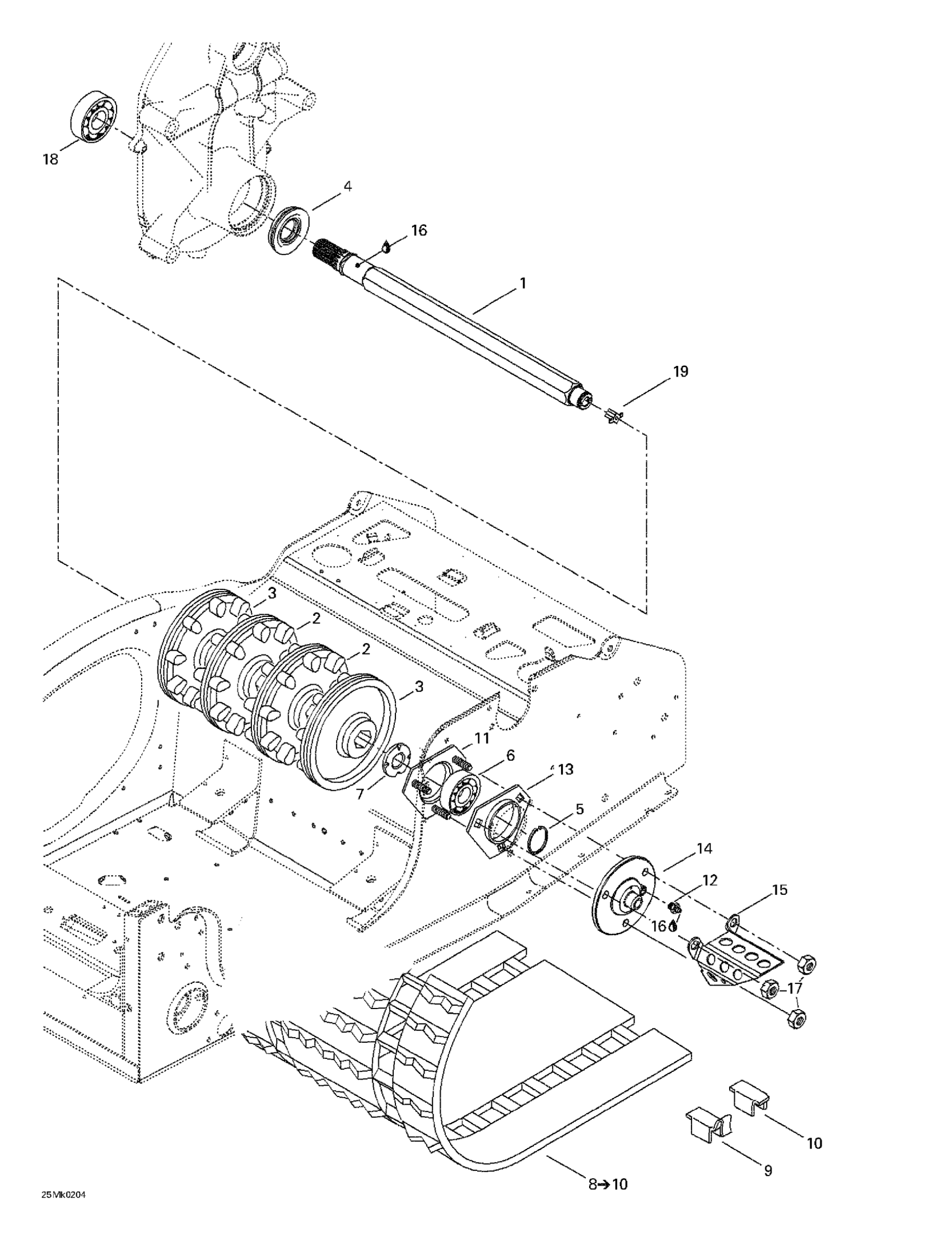

Ski-Doo Mach Z, 2002 05- Drive Axle And Track Diagram

#

Description
Price

1

Drive Axle

501026500

Unavailable

2

9-Tooth Sprocket

504151900

Unavailable

3

9-Tooth Half Sprocket

504151901

Unavailable

4

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

9

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Grease Fitting

408200700

$3.49

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Flange, Speedo Drive Insert

504151836

Unavailable

15

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Ball Bearing 6206

504152010

Unavailable

19

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
