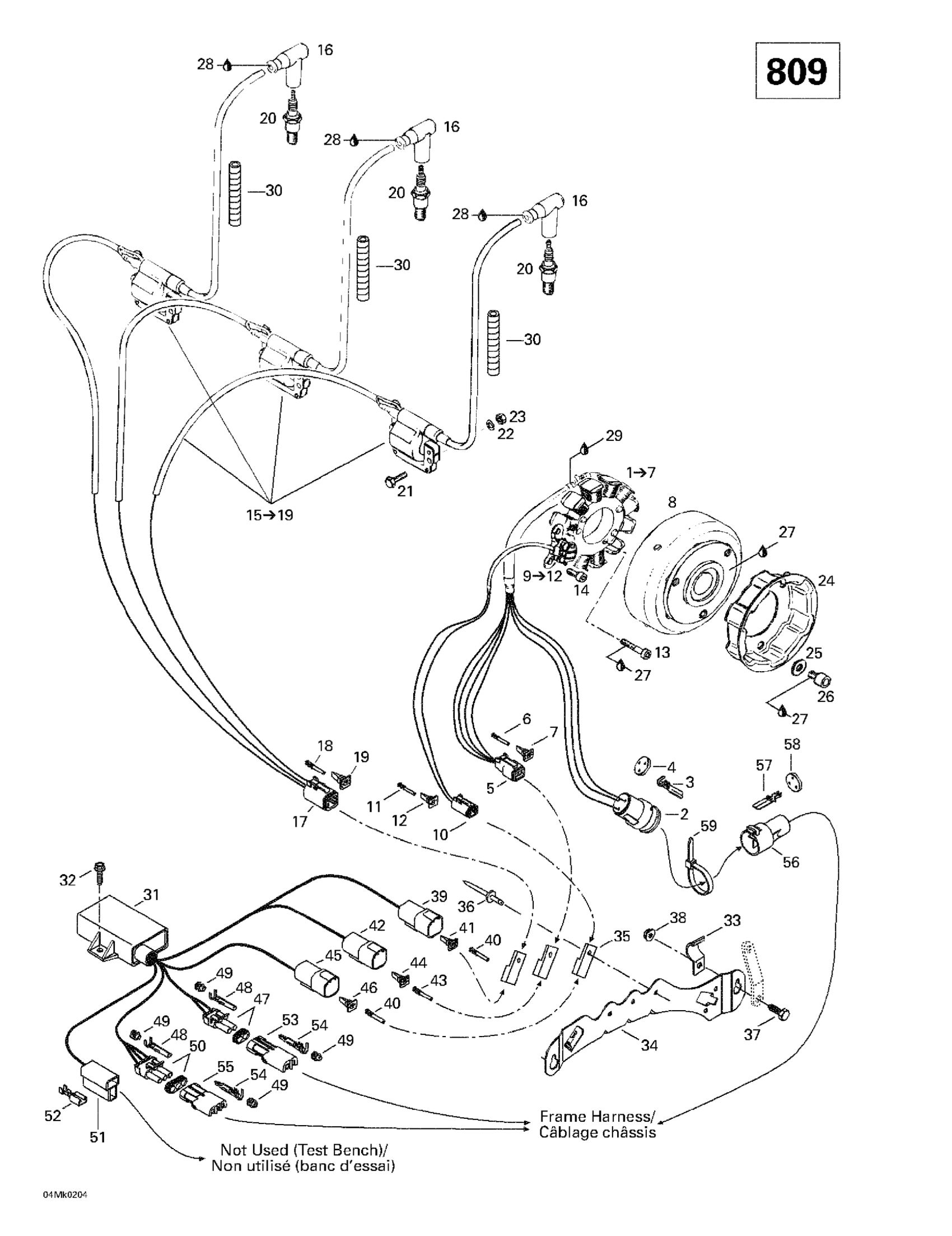

Ski-Doo Mach Z, 2002 03- Magneto (12V, 290W) Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

3

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

Female Terminal Housing (4 circuits)

515175245

Unavailable

6

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

7

Female Lock (4 circuits)

515175246

Unavailable

8

Magneto Flywheel | Mach Z (Sport).

410922928

Unavailable

9

Pick Up Ass'y | Includes 9 - 12. Mach Z (Sport).

410922929

Unavailable

10

Female Connector, 2 Circuits

409207300

$9.85

11

Female Terminal

278000632

$2.09

12

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

13

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

14

Allen Screw M6 X 14

420840391

$1.69

15

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

16

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

17

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

18

Female Terminal

278000632

$2.09

19

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

20

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

22

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

23

Hex. Nut M6

232061414

$0.53

24

Starting Pulley

420852418

Unavailable

25

Flat Washer

420827405

$1.69

26

Socket Head Screw M8 X 12

420841520

$1.69

27

Loctite 243, 10 ml

293800060

$21.49

28

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

Tubing 10 MM 1000MM Long

219704407

$2.79

31

Calibration Module | Mach Z (Sport).

515175430

Unavailable

32

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

33

Bracket

517274400

Unavailable

34

Housing Support

515175148

Unavailable

35

Clip

270000141

$11.49

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Hex. Screw M5 X 14

207151444

$0.87

38

Hex. Flange Elastic Nut M5

233251414

$1.04

39

Male Terminal Housing, 6 Circuits

710001539

$19.99

40

Male Terminal

278000631

$4.39

41

Female Lock, 6 Circuits

278000735

$3.19

42

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

43

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

44

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

45

Male Housing, 2 Circuits

409206900

$9.59

46

Male Lock, 2 Circuits

409207500

$3.19

47

Male Connector, 2 Circuits

278000220

$15.49

48

Female Terminal

278000223

$3.19

49

Wire Seal

278000218

$4.39

50

Male Housing, 3 Circuits

278000273

$9.59

51

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

52

Female Terminal

561503100

$2.41

53

Female Housing, 2 Circuits

278000217

$9.59

54

Male Terminal | XT Models

278000222

$3.19

55

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

56

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

57

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

58

SEAL - Call your local BRP dealership

409208500

Unavailable

59

Tie-Rap 180 mm

414115200

$0.11
