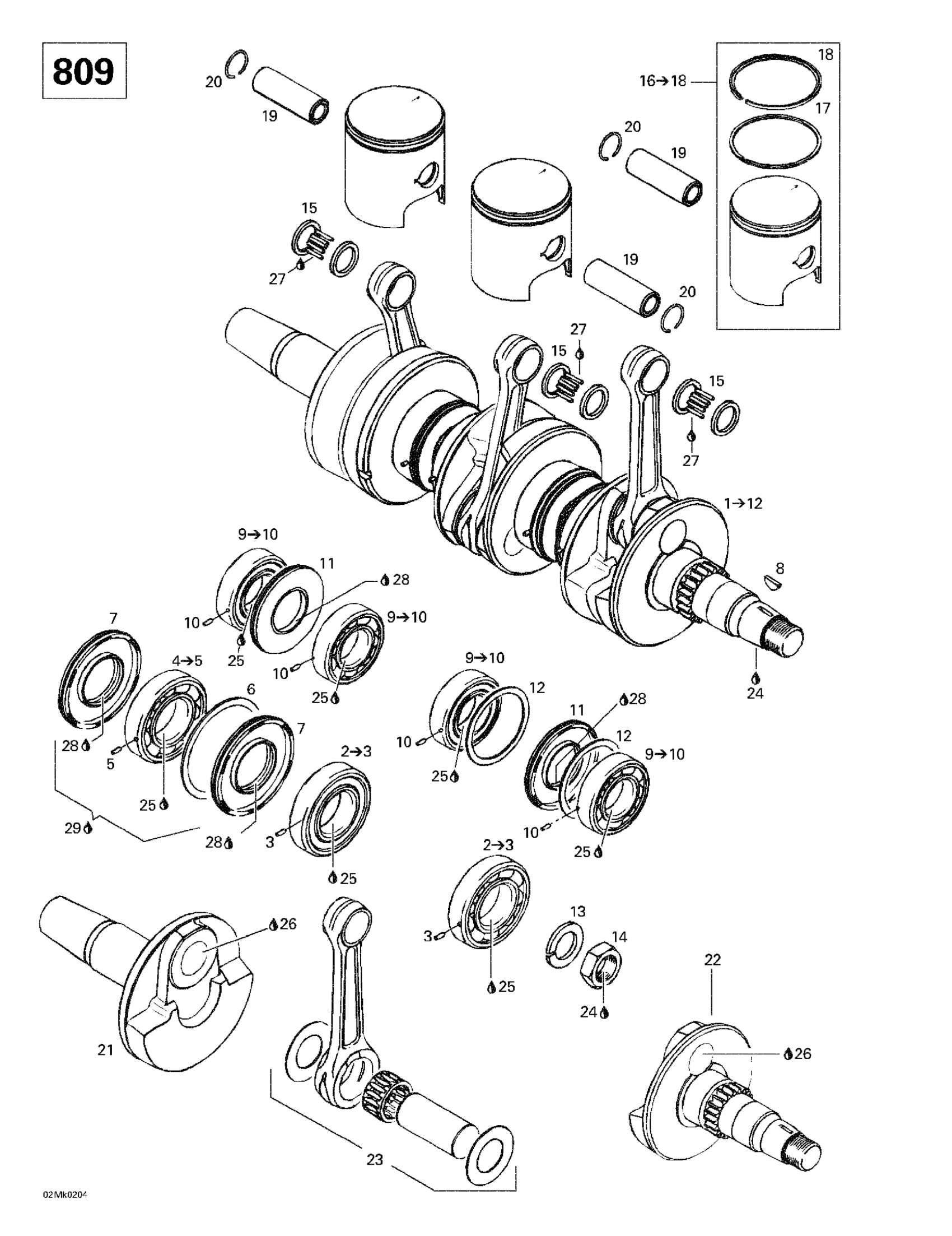

Ski-Doo Mach Z, 2002 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 12.

420887662

Unavailable

2

Ball Bearing Ass'y | Includes 2 - 3.

420432272

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing Ass'y | Includes 4 - 5.

420832580

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Washer

420926190

$11.63

7

Oil Seal

420931280

$51.49

8

Woodruff Key

420246015

$3.17

9

Ball Bearing Ass'y | Includes 9 - 10.

420832630

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

Retaining Disk

420927710

$7.41

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832320

$30.49

16

PISTON ASS'Y - Call your local BRP dealership | Includes 16 - 18.

420887646

Unavailable

17

Rectangular Ring 70.5 mm

420915988

Unavailable

18

Semi-Tapez Ring 70.5 mm

420815049

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

20

Piston Circlip

420945735

$4.46

21

Crankshaft (PTO Side)

420818572

Unavailable

22

Crankshaft (MAG Side)

420818583

Unavailable

23

ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership

420887663

Unavailable

Rod Repair Kit (MAG/Center Side)

420887664

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

26

Sealant Loctite 648

219703000

$45.99

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

28

Petamo Grease, GHY133N, 400 g

420899271

$67.99

29

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99
