1985 Kawasaki LTD Shaft Rear Wheel/hub Diagram

← All diagrams

Find the part on the Rear Wheel/hub diagram for your 1985 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

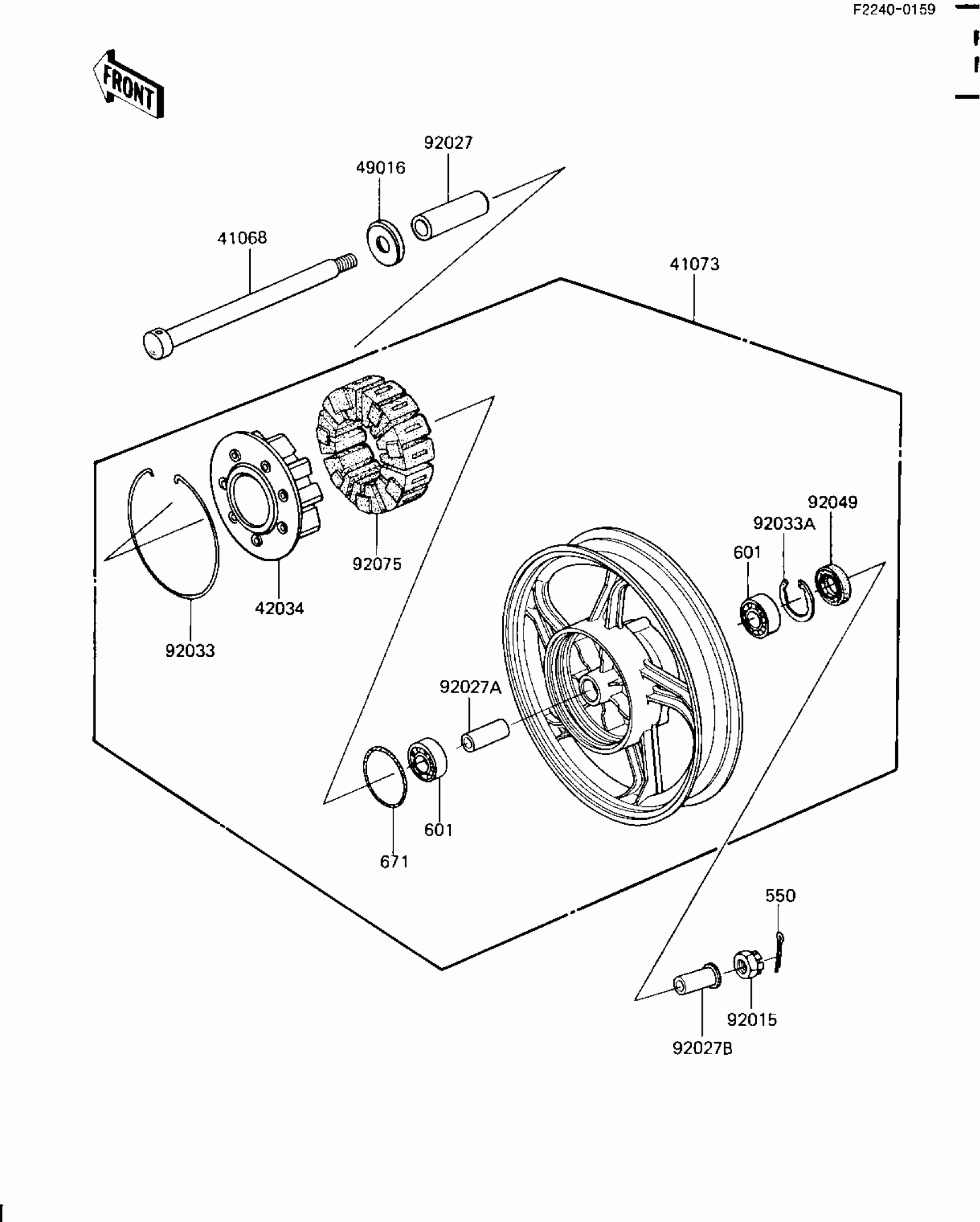

1985 Kawasaki LTD Shaft Rear Wheel/hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR,L=294

41068-1171

1
Out of stock

41073

WHEEL-ASSY,RR,M.GRAY

41073-1224-J9

1
Out of stock

42034

COUPLING,RR HUB

42034-1011

1
Out of stock

49016

COVER-SEAL

49016-1019

1
Out of stock

92015

NUT,CASTLE,18MM

42045-018

1
Out of stock

92027

COLLAR

92027-1126

1
Out of stock

92027A

COLLAR,20.2X28X70

92027-1752

1
Out of stock

92027B

COLLAR,RR AXLE,L=20

92027-1792

1
Out of stock

92033

RING-SNAP

92033-1019

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1121

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

UNAVAILABLE IN PRICE BOOK

601B630422

1
Out of stock

671

O RING,80MM

671B2580

1
Out of stock
