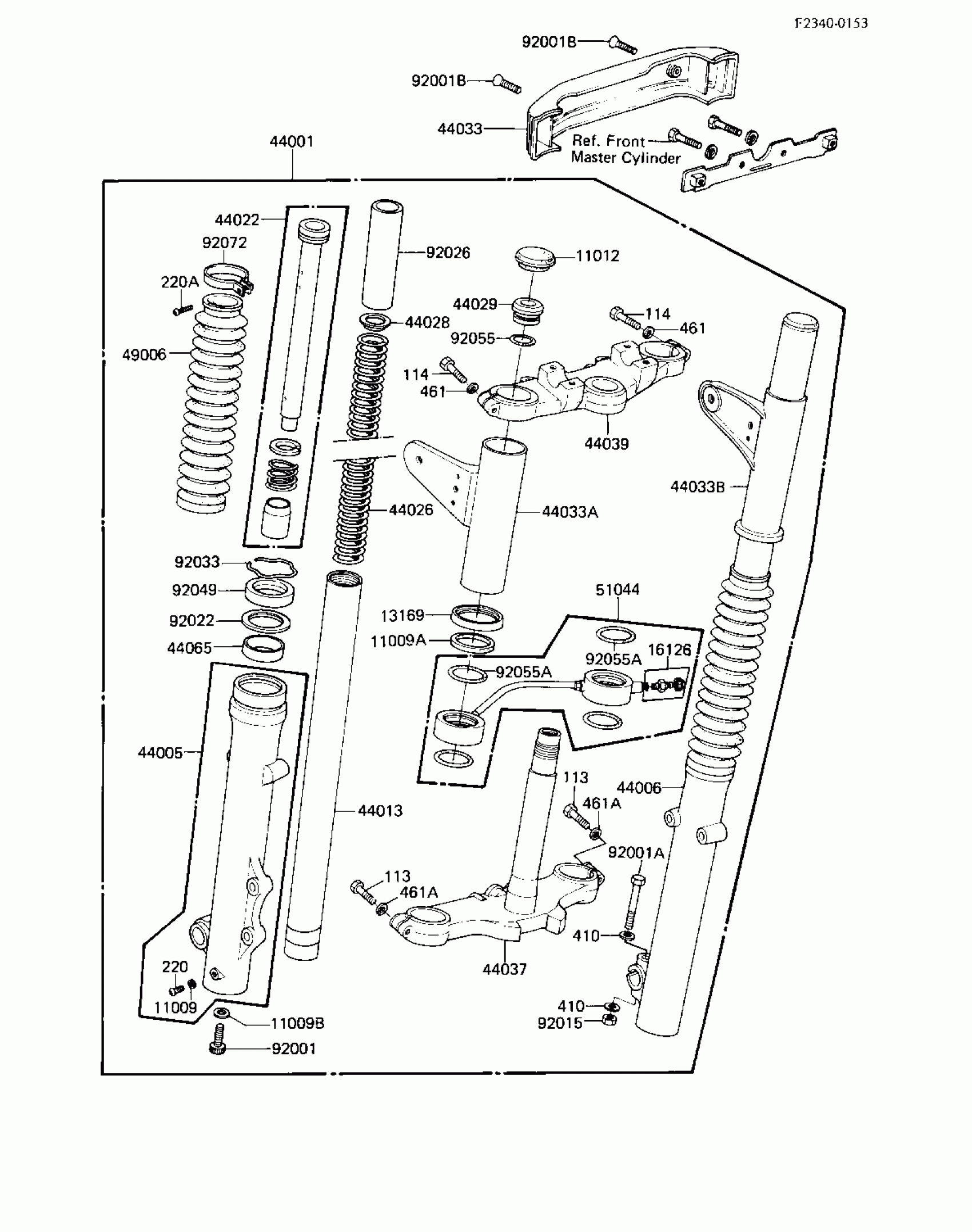

1983 Kawasaki LTD Shaft Front Fork Diagram
Find the part on the Front Fork diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11009Q
GASKET,FORK COVER
44045-038
13169
PLATE,FORK COVER,LWR
13169-1614
44028
GUIDE,FORK SPRING
44028-033
44033A
COVER-FORK,LH
44033-1137
44033B
COVER-FORK,RH
44033-1138
49006
BOOT,FRONT FORK
49006-1096
92015
NUT,LOCK,8MM
92015-1124
92049
SEAL-OIL,FRONT FORK
92049-1101
92072
BAND,BOOT
92072-1008
113
BOLT-SMALL-FINE,10X40
113J1040
114
BOLT-SMALL,8X40
114J0840
220
SCREW PAN HEAD 4X8
220B0408
220A
SCREW-PAN-CROS,4X20
220C0420
410
WASHER PLAIN 8MM
410B0800
461
WASHER-SPRING,8MM,BLACK
461K0800
461A
WASHER-SPRING,10MM,BLACK
461K1000
