1983 Kawasaki LTD Shaft Shock Absorbers Diagram

← All diagrams

Find the part on the Shock Absorbers diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

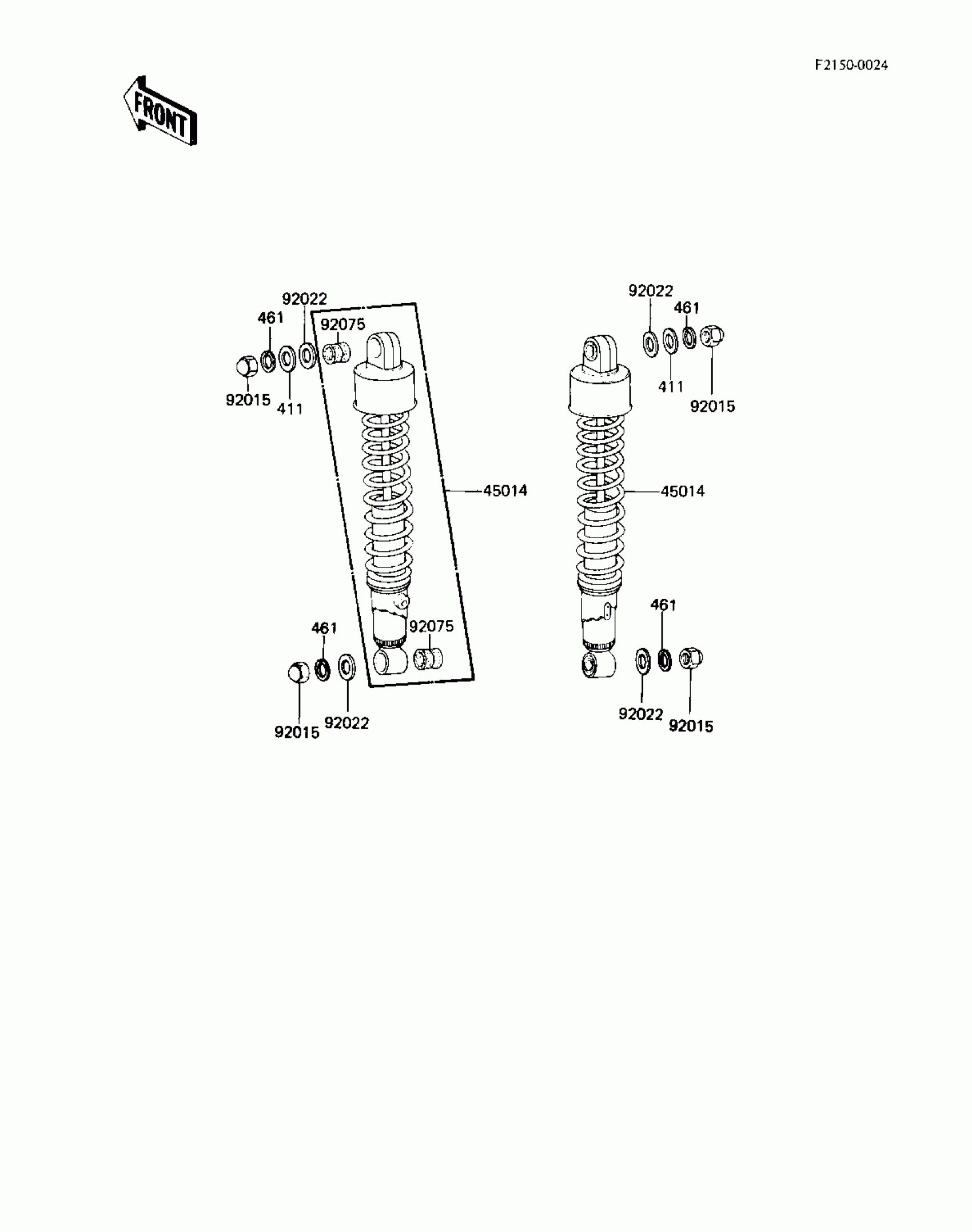

1983 Kawasaki LTD Shaft Shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,RR

45014-1206

1

$380.46

In stock

92015

NUT,CAP,10MM

92020-003

1

$5.16

In stock

92022

WASHER,10.5X26X2.3

92022-044

1

$3.12

In stock

92075

1

$14.14

In stock

411

WASHER-PLAIN,10MM

411B1000

1
Out of stock

461

WASHER SPRING 10MM

461F1000

1
Out of stock
