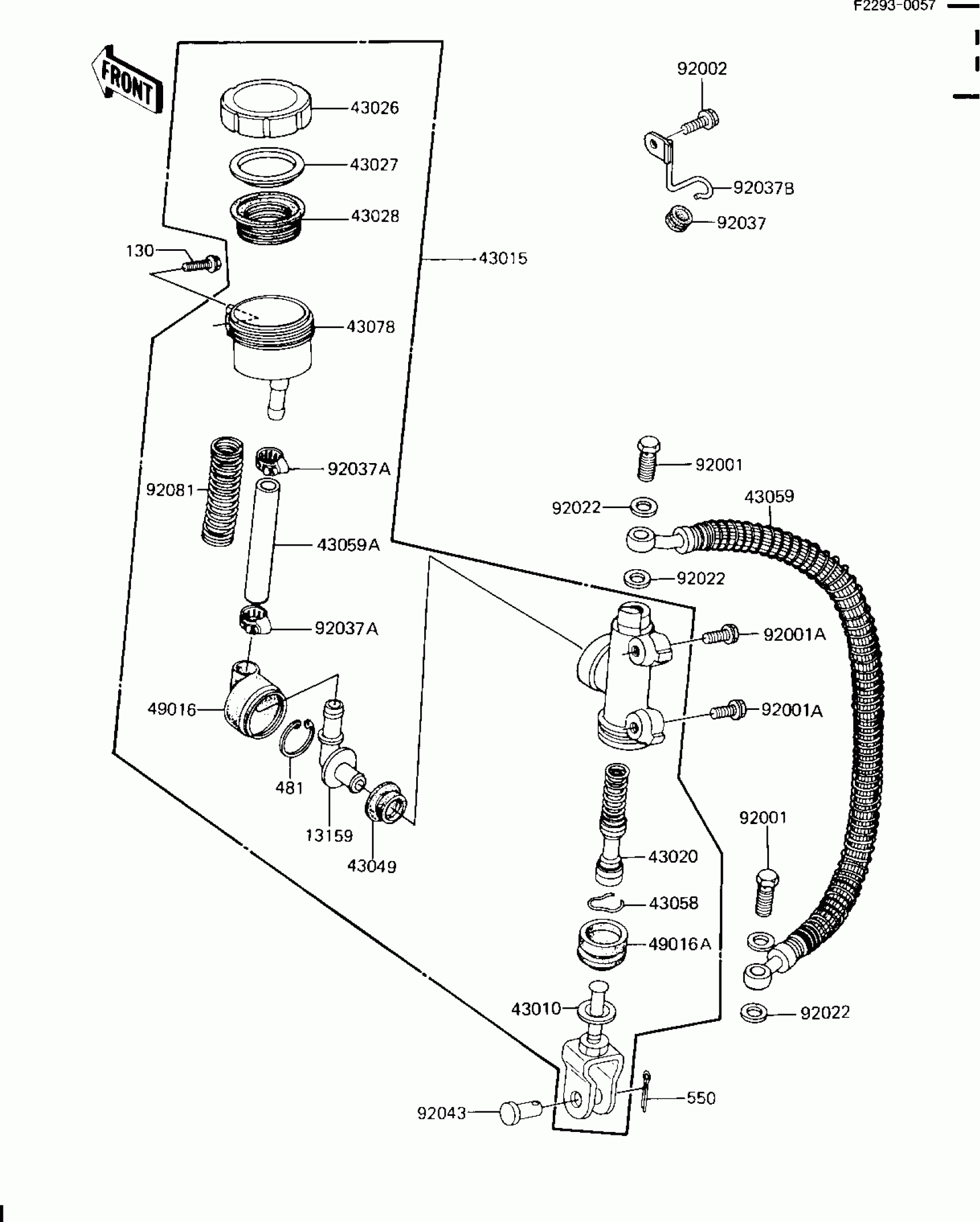

Find the part on the Rear Master Cylinder diagram for your 1985 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki LTD Shaft Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-1009

1
Out of stock

43010

ROD-ASSY-BRAKE,RR

43010-1051

1
Out of stock

43015

CYLINDER-ASSY-MASTER,

43015-1278

1
Out of stock

4302

PISTON-COMP-BRAKE

43020-1035

1
Out of stock

43026

CAP-BRAKE

43026-1016

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1005

1
Out of stock

43028

DIAPHRAGM

43028-1016

1
Out of stock

43049

PACKING

43049-1008

1
Out of stock

43058

RING,ROD STOPPER

43058-004

1
Out of stock

43059

HOSE-BRAKE,RR,L=780

43059-1270

1
Out of stock

43059A

HOSE-BRAKE,L=250

43059-1285

1
Out of stock

43078

RESERVOIR

43078-1008

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1034

1
Out of stock

49016A

COVER-SEAL,BRAKE PISTON

49016-1048

1
Out of stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001A

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92002

BOLT,FLANGED,10X10

92002-1311

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

92037A

CLAMP,BRAKE HOSE

92037-1386

1
Out of stock

92037B

CLAMP

92037-1540

1
Out of stock

92043

PIN,8X16

92043-1013

1
Out of stock

92081

SPRING,HOSE PROTECTOR

92081-1715

1
Out of stock

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

481

CIRCLIP-TYPE-C,25MM

481J2500

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
