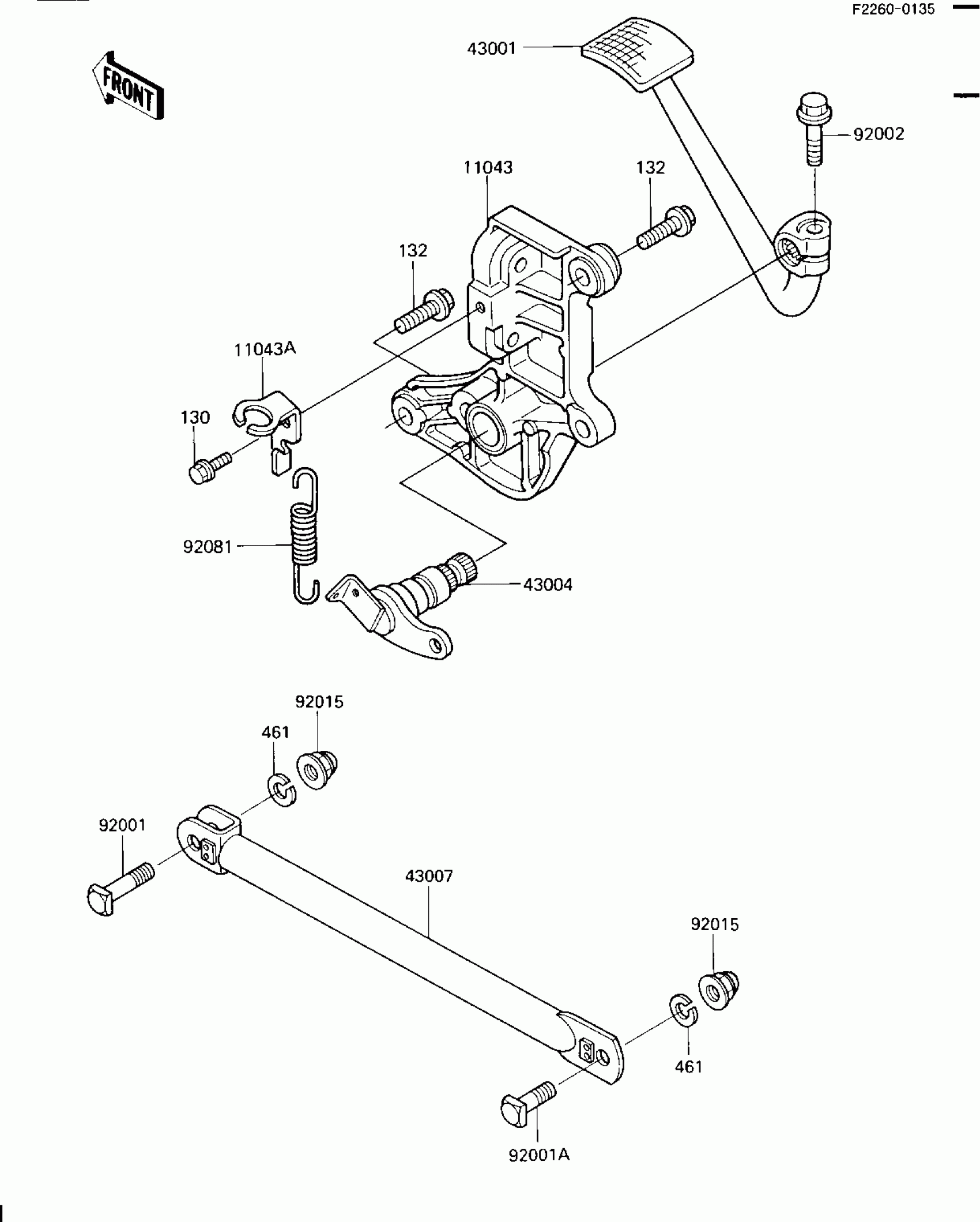

Kawasaki LTD Shaft BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

LEVER-BRAKE,PEDAL

43001-1107

$103.36

43004

SHAFT-BRAKE

43004-1046

$36.27

43007

ROD-TORQUE

43007-1037

$30.62

43011

ROD-BRAKE

43011-1060

$17.93

92001

BOLT,6X25

92001-1090

Unavailable

92001A

BOLT,10X37

92001-1519

$7.49

92001B

BOLT,10X29

92003-096

Unavailable

92015

NUT,BRAKE ROD

92015-042

$4.67

92043

PIN,6X17

92043-064

$3.57

92043A

PIN,BRAKE ROD

92043-065

$4.23

92081

SPRING,BRAKE ROD

43012-001

$3.54

92081A

SPRING,BRAKE PEDAL

92081-1147

Unavailable

130

BOLT-FLANGED,8X25

130G0825

Unavailable

311

NUT 6MM

311B0600

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
