1983 Kawasaki LTD Shaft Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

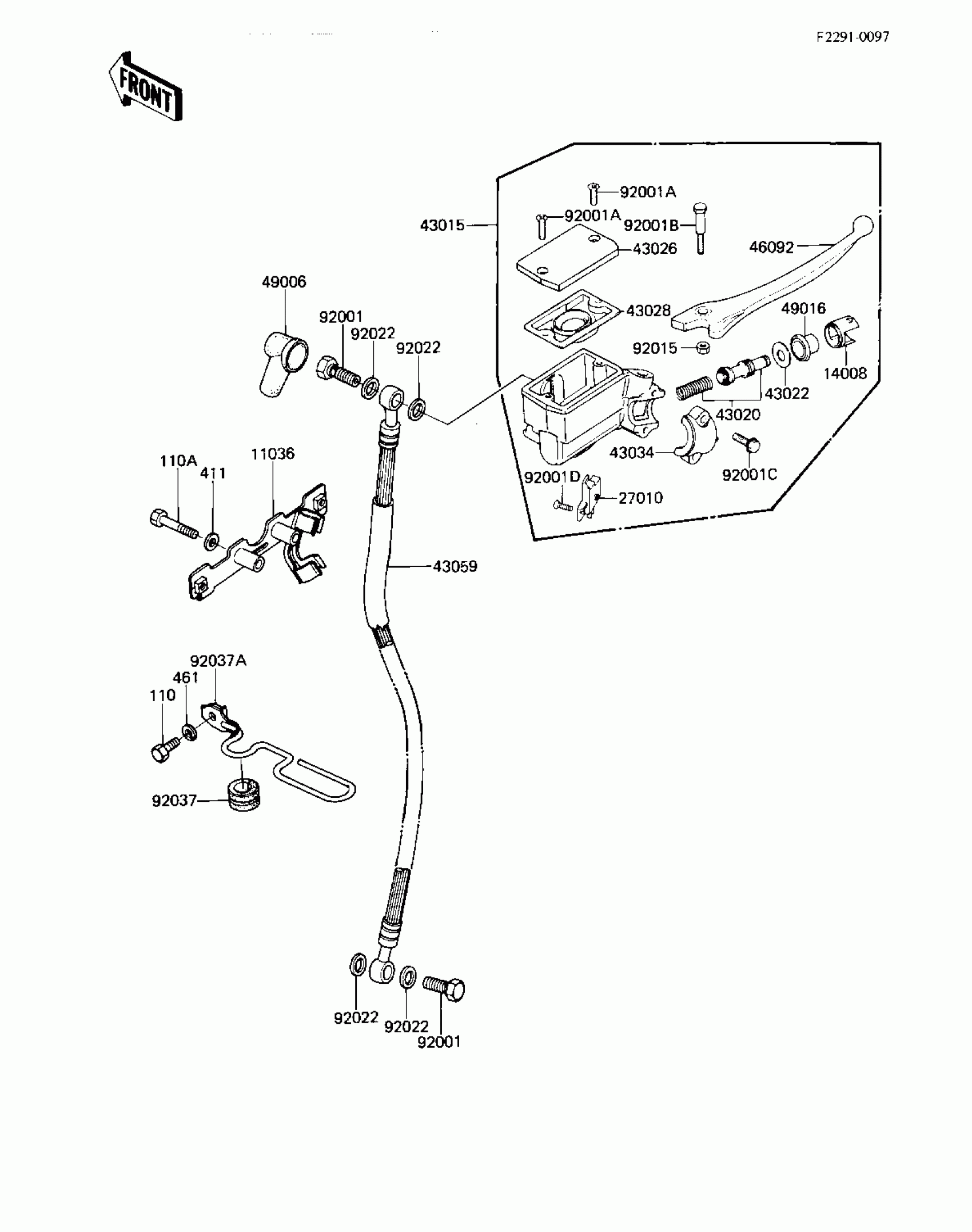

1983 Kawasaki LTD Shaft Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,FORK COVER

11036-1517

1
Out of stock

14008

LINER,PISTON

14008-1035

1
Out of stock

27010

SWITCH,BRAKE

27010-1056

1
Out of stock

43015

1

$247.64

In stock

43020

PISTON-COMP-BRAKE

43020-1033

1
Out of stock

43022

1

$5.20

In stock

43026

CAP-BRAKE,FR

43026-1023

1
Out of stock

43028

1

$25.99

In stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

43059

HOSE-BRAKE,FR,L=1080

43059-1199

1
Out of stock

46092

LEVER-GRIP.FRONT BRAK

46092-1042

1
Out of stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

1

$10.69

In stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001A

1

$4.84

In stock

92001B

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001C

BOLT,6X25,W/WASHER,BLACK

92001-1513

1
Out of stock

92001D

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

92037A

CLAMP,CABLE

92037-1116

1
Out of stock

110

BOLT-UPSET,6X12

112G0612

1
Out of stock

110A

BOLT 6X35

110R0635

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
