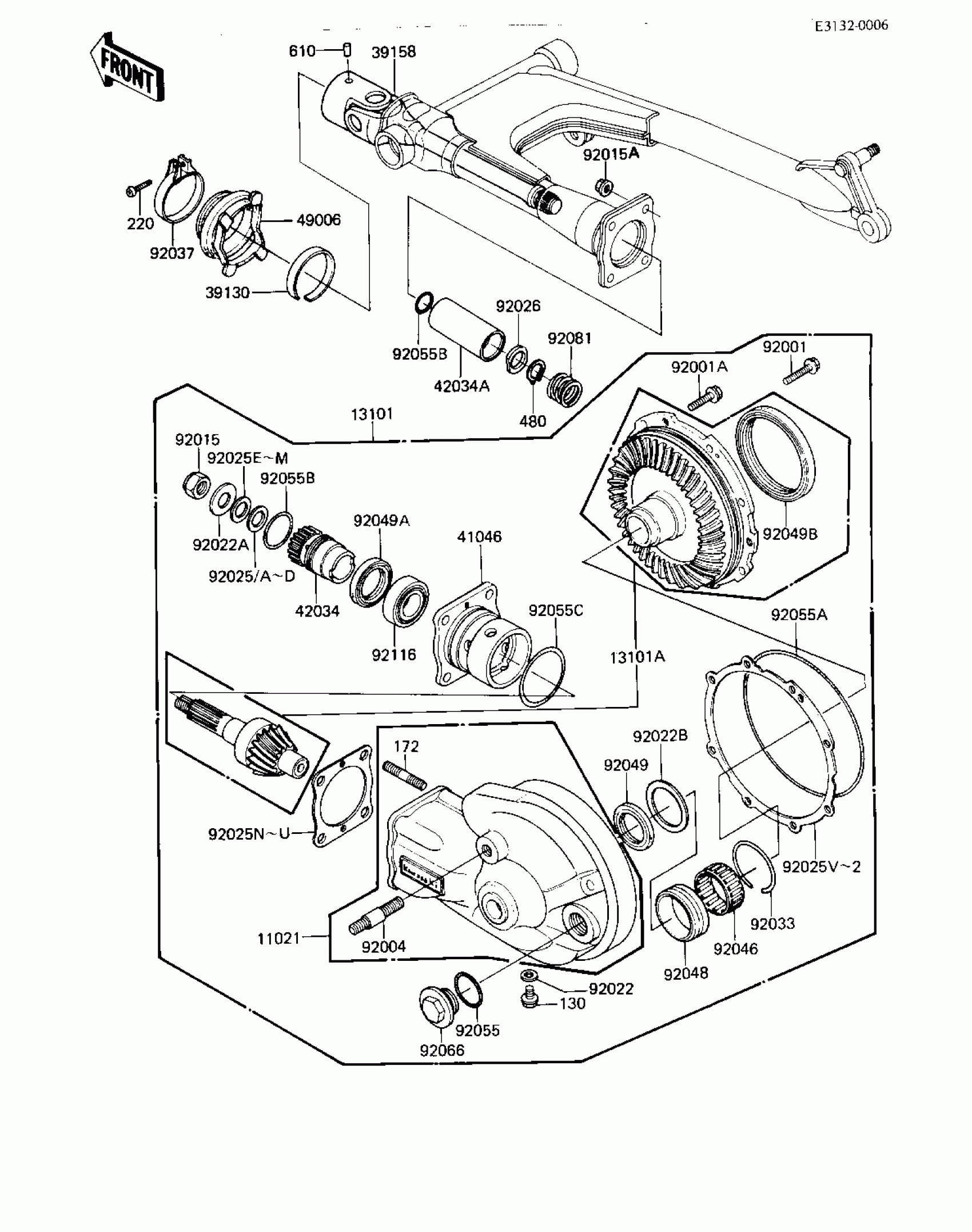

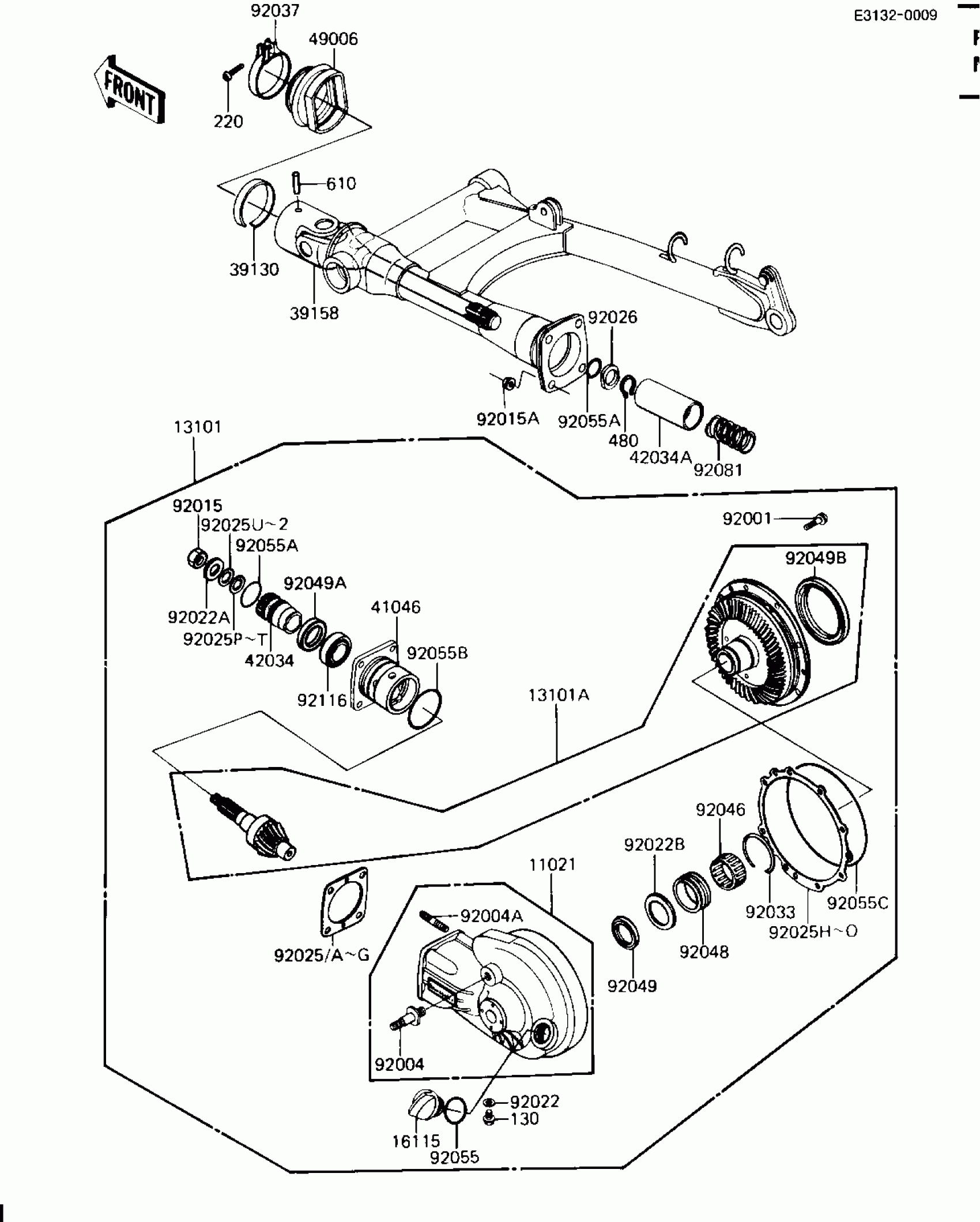

Find the part on the Drive Shaft/final Gears diagram for your 1983 Kawasaki LTD Shaft, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki LTD Shaft Drive Shaft/final Gears Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021

CASE-ASSY,FINAL GEAR,

11021-1015-B9

1
Out of stock

13101

GEAR-ASSY,FINAL,HS SI

13101-1024-B9

1
Out of stock

13101A

GEAR-ASSY,FINAL BEVEL

13101-5035

1
Out of stock

39130

SPRING-LEAF

39130-1002

1
Out of stock

39158

SHAFT-ASSY-DRIVE

39158-1005

1
Out of stock

41046

HOUSING-BEARING

41046-1015

1
Out of stock

42034

COUPLING,DRIVE SHAFT,INNER

42034-1030

1
Out of stock

42034A

COUPLING,DRIVE SHAFT,OUTER

42034-1031

1
Out of stock

49006

BOOT,PROPELLER SHAFT

49006-1059

1
Out of stock

92001

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92001A

BOLT,FLANGED,8X25

92001-1324

1
Out of stock

92004

STUD,RR SHOCKABSORBER

92004-1047

1
Out of stock

92015

NUT,12MM

92015-1182

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92022A

WASHER,12.3X25X3.2

92022-1293

1
Out of stock

92022B

WASHER,39X49.5X1

92022-1294

1
Out of stock

92025

SHIM,12.5X17X1.30

92025-1282

—
Out of stock

92025A

SHIM,12.5X17X1.32

92025-1283

—
Out of stock

92025B

SHIM,12.5X17X1.34

92025-1284

—
Out of stock

92025C

SHIM,12.5X17X1.36

92025-1285

—
Out of stock

92025D

SHIM,12.5X17X1.38

92025-1286

—
Out of stock

92025E

SHIM,12.5X17X0.1

92025-1287

—
Out of stock

92025F

SHIM,12.5X17X0.2

92025-1288

—
Out of stock

92025G

SHIM,12.5X17X0.3

92025-1289

—
Out of stock

92025H

SHIM,12.5X17X0.5

92025-1290

—
Out of stock

92025I

SHIM,12.5X17X0.6

92025-1291

—
Out of stock

92025J

SHIM,12.5X17X0.7

92025-1292

—
Out of stock

92025K

SHIM,12.5X17X0.8

92025-1293

—
Out of stock

92025L

SHIM,12.5X17X0.9

92025-1294

—
Out of stock

92025M

SHIM,12.5X17X1.0

92025-1295

—
Out of stock

92025N

SHIM,T=0.15

92025-1312

—
Out of stock

920250

SHIM,T=0.5

92025-1313

—
Out of stock

92025P

SHIM,T=0.6

92025-1314

—
Out of stock

92025Q

SHIM,T=0.7

92025-1315

—
Out of stock

92025R

SHIM,T=0.8

92025-1316

—
Out of stock

92025S

SHIM,T=0.9

92025-1317

—
Out of stock

92025T

SHIM,T=1.0

92025-1318

—
Out of stock

92025U

SHIM,T=1.2

92025-1319

—
Out of stock

92025V

SHIM,T=0.15

92025-1336

—
Out of stock

92025W

SHIM,T=0.5

92025-1337

—
Out of stock

92025X

SHIM,T=0.6

92025-1338

—
Out of stock

92025Y

SHIM,T=0.7

92025-1339

—
Out of stock

92025Z

SHIM,T=0.8

92025-1340

—
Out of stock

920250

SHIM,T=0.9

92025-1341

—
Out of stock

920251

SHIM,T=1.0

92025-1342

—
Out of stock

920252

SHIM,T=1.2

92025-1343

—
Out of stock

92026

SPACER,DRIVE SHAFT

92026-1106

1
Out of stock

92033

RING-SNAP,52MM

92033-1074

1
Out of stock

92037

CLAMP,BOOT FITTING

92037-1112

1
Out of stock

92046

BRG,NDL,KT384620EG-B2

92046-1037

1
Out of stock

92048

RACE,ORT465021E01

92048-1019

1
Out of stock

92049

OIL SEAL,SC32435.5

92049-1027

1
Out of stock

92049A

SEAL-OIL,SC28438

92049-1084

1
Out of stock

92049B

SEAL-OIL,SC759510

92049-1085

1
Out of stock

92055

RING-O,36MM

92055-1005

1
Out of stock

92055A

RING-O,ID=150.4

92055-1039

1
Out of stock

92055B

RING-O,27MM

92055-1119

1
Out of stock

92055C

RING-O,55MM

92055-1120

1
Out of stock

92066

PLUG,OIL FILLER CAP,M.SILVER

92066-1006-7J

1
Out of stock

92081

SPRING,DRIVE SHAFT

92081-1427

1
Out of stock

92116

BEARING-ROLLER,4T32004X

92116-1010

1
Out of stock

130

BOLT-FLANGED,8X12

130B0812

1
Out of stock

172

BOLT-STUD,8X30

172G0830

1
Out of stock

220

SCREW-PAN-CROS

220B0430

1
Out of stock

480

CIRCLIP-TYPE-C,20MM

480J2000

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
