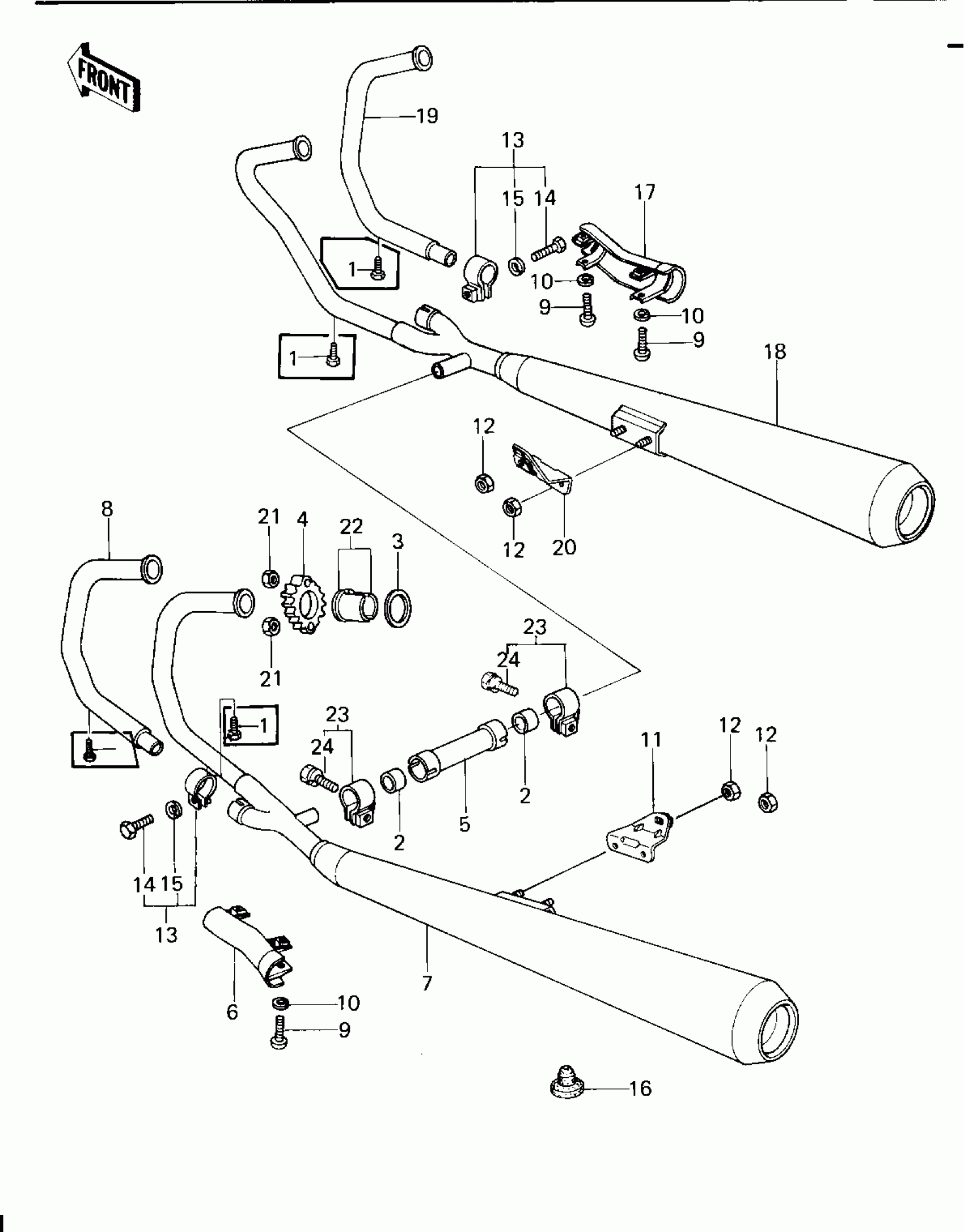

Kawasaki LTD MUFFLERS Diagram

#

Description
Price

1

BOLT (6X10)

110R0610

Unavailable

2

GASKET,MUFFLER CONNEC

11060-1051

$22.91

3

GASKET,EXHAUST PIPE H

11009-1866

$6.55

4

HOLDER,EXHAUST PIPE

18069-1006

$24.29

5

PIPE,MUFFLER CONNECT1

32032-1671

Unavailable

6

COVER,MUFFLER,L.H.

14025-1029

Unavailable

7

MUFFLER ASSY,L.H

18001-1035

$325.08

8

PIPE,EXHAUST,#2

18049-1036

$102.44

9

SCREW PAN HEAD 6X40

220B0640

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

BRACKET,MUFFLER,L.H.

32069-1041

$22.71

12

NUT,LOCK,8MM

92017-013

$8.22

13

CLAMP,EXHAUST PIPE

92037-1224

$11.69

14

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

DAMPER

92075-1002

$5.42

17

COVER,MUFFLER,R.H.

14025-1030

Unavailable

18

MUFFLER,R.H.

18001-1025

$757.56

19

PIPE,EXHAUST,#4

18049-1038

$109.56

20

BRACKET,MUFFLER,R.H.

32069-1042

$19.81

21

NUT,LOCK 6MM

92017-014

$5.98

22

COLLAR,EXHAUST PIPE

92027-264

$3.75

23

CLAMP,PIPE,35MM

92037-1223

Unavailable

24

BOLT,8X30

92001-1379

Unavailable
