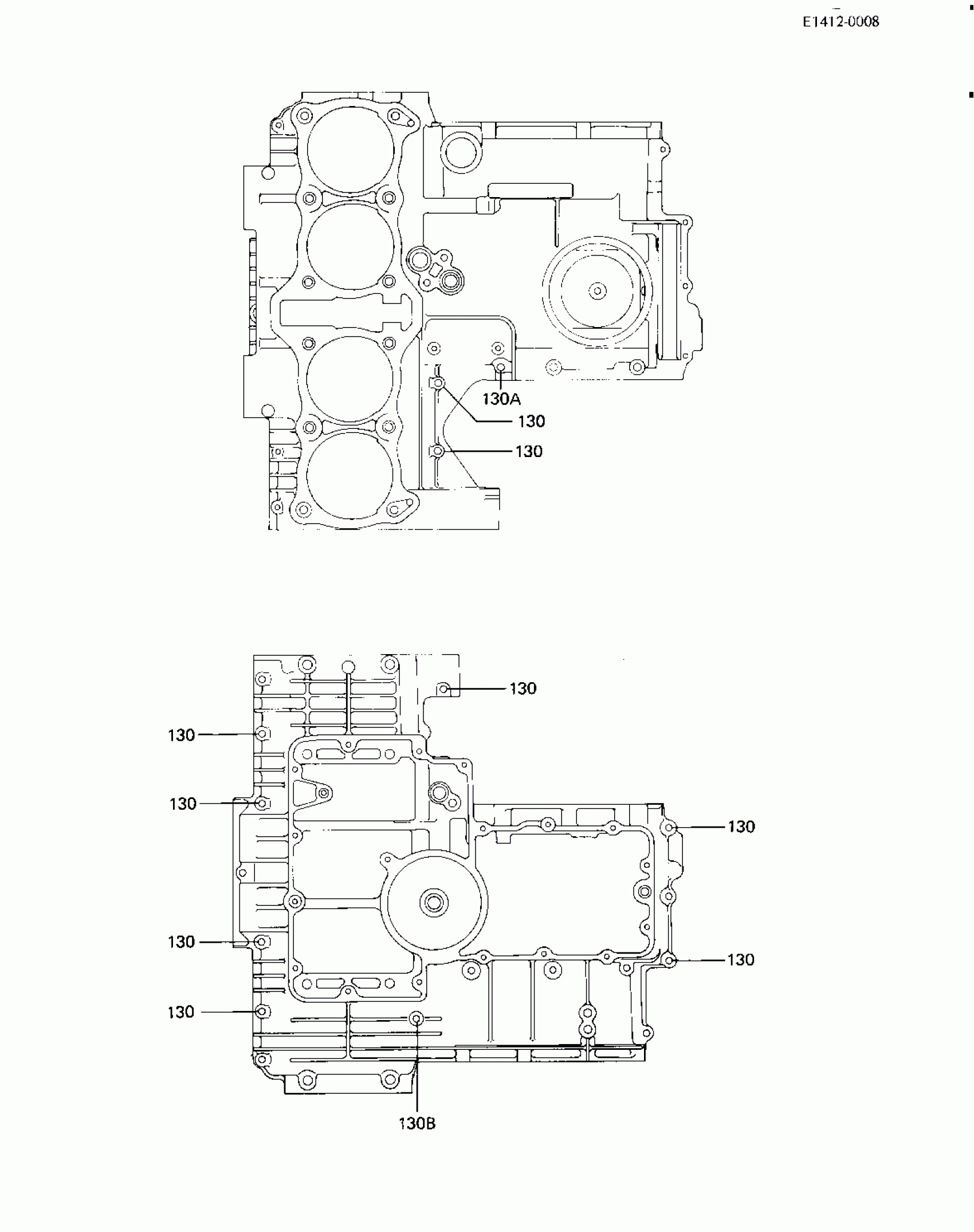

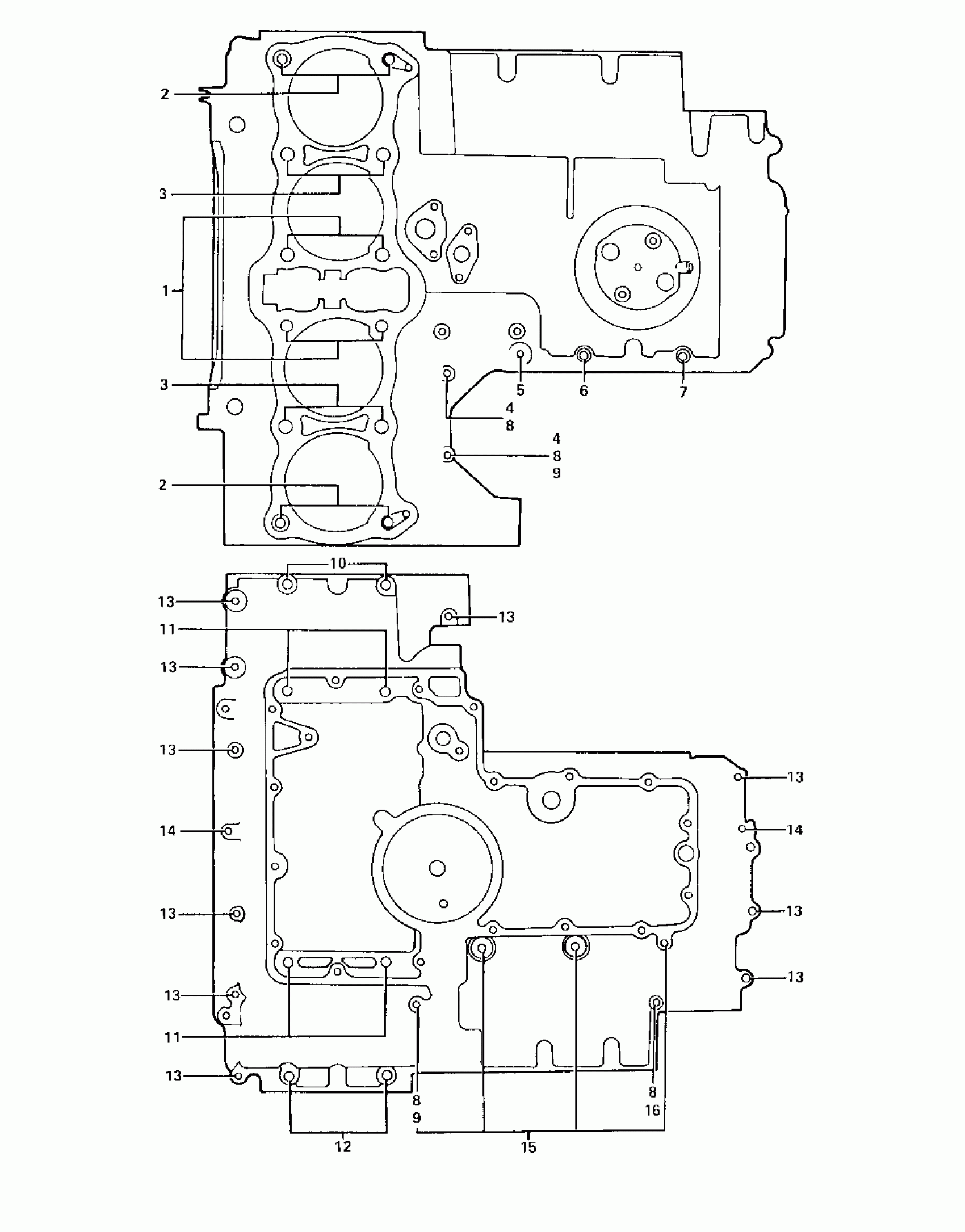

Kawasaki LTD CRANKCASE BOLT & STUD PATTERN Diagram

#

Description
Price

1

STUD,10X167

92004-1002

$14.39

1

STUD,10X133

92004-1004

$15.71

2

STUD,10X158

92004-1003

$14.39

2

STUD,10X158

92004-1003

$14.39

3

STUD,10X133

92004-1004

$15.71

3

STUD,10X167

92004-1002

$14.39

4

BOLT,HEX HEAD,6X41

92003-109

Unavailable

5

BOLT,HEX HEAD,6X54

92003-110

$4.42

6

BOLT,HEX HEAD,6X99

92003-111

$3.32

7

BOLT,HEX HEAD,6X116

92003-113

$4.39

8

CLAMP,WIRING HARNESS

21126-008

$3.60

9

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

10

BOLT-FLANGED,8X95

130P0895

Unavailable

11

BOLT,HEX HEAD,8X72

92003-107

Unavailable

12

BOLT,HEX HEAD,8X81

92003-108

$5.81

13

BOLT,HEX HEAD,6X41

92003-109

Unavailable

14

BOLT,HEX HEAD,6X54

92003-110

$4.42

15

BOLT-FLANGED,6X95

130G0695

Unavailable

16

BOLT-FLANGED,6X70

130G0670

Unavailable
