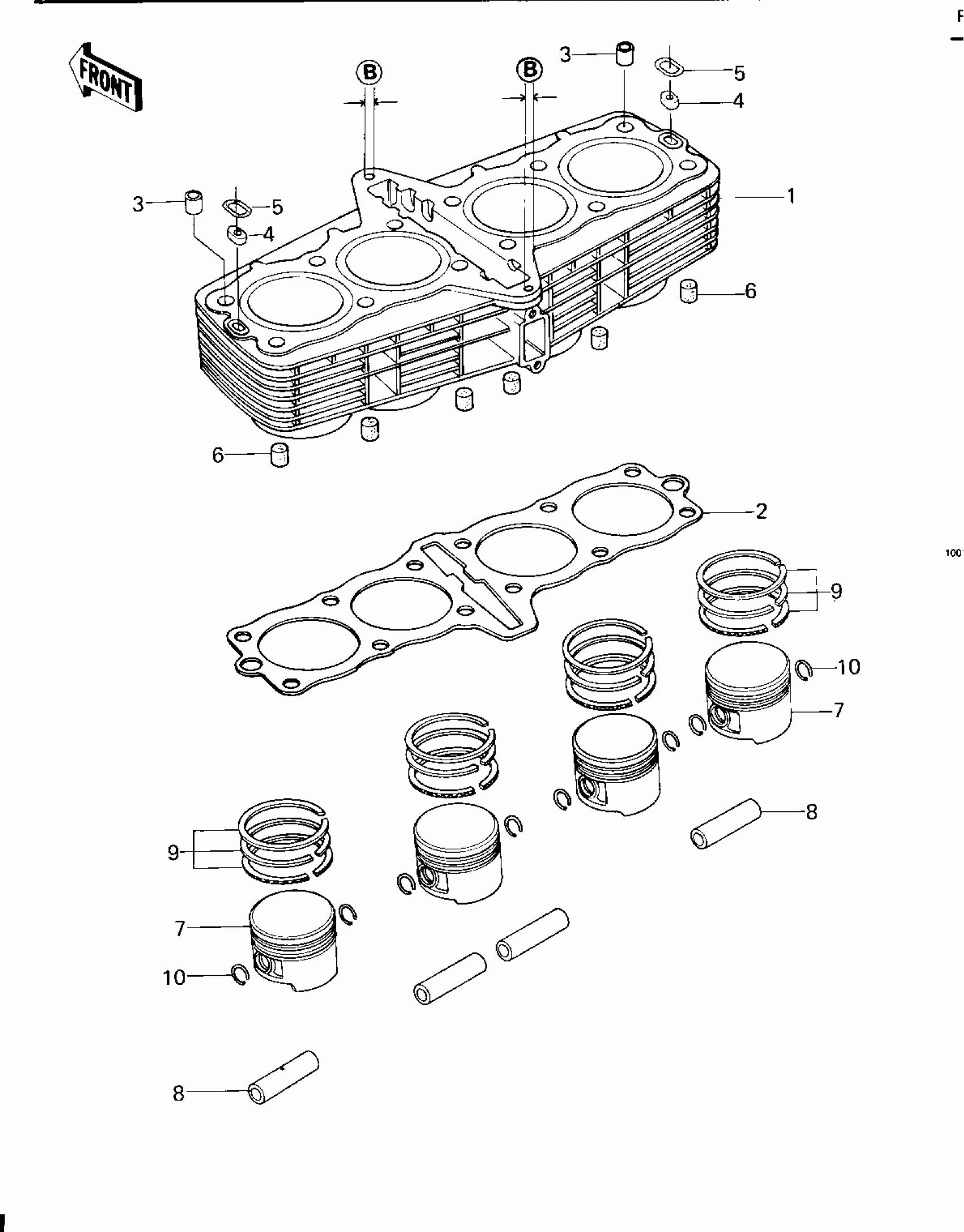

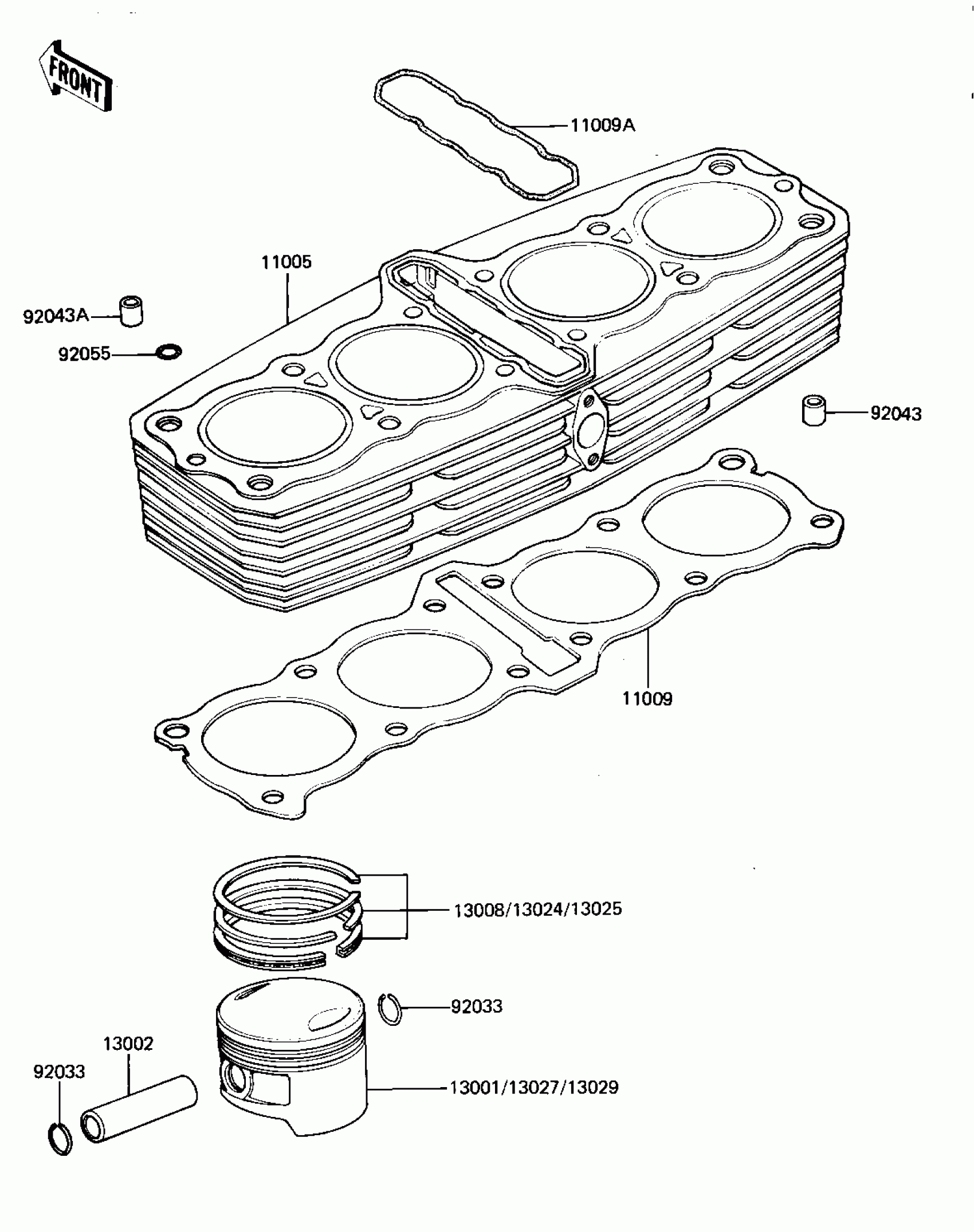

Kawasaki LTD CYLINDER/PISTONS Diagram

#

Description
Price

1

CYLINDER

11005-1039

Unavailable

1

CYLINDER

11005-1077

Unavailable

2

GASKET

11060-1362

Unavailable

3

PIN,11X14X12.3

92043-1266

$1.00

4

PIN,OIL LINE

92043-1210

$6.06

5

RING-O,CYLINDER OIL LINE PIN

92055-1147

$7.84

6

PLUG,DAMPER

92066-1016

Unavailable

7

PISTON,STD

13001-1002

Unavailable

7

PISTON,0.020",O.S.

13029-077

Unavailable

7

PISTON,0.040",O.S.

13027-069

Unavailable

8

PIN-PISTON

13002-032

Unavailable

9

RING SET,PISTON,STD

13008-059

$144.12

9

RING SET,0.020",O.S.

13025-061

Unavailable

9

RING SET,0.040",O.S.

13024-060

$114.49

10

RING-SNAP

92036-005

$3.24
