1980 Kawasaki LTD II Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1980 Kawasaki LTD II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

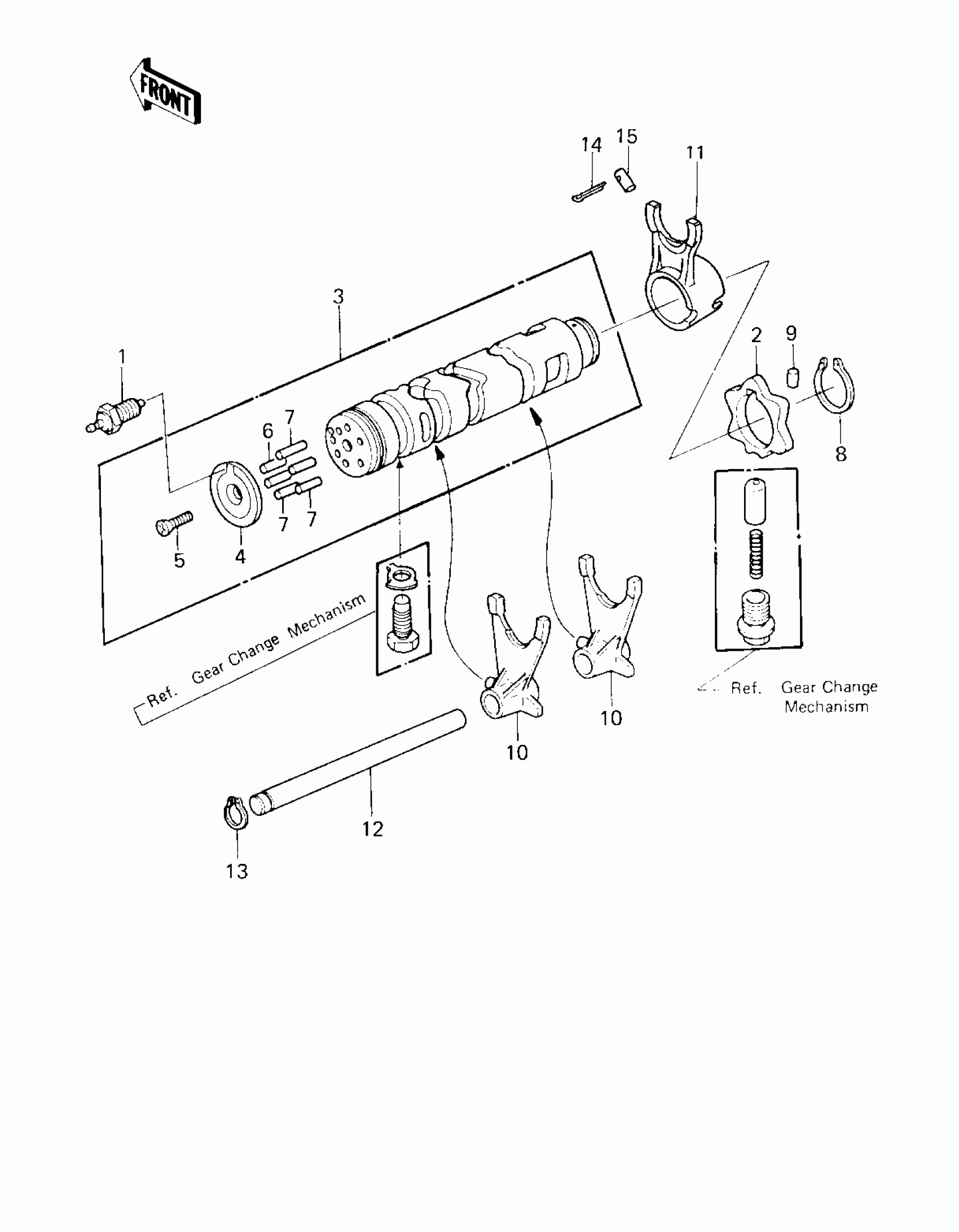

1980 Kawasaki LTD II Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH,NEUTRAL

13151-5002

1
Out of stock

2

CAM-CHANGE DRUM

13145-1058

1

$22.71

In stock

3

DRUM ASSY,GEAR SHIFT

13239-1017

1
Out of stock

4

1

$24.63

In stock

5

1

$1.98

In stock

6

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

7

PIN,DOWEL,4X13.8

92042-030

1

$3.12

In stock

8

1

$4.93

In stock

9

ROLLER,4X6

610A0406

1

$3.43

In stock

10

1

$120.23

In stock

11

FORK-SHIFT,4TH&TOP

13140-1009

1

$120.23

In stock

12

ROD-SHIFT

49047-5003

1

$22.90

In stock

13

1

$0.67

In stock

14

1

$1.53

In stock

15

PIN,DOWEL,8X18

92042-021

1

$9.12

In stock
