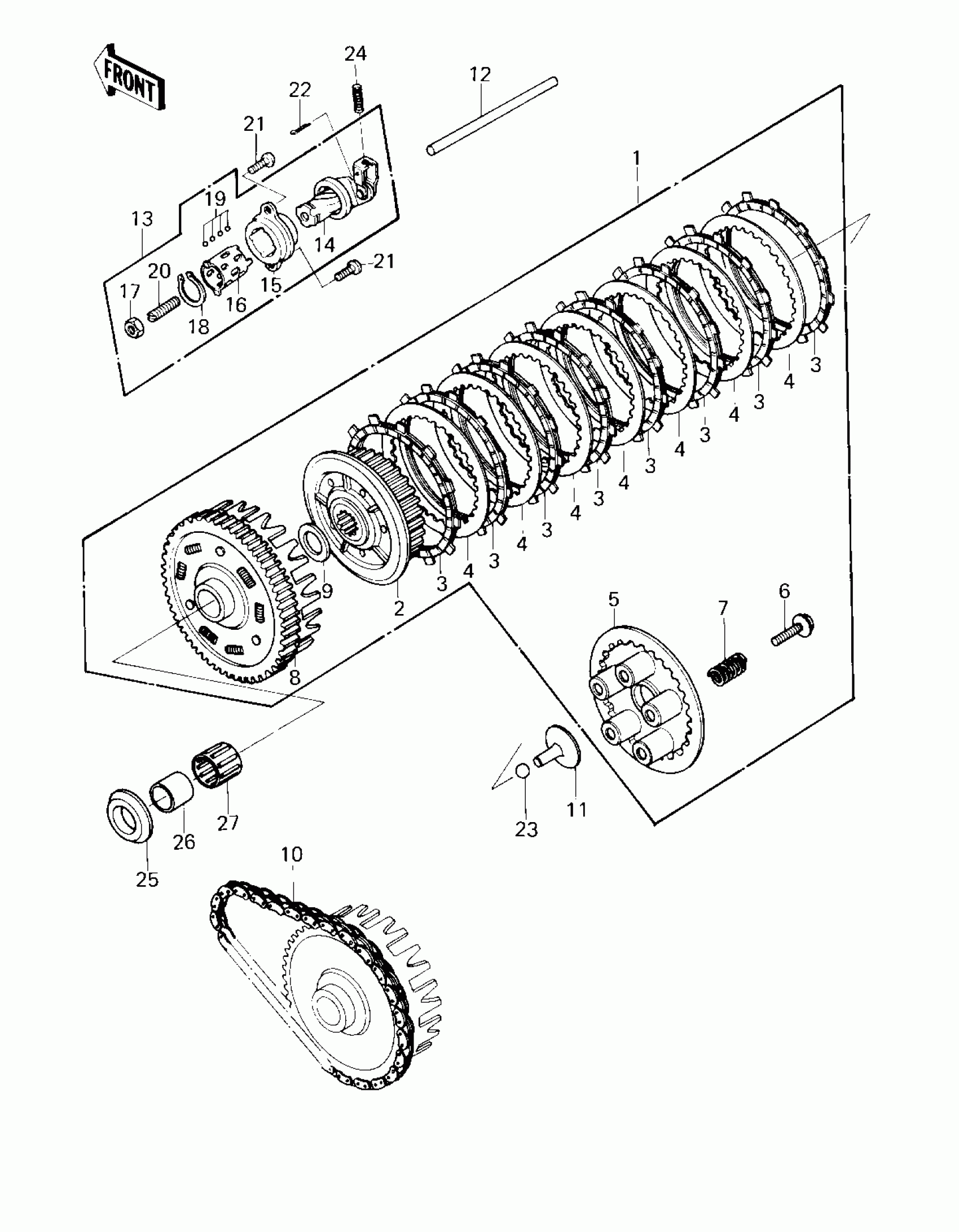

Kawasaki LTD II CLUTCH Diagram

#

Description
Price

1

CLUTCH-ASSY

13081-1006

Unavailable

2

HUB-CLUTCH

13087-042

Unavailable

3

PLATE-FRICTION

13088-040

$9.55

4

PLATE-CLUTCH

13089-027

$9.73

5

PLATE,CLUTCH SPRING

13187-008

Unavailable

6

BOLT,FLANGED,6X18

92001-1066

$4.67

7

SPRING,CLUTCH

92081-1033

$5.64

8

HOUSING,CLUTCH

13095-050

Unavailable

9

SPACER,25.5X47X2.5

92026-022

$9.58

10

CHAIN,PRIMARY

13122-008

Unavailable

11

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

12

ROD,CLUTCH PUSH

13116-035

Unavailable

13

RELEASE ASSY,CLUTCH

13231-014

Unavailable

14

INNER,CLUTCH RELEASE

13102-019

Unavailable

15

OUTER,CLUTCH RELEASE

13118-011

Unavailable

16

RETAINER

13197-004

Unavailable

17

NUT-HEX-SMALL,8MM

318B0800

$0.54

18

CIRCLIP-TYPE-C,15MM

480J1500

$1.60

19

BALL,STEEL,1/8"

600A0400

$1.66

20

SCREW,SLOTTED,8X25

92014-014

Unavailable

21

SCREW-PAN-CROS,6X16

220B0616

Unavailable

22

PIN-COTTER,1.6X15

550D1615

$1.80

23

BALL-STEEL,3/8"

600A1200

$1.14

24

SPRING,CLUTCH RELEASE

92081-069

$5.74

25

SPACER

92026-123

Unavailable

26

BUSHING,25X32X23.6

92028-178

$23.53

27

BEARING-NEEDLE,KTV323723

92046-028

$19.92
