1980 Kawasaki LTD Belt Stands Diagram

← All diagrams

Find the part on the Stands diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

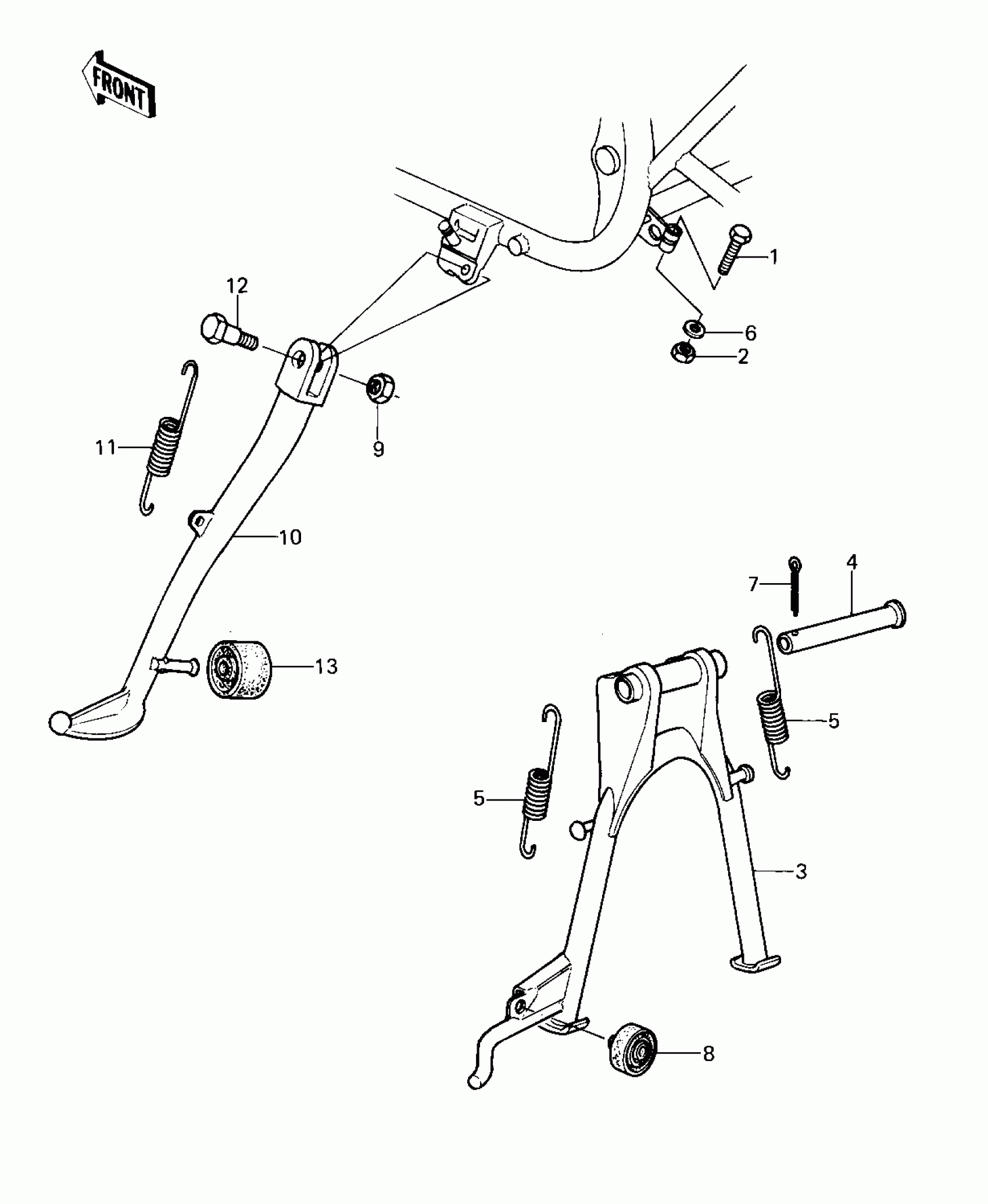

1980 Kawasaki LTD Belt Stands Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

92001-1578

1

$6.81

In stock

2

NUT,8MM

311B0800

1
Out of stock

3

STAND-MAIN

34011-1022

1
Out of stock

4

SHAFT-STAND,CNT

34019-015

1

$16.32

In stock

5

SPRING,STAND

34025-005

1

$6.03

In stock

6

WASHER PLAIN 8MM

410B0800

1
Out of stock

7

1

$2.08

In stock

8

DAMPER

92075-015

1

$3.97

In stock

9

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

10

STAND-SIDE

34024-1036

1

$149.07

In stock

11

SPRING,STAND

34025-005

1

$6.03

In stock

12

BOLT,SIDE STAND

92003-079

1
Out of stock

13

1

$23.47

In stock
