1980 Kawasaki LTD Belt Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

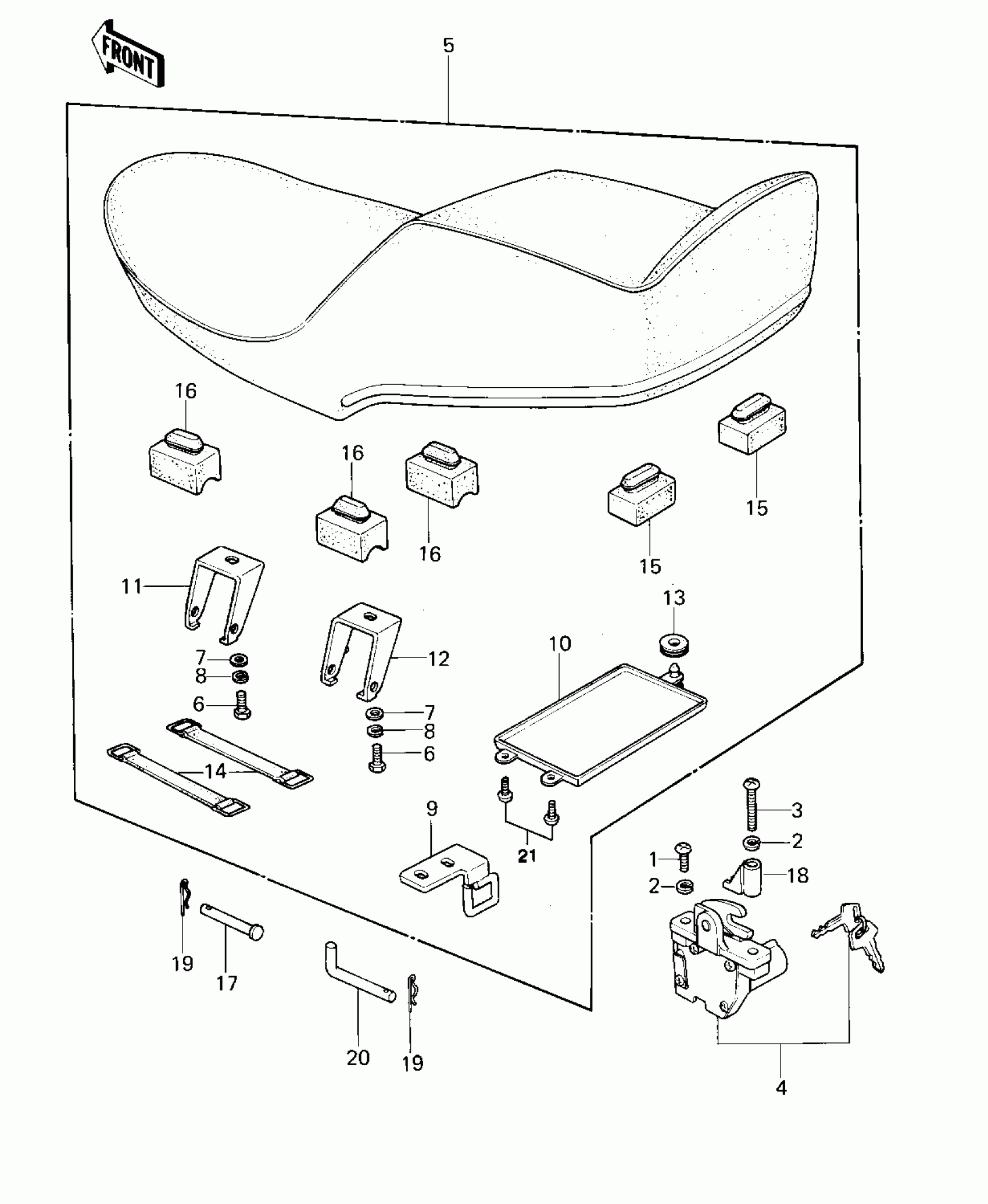

1980 Kawasaki LTD Belt Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

1

$1.44

In stock

4

LOCK-ASSY,SEAT&HELMET

27016-5028

1
Out of stock

5

SEAT-ASSY,DUAL

53001-1124

1

$477.22

In stock

6

BOLT-UPSET 6X14

112B0614

1
Out of stock

7

WASHER PLAIN 6MM

411B0600

1
Out of stock

8

WASHER SPRING 6MM

461F0600

1
Out of stock

9

HOOK,SEAT

27012-1011

1
Out of stock

10

CASE,MANUAL

32099-011

1

$15.71

In stock

11

HINGE, REAR

53009-026

1

$15.68

In stock

12

HINGE,SEAT

53009-1017

1

$11.24

In stock

13

GROMMET

92071-056

1

$3.39

In stock

14

BAND,L=64

92072-1006

1

$12.78

In stock

15

DAMPER

92075-099

1

$4.37

In stock

16

DAMPER RUBBER-SEAT

92075-156

1
Out of stock

17

1

$4.61

In stock

18

GUARD,SEAT LOCK

55020-1031

1
Out of stock

19

PIN,SNAP

554A0600

1
Out of stock

20

PIN,SEAT PIVOT

92043-1064

1
Out of stock

21

SCREW,TAPPING,5X8

92009-1043

1
Out of stock
