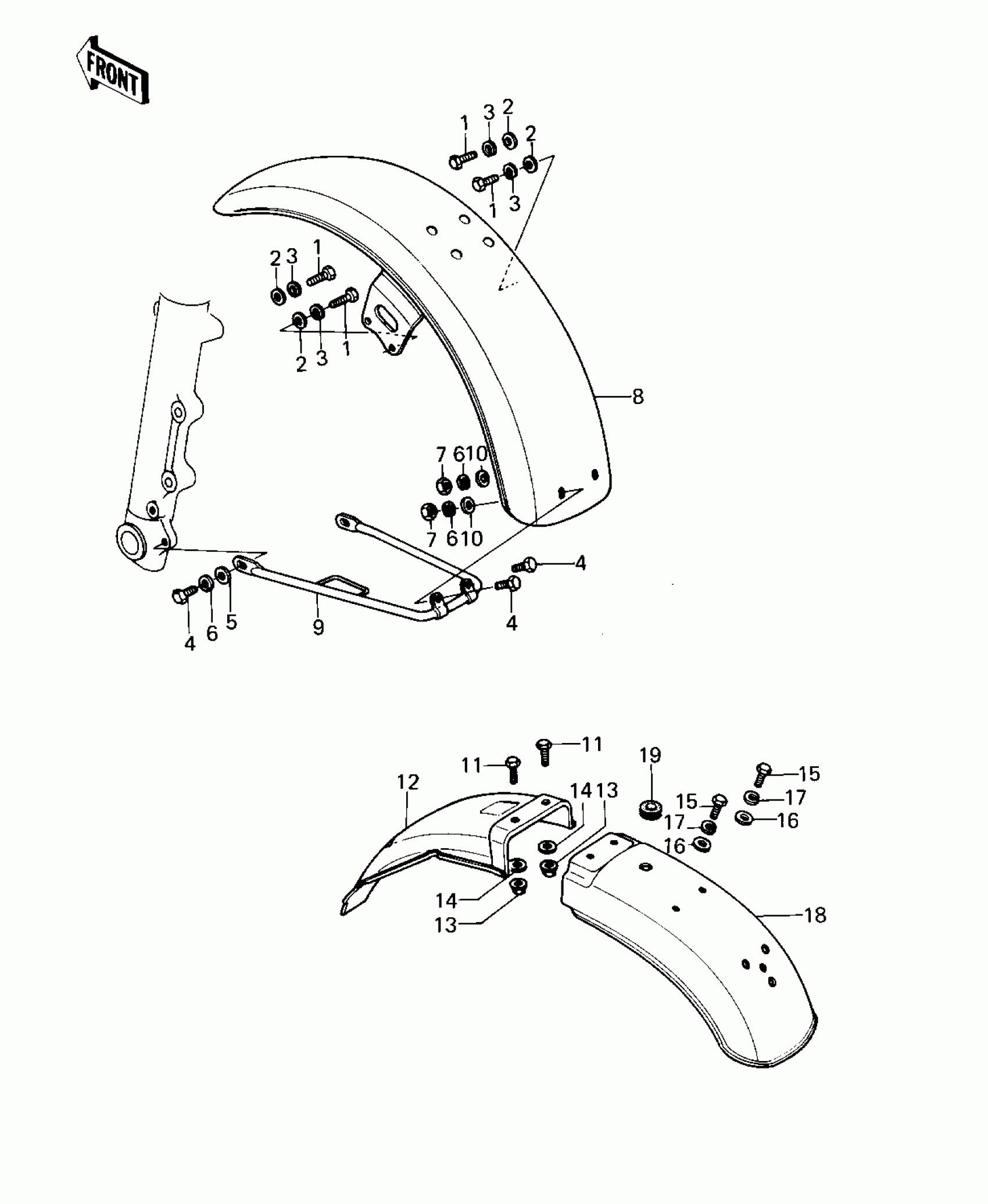

Kawasaki LTD Belt FENDERS ('80 D1) Diagram

#

Description
Price

1

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

2

WASHER PLAIN 8MM

410B0800

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

BOLT-UPSET 6X14

112B0614

$1.49

5

WASHER PLAIN 6MM

411B0600

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

NUT 6MM

311B0600

Unavailable

8

FENDER-FR

35001-5014

$357.59

9

STAY,FRONT FENDER

35011-1005

$98.41

10

WASHER PLAIN

92022-024

$3.65

11

BOLT-UPSET,6X16

112G0616

Unavailable

12

FENDER-RR

35022-1034

$51.34

13

NUT,FLANGED,6MM

92015-1078

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.02

15

BOLT-UPSET 6X14

112B0614

$1.49

16

WASHER PLAIN 6MM

411B0600

Unavailable

17

WASHER SPRING 6MM

461F0600

Unavailable

18

FENDER-RR

35022-1035

$116.91

19

GROMMET,10MM

92071-019

$3.89
