1980 Kawasaki LTD Belt Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

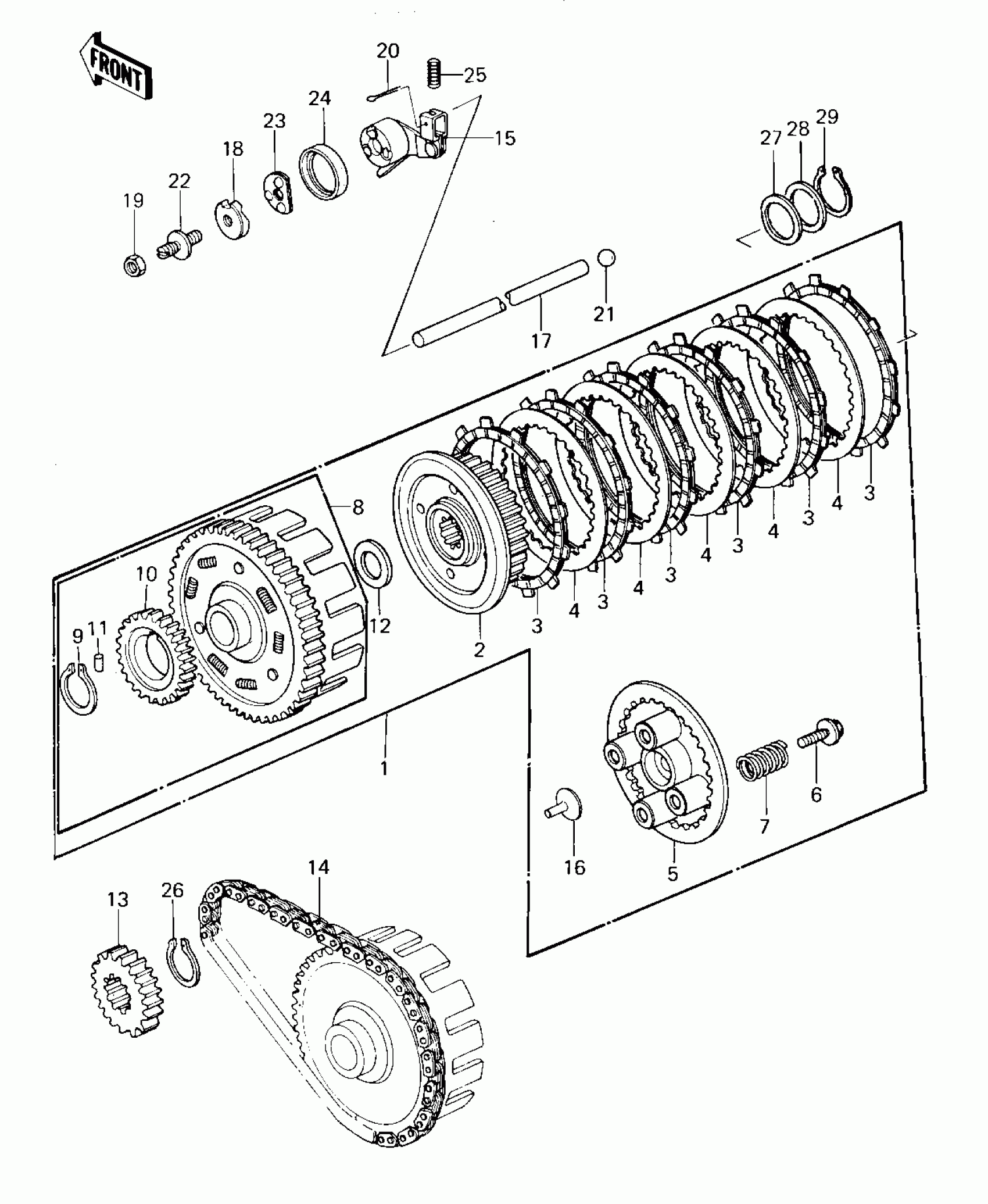

1980 Kawasaki LTD Belt Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1019

1
Out of stock

2

HUB,CLUTCH

13087-040

1
Out of stock

3

PLATE,FRICTION

13088-1001

1
Out of stock

4

PLATE-CLUTCH,T=2.0

13089-026

1

$10.14

In stock

5

PLATE,CLUTCH SPRING

13187-1003

1
Out of stock

6

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

7

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

8

HOUSING,CLUTCH

13095-1008

1
Out of stock

9

CIRCLIP, 38MM

480J3800

1

$4.75

In stock

10

GEAR,OIL PUMP,34T

59051-1001

1

$50.29

In stock

11

PIN, DOWELL, 6X6

610A0606

1

$2.10

In stock

12

WASHER,CLUTCH THRUST

92022-288

1
Out of stock

13

SPROCKET,PRIMARY

13121-030

1
Out of stock

14

CHAIN,PRIMARY DRIVE

13122-005

1
Out of stock

15

RELEASE, CLUTCH

13102-1004

1
Out of stock

16

PUSHER,CLTCH SPRG PLT

13116-029

1
Out of stock

17

ROD,PUSH,CLUTCH

13116-1017

1
Out of stock

18

CAM-RELEASE,CLUTCH

13119-1003

1

$15.92

In stock

19

1

$0.63

In stock

20

1

$2.08

In stock

21

BALL-STEEL,3/8"

600A1200

1

$1.32

In stock

22

SCREW,8MM

92009-1009

1
Out of stock

23

BEARING,BALL,CLUTCH

92045-1001

1

$9.19

In stock

24

SEAL-OIL,CLUTCH RELEASE

92049-1003

1
Out of stock

25

SPRING,CLUTCH RETURN

92081-1058

1
Out of stock

26

1

$4.93

In stock

27

WASHER,25.3X32X0.5

92022-225

1
Out of stock

28

WASHER,CLUTCH TRUST

92022-302

1
Out of stock

29

1

$4.98

In stock
