1980 Kawasaki LTD Belt Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1980 Kawasaki LTD Belt, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

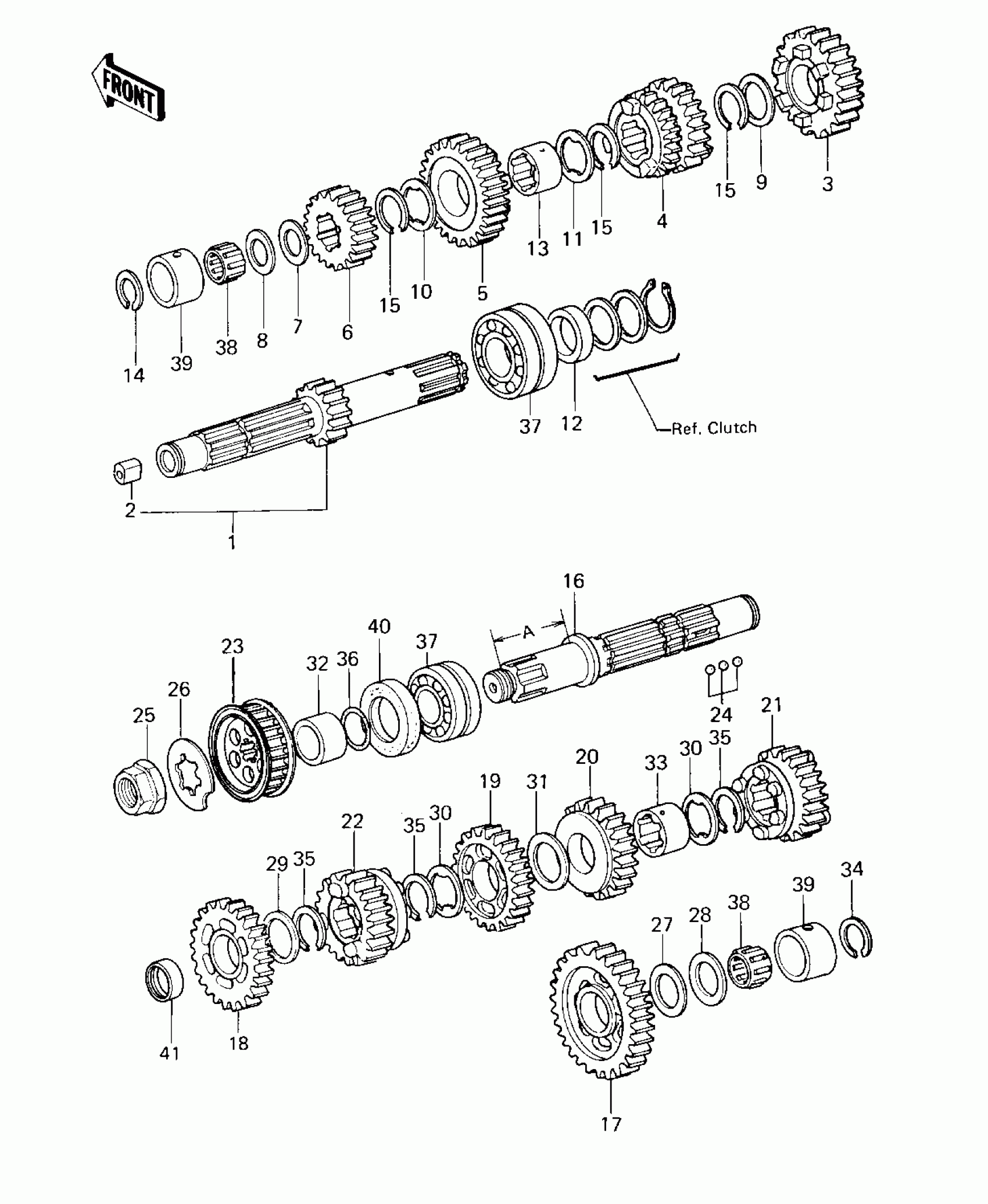

1980 Kawasaki LTD Belt Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE,13T

13127-1004

1
Out of stock

2

BUSHING,DRIVE SHAFT

92028-155

1
Out of stock

3

GEAR,INPUT5TH,23T

13129-1277

1
Out of stock

4

3RD-4TH GEAR,DRV SHFT

13129-1054

1
Out of stock

5

TOP GEAR,DRV SHAFT

13129-1055

1
Out of stock

6

2ND GEAR,DRV SHAFT

13129-1062

1
Out of stock

7

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

8

WASHER,20.5X30X0.5,STEEL

92022-144

—
Out of stock

9

WASHER,25.3X30X0.5

92022-159

1
Out of stock

10

WASHER,TOOTHED,25.5X32X1

92024-033

1
Out of stock

11

WASHER,TOOTHED,22.5X31X0.5

92024-038

1
Out of stock

12

COLLAR

92027-289

1
Out of stock

13

BUSHING,OUTPUT 3RD GR

92028-1002

1
Out of stock

14

RING-SNAP,20MM

92033-015

1
Out of stock

15

RING-SNAP,24MM

92033-026

1
Out of stock

16

SHAFT,OUTPUT

13128-1015

1
Out of stock

17

LOW GEAR,OUTPUT SHAFT

13129-1056

1
Out of stock

18

2ND GEAR,OUTPUT,28T

13129-1172

1
Out of stock

19

3RD GEAR,OUTPUT SHAFT

13129-1058

1
Out of stock

20

4TH GEAR,OUTPUT SHAFT

13129-1059

1
Out of stock

21

5TH GEAR,OUTPUT SHAFT

13129-1060

1
Out of stock

22

TOP GEAR,OUTPUT SHAFT

13129-1061

1
Out of stock

23

ENGINE SPROCKET,22T

13144-1035

1
Out of stock

24

BALL-STEEL,5/32

600A0500

1
Out of stock

25

NUT,20MM

92015-1254

1
Out of stock

26

WASHER,SPLINE

92022-1083

1
Out of stock

27

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

28

WASHER,20.5X30X0.5,STEEL

92022-144

—
Out of stock

29

WASHER,25.3X30X0.5

92022-159

1
Out of stock

30

WASHER,TOOTHED,22.5X31X0.5

92024-038

1
Out of stock

31

SPACER,30X38X1.0

92026-079

1
Out of stock

32

COLLAR,ENG SPROCKET

92027-288

1
Out of stock

33

BUSHING,OUTPUT GEAR

92028-1268

1
Out of stock

34

RING-SNAP,20MM

92033-015

1
Out of stock

35

RING-SNAP,24MM

92033-026

1
Out of stock

36

RING-O

92055-035

1
Out of stock

37

BEARING,B,5205ANX4PX

92045-031

1
Out of stock

38

BEARING-NEEDLE,20R2513P

92046-044

1
Out of stock

39

RACE,OUT & DRV SHAFT

92048-1001

1
Out of stock

40

SEAL-OIL,SC325210

92050-024

1
Out of stock

41

BUSHING,2ND GEAR

92028-1177

1
Out of stock
