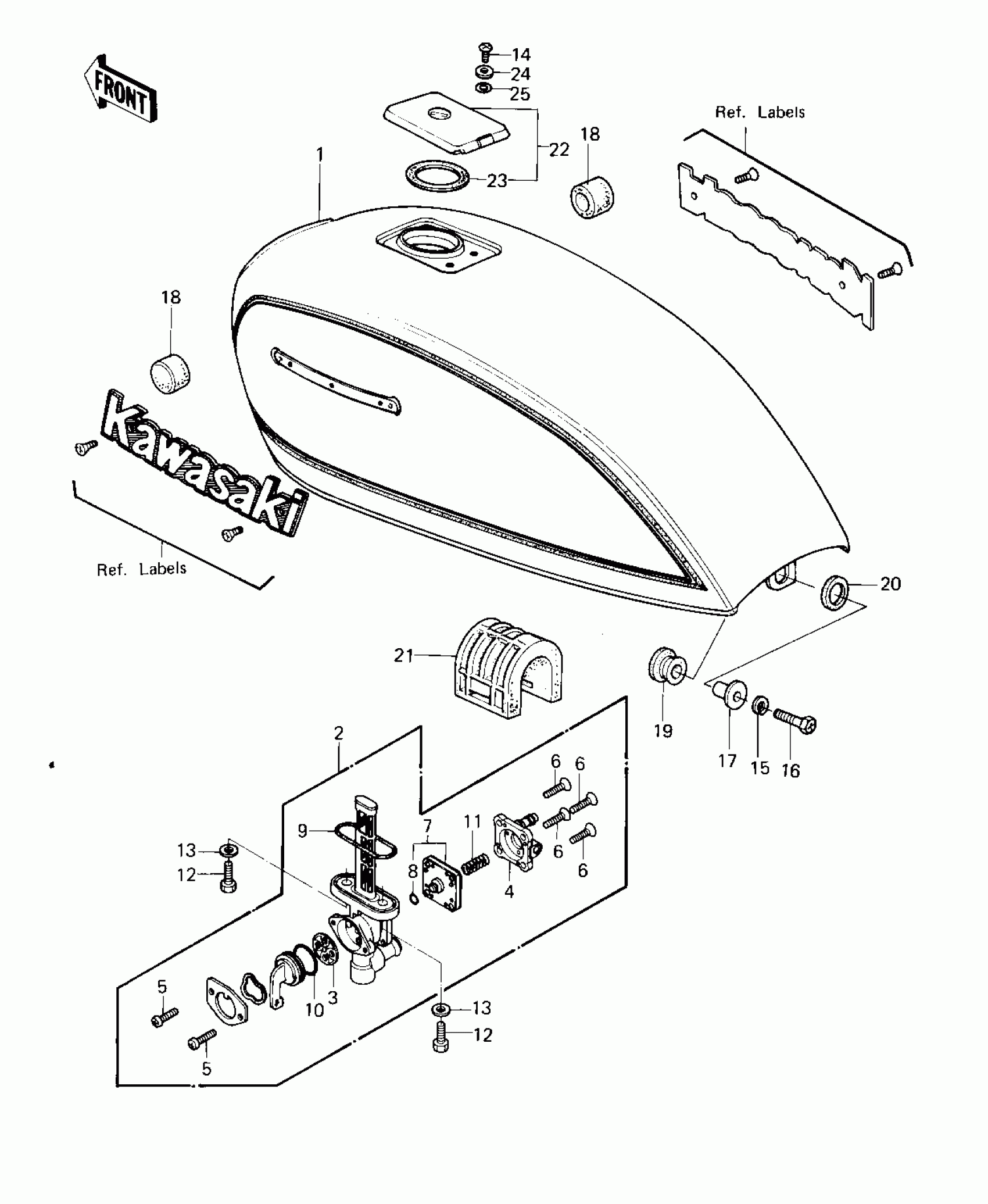

Kawasaki LTD Belt FUEL TANK ('80 D1) Diagram

#

Description
Price

1

TANK-FUEL,EBONY

51001-1026-8G

$803.93

1

TANK-FUEL,C.P.RED

51001-5049-A5

$617.52

2

TAP ASSY,FUEL

51023-1030

Unavailable

3

GASKET,TAP VALVE

11009-1188

$4.33

4

COVER ASSY,FUEL TAP

16146-1009

$17.34

5

SCREW-PAN-CROS,3X8

220B0308

$0.54

6

SCREW-CSK-CROS,4X14

221B0414

Unavailable

7

DIAPHRAGM,TAP

43028-1021

$27.04

8

O RING,4MM

670B1504

$3.17

9

RING,TAP FLANGED

51039-003

$4.71

10

RING-O,TAP LEVER

92055-1085

$3.85

11

SPRING,TAP DIAPHRAGM

92081-1240

$2.97

12

BOLT,6X20

92001-1091

$3.04

13

WASHER-PLAIN

92022-183

$2.99

14

SCREW PAN HEAD 5X10

220B0510

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

BOLT,6X25

92001-1284

Unavailable

17

COLLAR,L=13.1

92027-251

Unavailable

18

DAMPER,FUEL TANK

92075-101

$4.67

19

RUBBER,FENDER COVER

92075-174

$3.65

20

DAMPER,FEMALE

92075-175

$3.35

21

DAMPER,FUEL TANK

92075-284

$18.56

22

CAP ASSY TANK

51048-1018

Unavailable

23

GASKET,FUEL TANK CAP

11009-1051

$9.09

24

WASHER,5.3X10X0.8

92022-1038

$2.76

25

RING-O

92055-1023

$3.04
