1995 Suzuki LT80S Transmission Diagram

← All diagrams

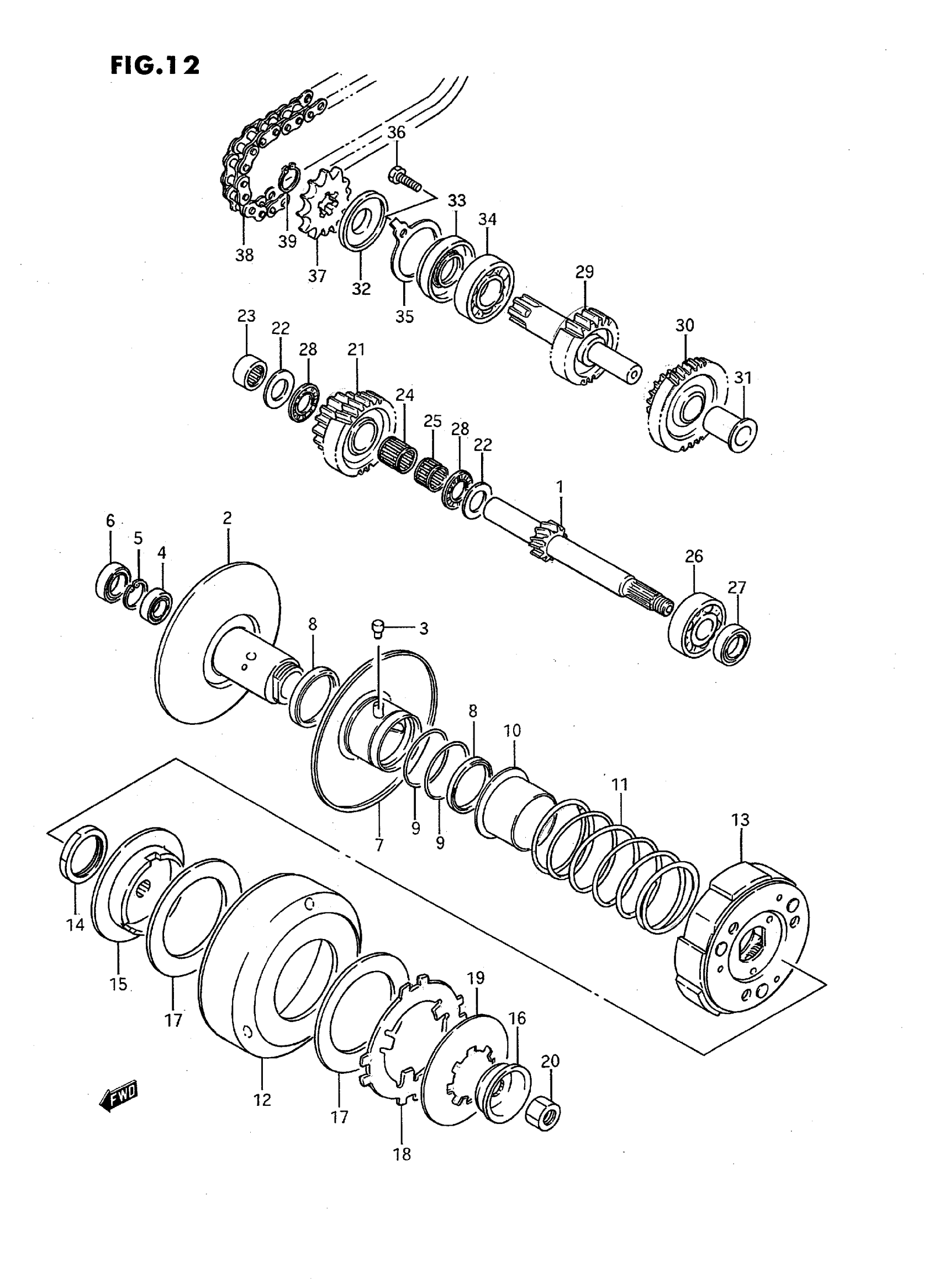

Find the part on the Transmission diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT80S Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTER SHAFT (NT:12)

24131-29A03

1
Out of stock

2

FACE, FIXED DRIVEN | MODEL H/J/K/L/M/N/P/R This part replaces 21210-40B00.

21210-03A21

1
Out of stock

2

FACE, FIXED DRIVEN | MODEL S

21210-03A21

1
Out of stock

3

PIN

09201-06005

3
Out of stock

4

BEARING (12X24X6)

09262-12014

1
Out of stock

5

CIRCLIP This part replaces 08331-41246.

08331-41249

1
Out of stock

6

BEARING(15X28X7 This part replaces 09262-15018.

09262-15061

1
Out of stock

7

FACE, MOVABLE DRIVEN

21240-40B00

1
Out of stock

8

OIL SEAL (34X41X4)

09283-34007

2
Out of stock

9

O RING

09280-41005

2
Out of stock

10

SHEET, MOVABLE DRIVEN | MODEL H/J/K/L/M/N/P/R This part replaces 21471-03A02.

21471-03A11

1
Out of stock

10

SHEET, MOVABLE DRIVEN | MODEL S This part replaces 21471-03A03.

21471-03A11

1
Out of stock

11

SPRING

09440-46005

1
Out of stock

12

HOUSING,CLUTCH

21220-29A01

1
Out of stock

13

CLUTCH ASSY | MODEL H/J/K/L/M This part replaces 21501-03A10.

21501-03A21

1
Out of stock

13

CLUTCH ASSY | MODEL N

21501-03A21

1
Out of stock

13

CLUTCH ASSY | MODEL P/R/S This part replaces 21501-03A30.

21501-03A21

1
Out of stock

14

NUT

09152-28001

1
Out of stock

15

HUB, LIMITER CLUTCH

21411-29A01

1
Out of stock

16

STOPPER, LIMITER CLUTCH

21412-29A00

1
Out of stock

17

PLATE, FRICTION

21441-29A01

2
Out of stock

18

PLATE, PRESSURE

21461-29A01

1
Out of stock

19

SPRING

09164-30003

1
Out of stock

20

NUT

09140-10035

1
Out of stock

21

GEAR, FINAL DRIVE (NT:27/14)

24271-40B01

1
Out of stock

22

WASHER, GOVERNOR THRUST This part replaces 08211-15281.

09181-15223

2
Out of stock

23

BEARING (15X22X15)

09263-15009

1
Out of stock

24

BEARING (15X20X18) | RH

09263-15035

1
Out of stock

25

BEARING (15X20X13) | LH,<-09263-15036

09263-15038

1
Out of stock

26

BEARING (15X42X13) | <-09262-15023

09262-15027

1
Out of stock

27

OIL SEAL (15X25X5)

09283-15003

1
Out of stock

28

BEARING (15X28X2)

09263-15003

2
Out of stock

29

SHAFT, DRIVE (NT:19)

24141-40B00

1
Out of stock

30

GEAR, IDLER DRIVE NO.2 | NT:33/14 This part replaces 24290-29A00.

24290-29A01

1
Out of stock

31

BUSH

09301-15002

1
Out of stock

32

OIL SEAL

24142-40B00

1
Out of stock

33

OIL SEAL

09283-20047

1
Out of stock

34

BEARING (20X47X14) | <-09262-20062

09262-20069

1
Out of stock

35

RETAINER

24751-40B00

1
Out of stock

36

BOLT | MODEL P/R/S This part replaces 01500-06163.

01500-0616A

2
Out of stock

37

SPROCKET, ENGINE (NT:12) | MODEL H/J

27511-48400

1
Out of stock

37

SPROCKET, ENGINE (NT:10) | MODEL K/L/M/N/P/R/S

27511-40B10

1
Out of stock

38

CHAIN, CHAIN (DID 428VSX44LE) | MODEL H/J

27600-40B11-044

1
Out of stock

38

CHAIN ASSY (DID 520VSX36LE) | MODEL K/L/M/N/P/R/S This part replaces 27600-01C10-036.

27600-34A40-036

1
Out of stock

39

CIRCLIP

09380-20009

1
Out of stock
