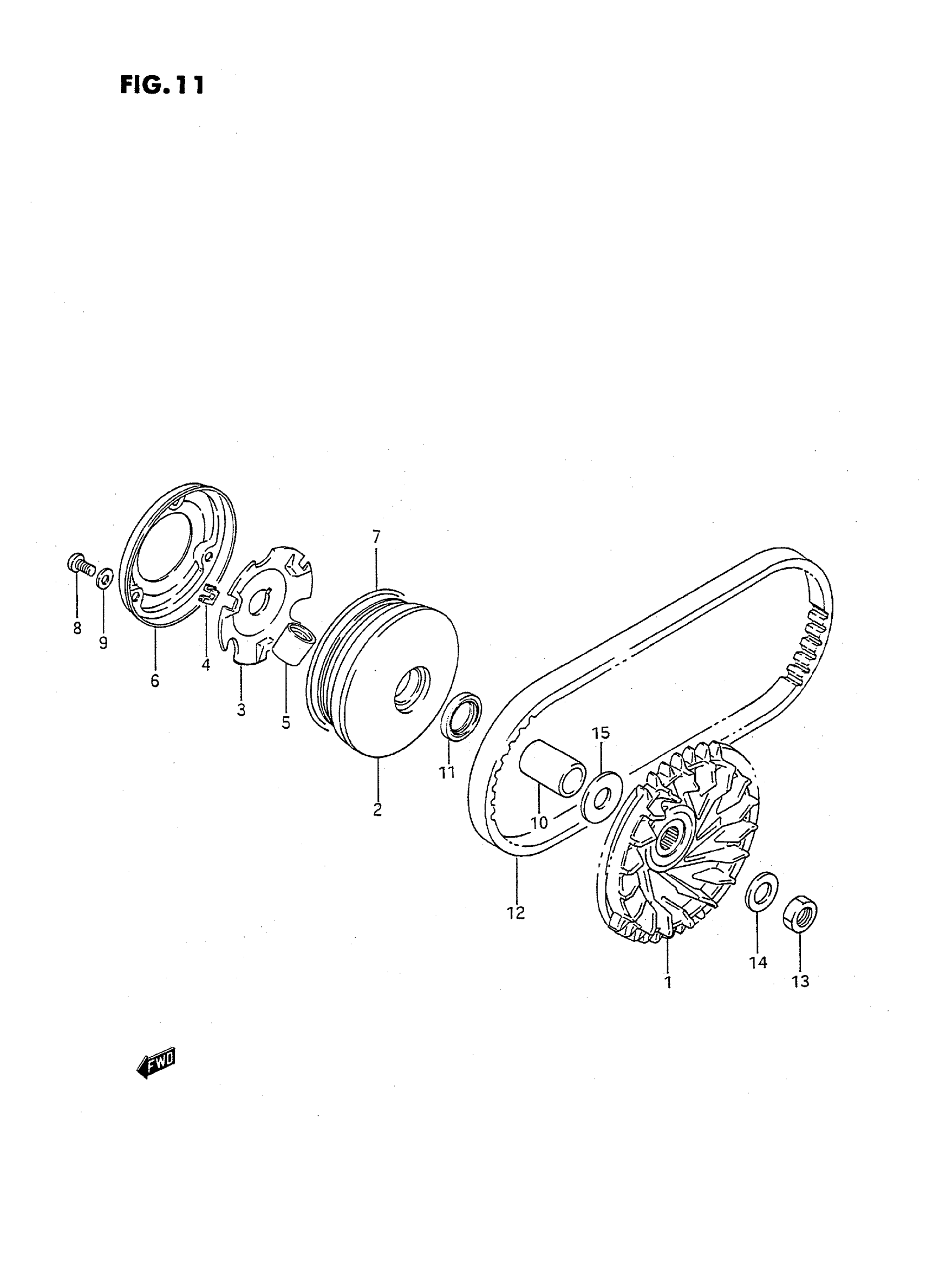

Suzuki LT80S (1995) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE, FIXED DRIVE | MODEL H/J/K/L/M This part replaces 21110-40B01.

21110-40B02

$187.62

1

FACE, FIXED DRIVE | MODEL N/P/R/S

21110-40B02

$187.62

2

FACE, MOVABLE DRIVE This part replaces 21120-29A01.

21120-29A02

$79.98

3

PLATE, MOVABLE DRIVE FACE

21431-29A00

$7.99

4

DAMPER

21481-29A01

$3.97

5

ROLLER, MOVABLE DRIVE FACE

21650-29A20

$4.47

6

COVER

21122-03A01

$4.09

7

O RING (D:3.1,ID:84.4)

09280-85003

$6.63

8

SCREW | MODEL H/J/K/L/M/N

02112-05107

$1.43

8

SCREW, THROTTLE | MODEL P/R/S This part replaces 02112-05103.

02112-0510A

$1.43

9

WASHER This part replaces 08322-21057.

08322-01057

$1.86

10

SPACER (16X22X35.3) | MODEL H/J/K/L This part replaces 09180-16039.

09180-16043

$21.64

10

SPACER (16X22X32.33) | MODEL M/N/P/R/S

09180-16046

$25.43

11

OIL SEAL (22X30X4)

09283-22018

$5.03

12

V BELT

27601-40B01

$41.11

13

NUT | MODEL H/J/K/L/M/N This part replaces 09140-12031.

09140-12037

$2.80

13

NUT | MODEL P/R/S

09140-12037

$2.80

14

WASHER

09164-12020

$2.10

15

WASHER (14.5X32X3) | MODEL M/N/P/R/S This part replaces 09160-14048.

09160-14063

$2.80
