1995 Suzuki LT80S Brake Pedal Diagram

← All diagrams

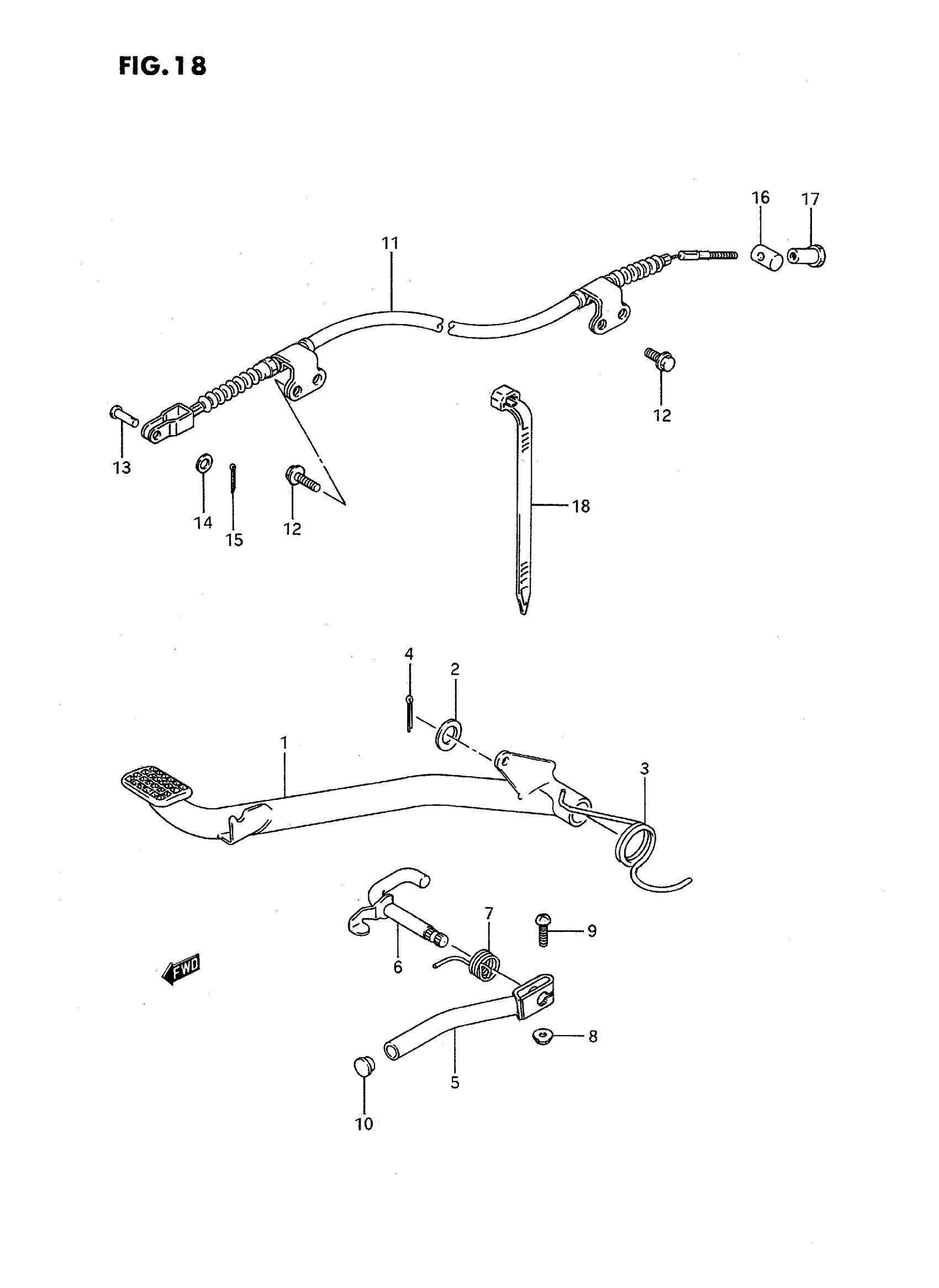

Find the part on the Brake Pedal diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT80S Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL H/J

43110-40B00

1
Out of stock

1

PEDAL, BRAKE | MODEL K/L/M/N/P/R

43110-40B10

1
Out of stock

1

PEDAL, BRAKE | MODEL S

43110-40B00

1
Out of stock

2

WASHER

09160-15002

1
Out of stock

3

SPRING, BRAKE PEDAL RETURN

43182-40B00

1
Out of stock

4

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

5

HANDLE, BRAKE PEDAL

43160-40B00

1
Out of stock

6

STOPPER, BRAKE PEDAL

43150-40B00

1
Out of stock

7

SPRING. BRAKE PEDAL STOPPER

43192-40B00

1
Out of stock

8

NUT | MODEL H/J/K/L/M/N/P This part replaces 08316-26065.

08316-2006A

1
Out of stock

8

NUT | MODEL R/S This part replaces 08316-20063.

08316-2006A

1
Out of stock

9

SCREW, SEAT SUPPORT BRK | MODEL H/J/K/L/M/N/P This part replaces 02112-06305.

02112-0630A

1
Out of stock

9

SCREW, SEAT SUPPORT BRK | MODEL R/S This part replaces 02112-06303.

02112-0630A

1
Out of stock

10

CAP

09250-08013

1

$2.92

In stock

11

CABLE, REAR BRAKE

58510-40B00

1
Out of stock

12

BOLT

01550-06167

4
Out of stock

13

PIN, FRONT

09200-06013

1
Out of stock

14

WASHER

08322-01067

1
Out of stock

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

16

PIN, REAR

09209-13006

1
Out of stock

17

NUT

09150-06012

1
Out of stock

18

CLAMP

09407-14403

1
Out of stock
