1995 Suzuki LT80S Front Brake Lever Diagram

← All diagrams

Find the part on the Front Brake Lever diagram for your 1995 Suzuki LT80S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

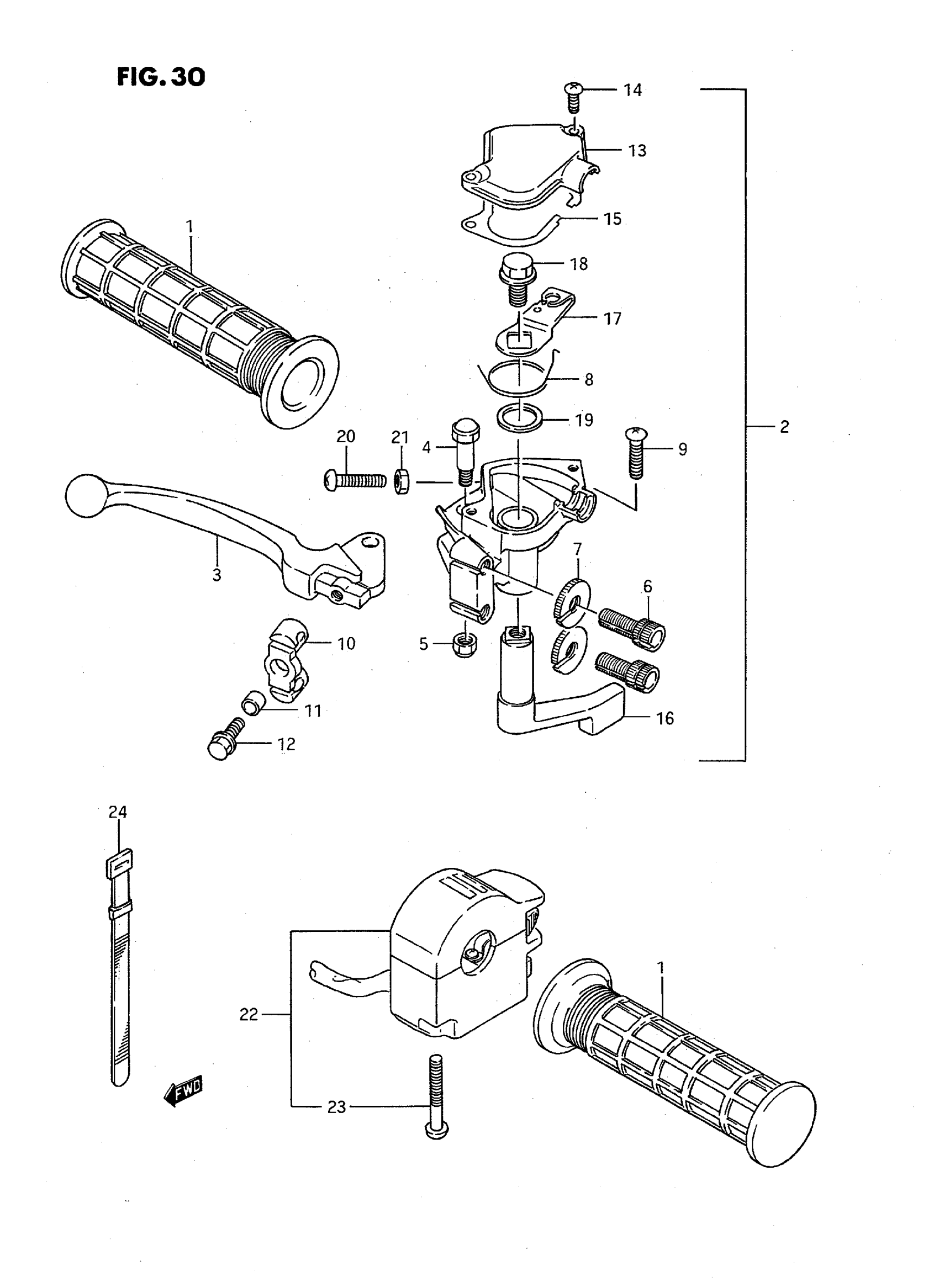

1995 Suzuki LT80S Front Brake Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

2
Out of stock

2

LEVER ASSY,FRON | Includes Item(s) 3 - 21 This part replaces 57300-40B00.

57300-40B01

1
Out of stock

3

LEVER, FRONT BRAKE

57421-40B00

1
Out of stock

4

BOLT, BRAKE LEVER PIVOT

57431-49110

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

ADJUSTER, BRAKE CABLE

57441-26010

2
Out of stock

7

NUT, BRAKE CABLE ADJUSTER

57442-11010

2
Out of stock

8

SPRING. THROTTLE LEVER

57159-40B00

1
Out of stock

9

1

$1.55

In stock

10

EQUALIZER, BRAKE CABLE

57396-40B00

1
Out of stock

11

SPACER (6.2X8.3X6.9)

09180-06194

1
Out of stock

12

BOLT | MODEL H/J/K/L/M/N/P This part replaces 01517-06164.

01550-0616A

1
Out of stock

12

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

1
Out of stock

13

CAP, THROTTLE CASE

57121-40B00

1
Out of stock

14

SCREW | MODEL H/J/K/L/M/N/P This part replaces 02112-34105.

02112-3410A

2
Out of stock

14

SCREW | MODEL R/S This part replaces 02112-04103.

02112-0410A

2
Out of stock

15

.GASKET, THROTTLE CASE This part replaces 57157-40B00.

57157-40B01

1
Out of stock

16

LEVER, THROTTLE

57151-40B00

1
Out of stock

17

LEVER, THROTTLE CABLE

57158-40B00

1
Out of stock

18

BOLT (8X12) | MODEL H/J/K/L/M/N/P This part replaces 01517-08126.

01550-0812A

1
Out of stock

18

BOLT (8X12) | MODEL R/S This part replaces 01550-08123.

01550-0812A

1
Out of stock

19

.GASKET (14X20X1.5) This part replaces 09168-14012.

09168-14015

1
Out of stock

20

SCREW

09125-05066

1
Out of stock

21

.NUT | MODEL H/J/K/L/M/N/P This part replaces 08310-22055.

09140-05006

1
Out of stock

21

NUT | MODEL R/S

09140-05006

1
Out of stock

22

SWITCH ASSY,HAN | Includes Item(s) 23 This part replaces 37400-40B00.

37400-40B02

1
Out of stock

23

SCREW

02112-05357

2
Out of stock

24

BAND, HANDLE HARNESS

09407-12402

1
Out of stock
