1987 Suzuki LT50 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1987 Suzuki LT50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

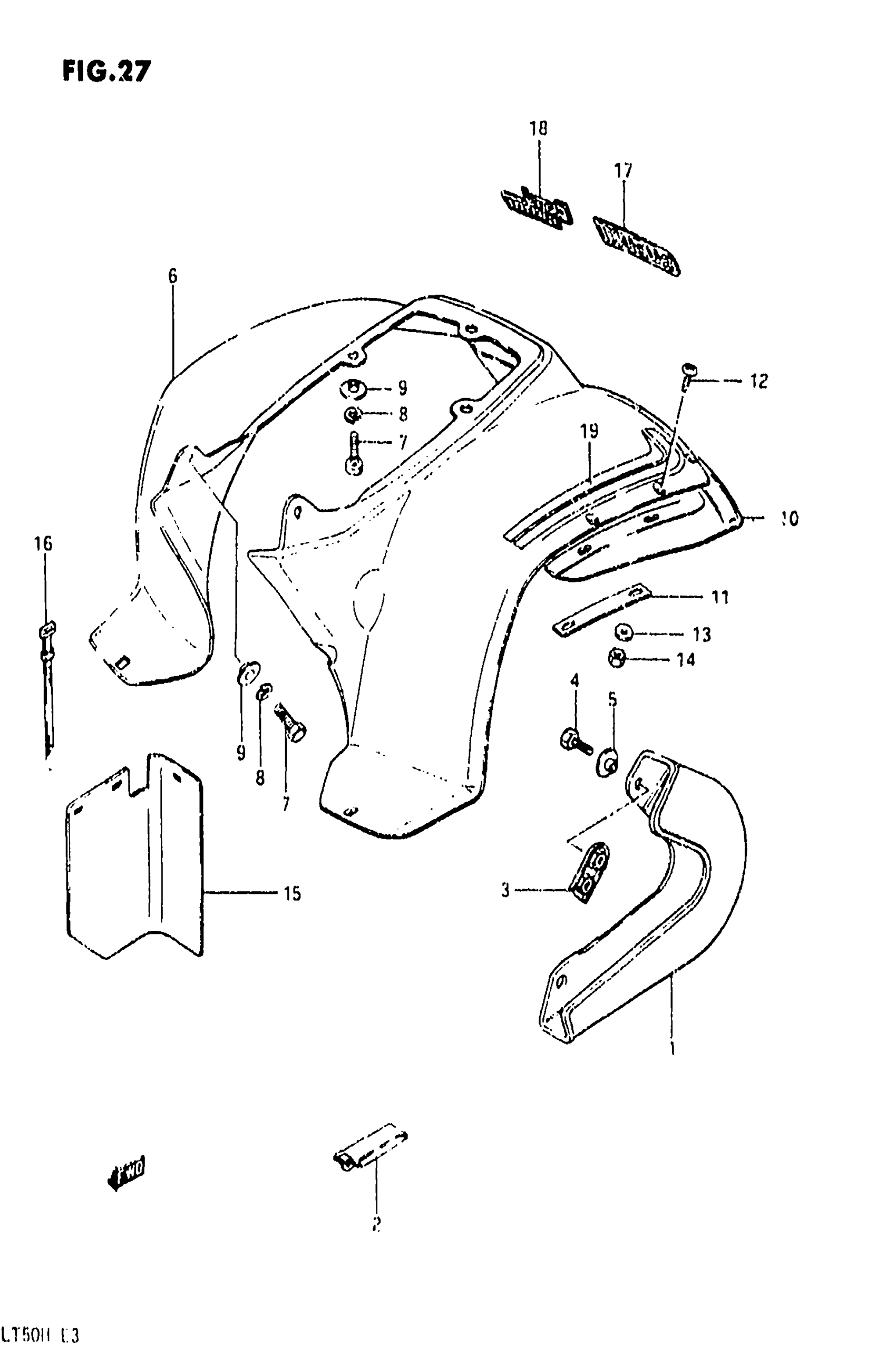

1987 Suzuki LT50 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CHAIN (BLACK)

61311-04600

1
Out of stock

2

CHAIN CASE, FRONT

61321-04200

1
Out of stock

3

SUPPORT, CHAIN CASE

61360-04600

1
Out of stock

4

BOLT This part replaces 01107-06127.

01500-06127

2
Out of stock

5

WASHER

09169-06010

2
Out of stock

6

FENDER, REAR (ORANGE) | MODEL E/F This part replaces 63111-04600-00N.

63111-04600-25G

1
Out of stock

6

FENDER, REAR (ORANGE) | MODEL G/H

63111-04600-25G

1
Out of stock

6

FENDER, REAR (YELLOW) | MODEL G This part replaces 63111-04600-163.

63111-04600-25Y

1
Out of stock

6

FENDER, REAR (YELLOW) | MODEL H

63111-04600-25Y

1
Out of stock

7

BOLT This part replaces 01107-06127.

01500-06127

5
Out of stock

8

5

$2.28

In stock

9

WASHER

09169-06016

5
Out of stock

10

MUD GUARD, REAR FENDER

63331-04600

2
Out of stock

11

PLATE

63332-04600

4
Out of stock

12

SCREW This part replaces 02142-05128.

02142-05127

8
Out of stock

13

WASHER This part replaces 08322-21058.

08322-01057

8
Out of stock

14

NUT This part replaces 08310-11058.

08310-00057

8
Out of stock

15

MUD GUARD

63332-04200

1
Out of stock

16

CLAMP

09407-12402

3
Out of stock

17

EMBLEM | MODEL B

68111-04610-94A

1
Out of stock

17

EMBLEM (FOR 25G) | MODEL C

68111-04610-7ZP

1
Out of stock

17

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68111-04610-99V.

68166-04700-38Z

1
Out of stock

18

EMBLEM (FOR 25G) | MODEL H

68233-04230-73J

1
Out of stock

18

EMBLEM (FOR 25Y) | MODEL H

68233-04230-9BS

1
Out of stock

18

TYPE SET | MODEL E

68170-04200-96Z

1
Out of stock
