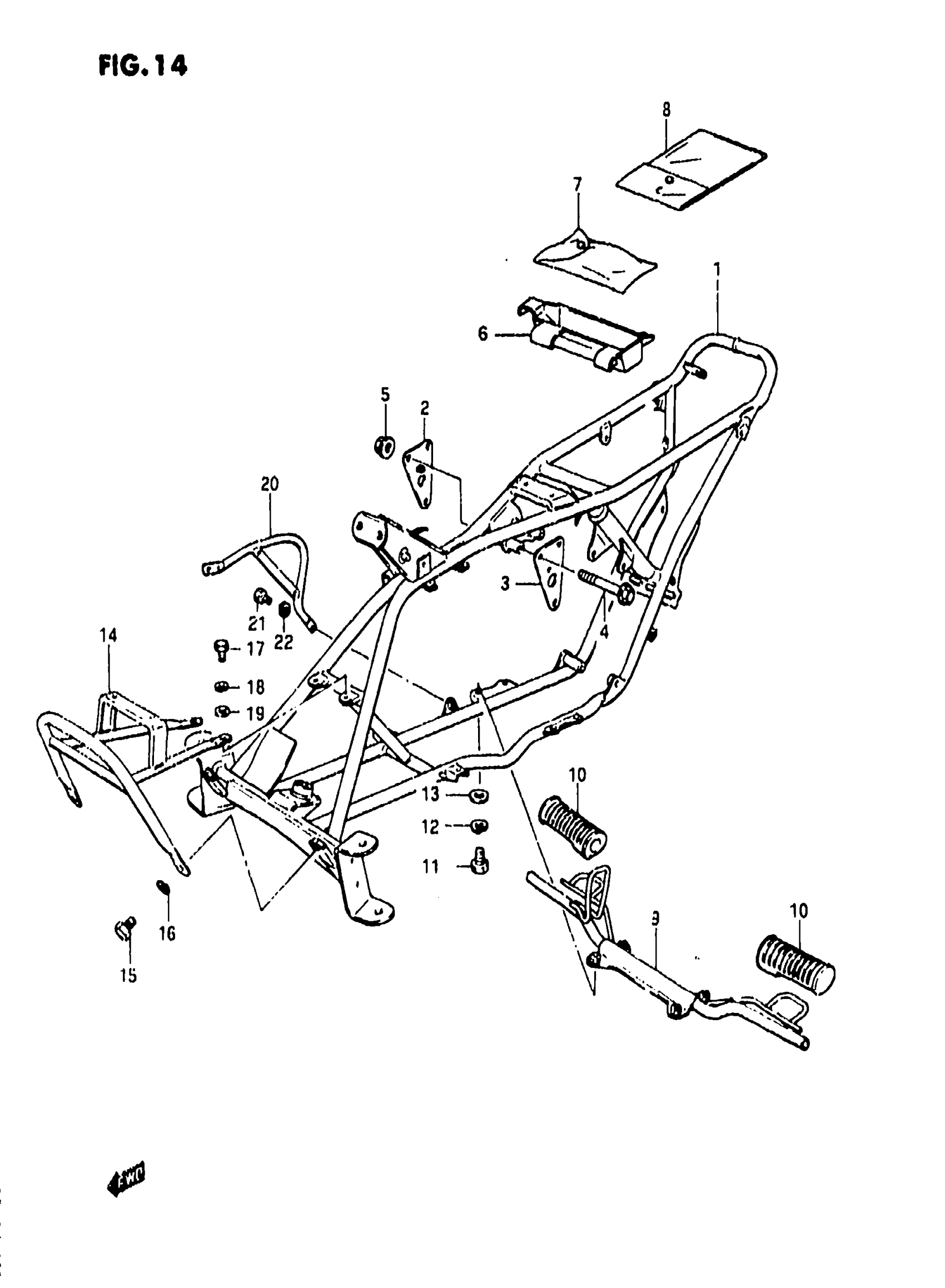

Suzuki LT50 (1987) FRAME-FOOTREST Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL E/F This part replaces 41100-04200-019.

41100-04211-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL G/H This part replaces 41100-04210-019.

41100-04211-019

Unavailable

2

PLATE, MOUNTING LH This part replaces 41911-04200.

41920-04200

$7.67

3

PLATE, MOUNTING LH

41920-04200

$7.67

4

BOLT This part replaces 01517-08708.

01550-08707

$3.71

5

NUT

08319-31087

$2.38

6

HOLDER, TOOL | MODEL H

47431-04200

Unavailable

7

TOOL ASSY This part replaces 09800-00250.

09800-21027

$30.87

8

BAG, MANUAL

94980-18B00

Unavailable

9

FOOTREST, FRONT

43510-04200

$75.07

10

RUBBER

43551-03001

$7.11

11

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.57

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

13

WASHER This part replaces 08322-11088.

08322-01087

$1.92

14

GRIP, FRONT

43990-04200

$78.18

15

BOLT This part replaces 01107-08125.

01500-0812A

$2.38

16

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.91

17

BOLT This part replaces 01107-06125.

01500-0612A

$1.85

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.89

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.31

20

GUARD, ENGINE

94280-04200

$35.10

21

BOLT This part replaces 01107-06125.

01500-0612A

$1.85

22

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.89
