1987 Suzuki LT50 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1987 Suzuki LT50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

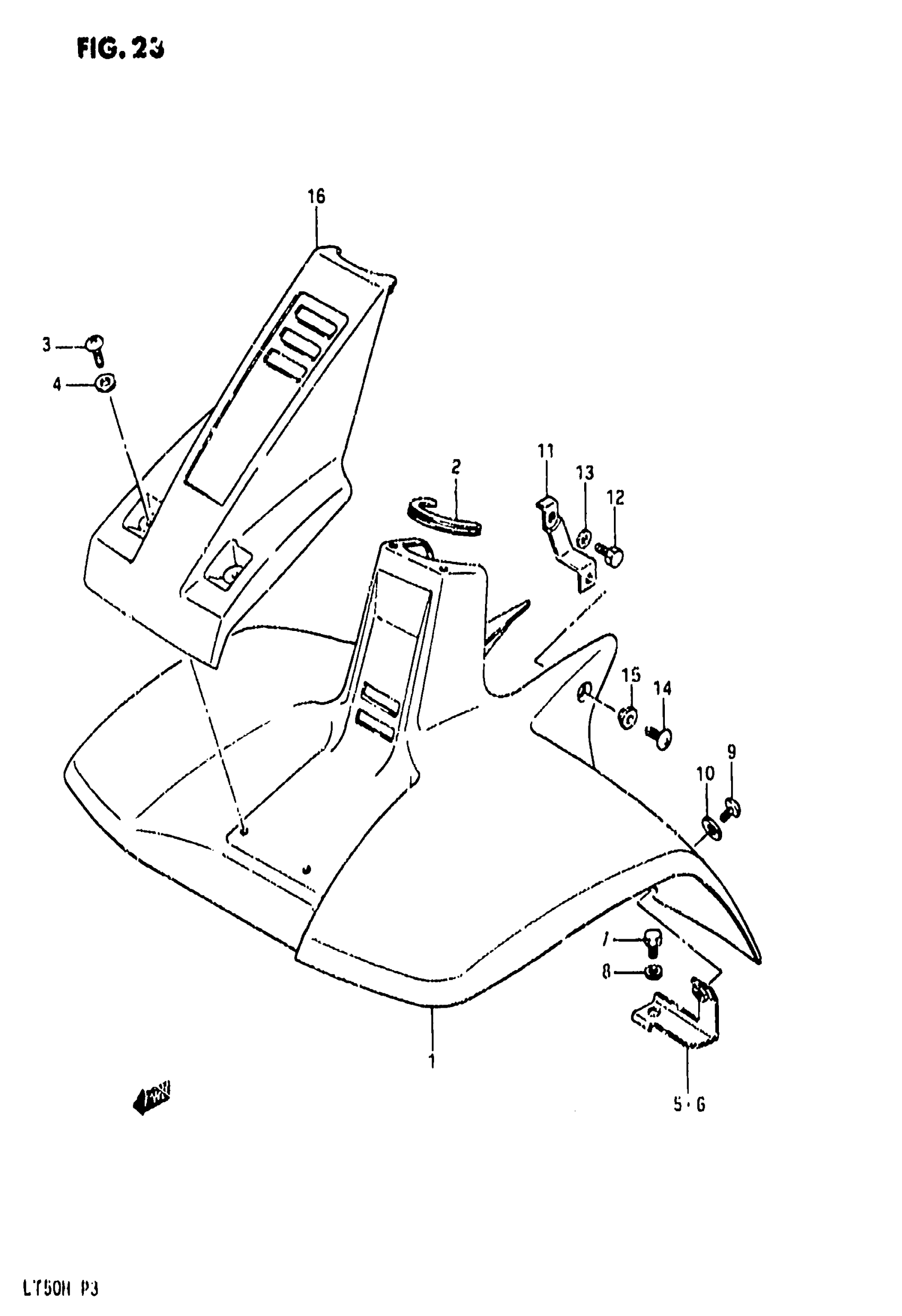

1987 Suzuki LT50 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (ORANGE)

53111-04201-25G

1
Out of stock

1

FENDER, FRONT (YELLOW)

53111-04201-25Y

1
Out of stock

2

MOLDING, METER This part replaces 58628-04200.

94527-19C00

1
Out of stock

3

SCREW, FENDER FRONT

02142-06167

2
Out of stock

4

WASHER, FENDER FRONT

09160-06084

2
Out of stock

5

BRACKET, FENDER LOWER, RH

53270-04200

1
Out of stock

6

BRACKET, FENDER LOWER, LH

53280-04200

1
Out of stock

7

BOLT This part replaces 01107-06125.

01500-0612A

2
Out of stock

8

2

$1.97

In stock

9

SCREW, FENDER LOWER

02142-06127

2
Out of stock

10

WASHER, FENDER LOWER

09160-06084

2
Out of stock

11

BRACKET, FENDER SIDE, RH

53170-04200

1
Out of stock

11

BRACKET, FENDER SIDE, LH

53180-04200

1
Out of stock

12

BOLT This part replaces 01107-06125.

01500-0612A

2
Out of stock

13

2

$1.97

In stock

14

SCREW

02142-06127

2
Out of stock

15

WASHER

09160-06084

2
Out of stock

16

COVER FR FENDER This part replaces 53118-04200.

53118-04200-19F

1
Out of stock
