1987 Suzuki LT50 Fuel Tank Diagram

← All diagrams

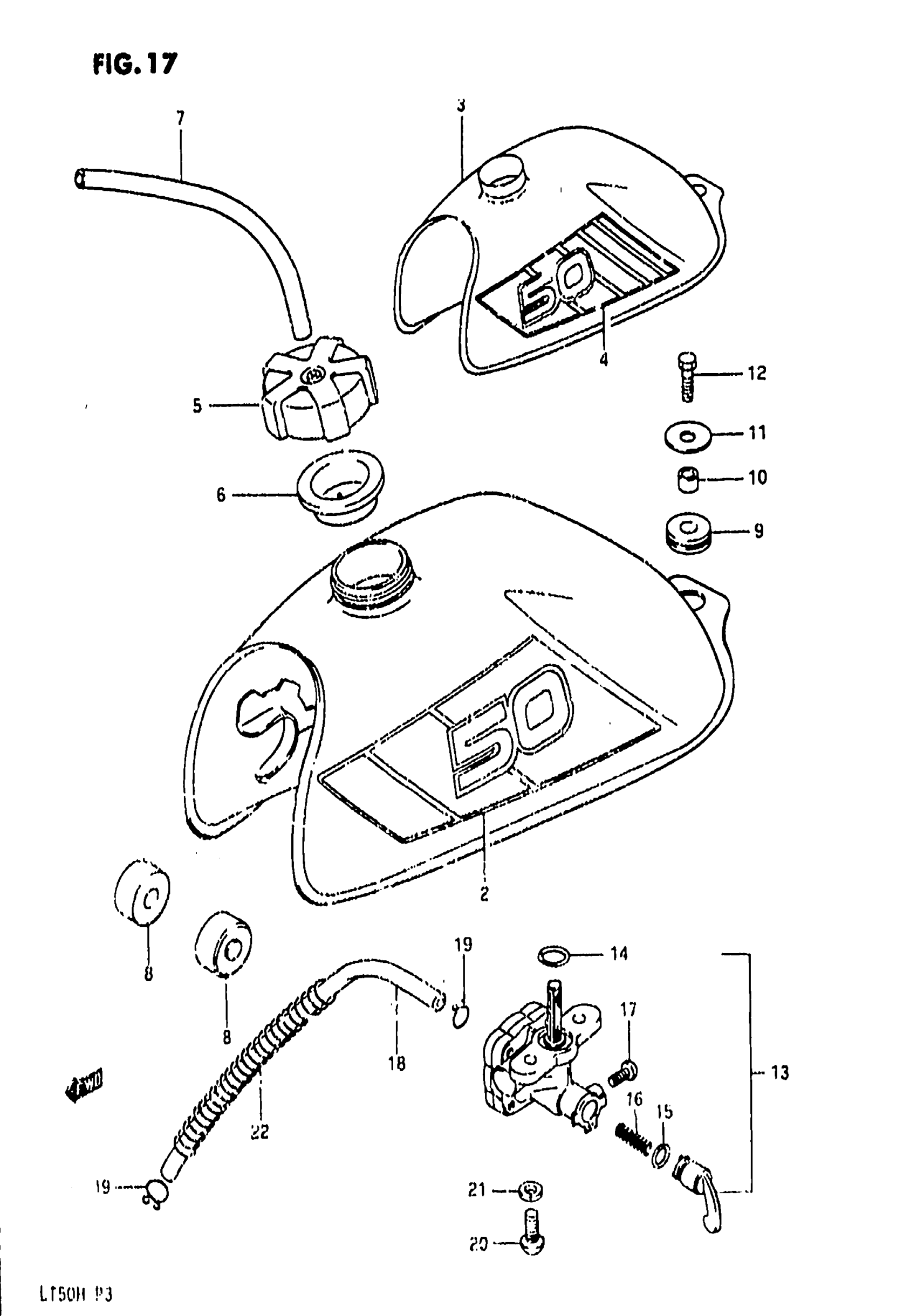

Find the part on the Fuel Tank diagram for your 1987 Suzuki LT50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT50 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-04630-25G.

44110-04600-13L

1
Out of stock

2

TAPE SET

68110-04210-32S

1
Out of stock

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-04640-25Y.

44110-04600-13L

1
Out of stock

4

TAPE SET, FUEL TANK

68110-04220-9BR

1
Out of stock

5

1

$96.70

In stock

6

1

$96.70

In stock

7

1

$13.49

In stock

8

CUSHION, FRONT

09329-10005

2

$2.57

In stock

9

CUSHION, REAR

09320-09002

2

$2.40

In stock

10

SPACER

09180-06038

2

$2.16

In stock

11

2

$2.05

In stock

12

2

$1.90

In stock

14

O RING, JOINT

44348-41370

1

$2.16

In stock

15

O RING, LEVER

44353-41370

1

$4.47

In stock

16

1

$2.57

In stock

17

SCREW

44343-41370

1

$2.50

In stock

18

1

$9.88

In stock

19

CLIP

09401-08401

2

$1.76

In stock

20

2

$1.42

In stock

21

2

$2.28

In stock

22

SPRING

09440-10019

1

$3.67

In stock
