Description

Price

1

GEAR ASSY, PRIMARY DRIVE

21110-04410

$296.88

2

WASHER (14X29X1.5) This part replaces 09160-14005.

09160-14046-XC0

$5.18

3

THRUST WASHER

09160-14012

$5.10

4

SPACER

09180-14003

$16.75

5

CLUTCH ASSY This part replaces 21500-04411.

21500-04412

$140.37

6

NUT

09159-12012

$19.58

7

WASHER

09164-12016

Unavailable

8

OIL SEAL

09284-08001

$2.40

9

KEY

09421-03003

$3.67

10

THRUST WASHER (32X38X1) This part replaces 08211-32381.

09181-32111

$6.35

11

PLATE

21471-04410

$13.50

12

WAVE WASHER

09164-32002

$7.48

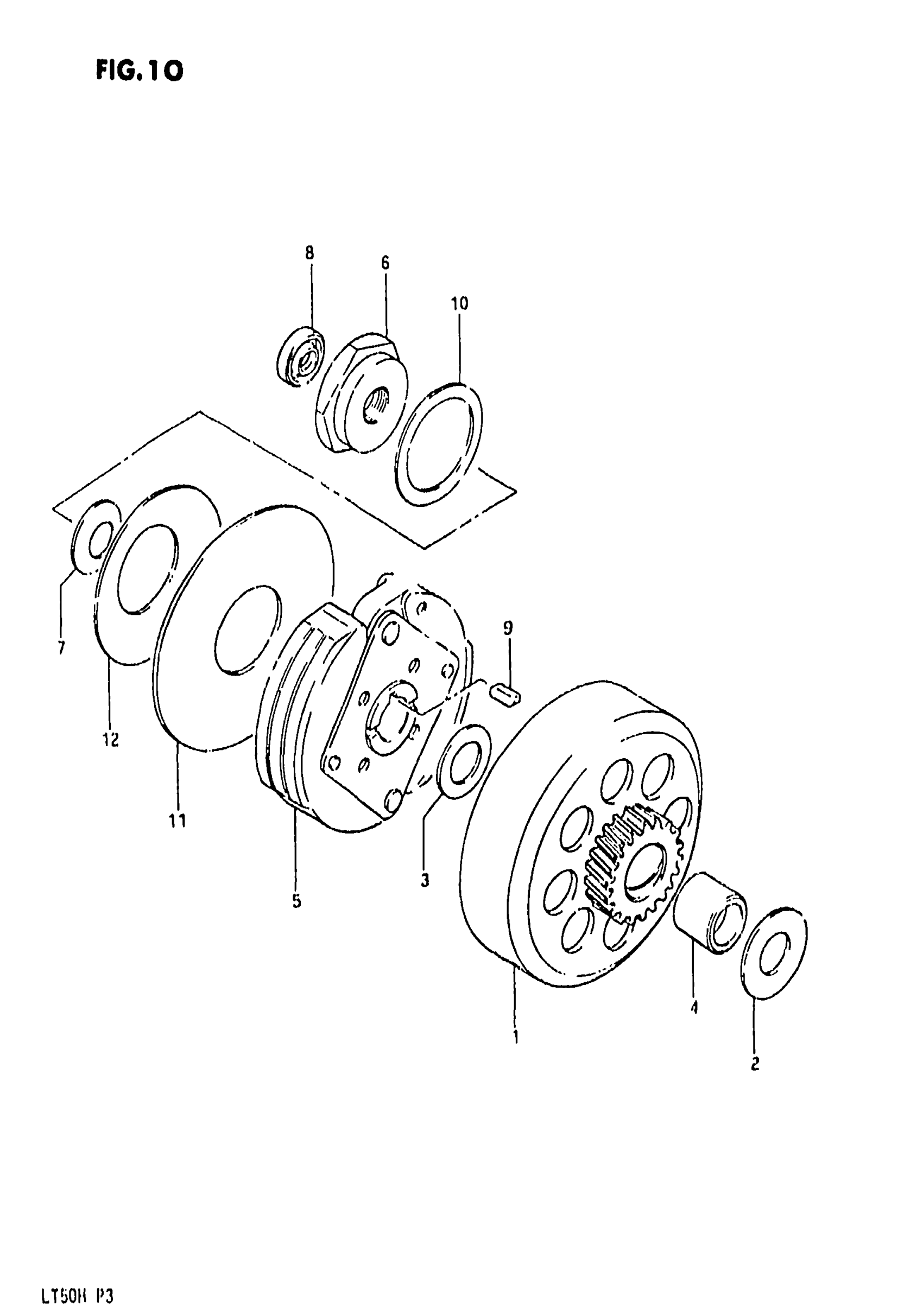

Suzuki LT50 (1987) CLUTCH Diagram
