1989 Suzuki LT300E Cooling FAN Diagram

← All diagrams

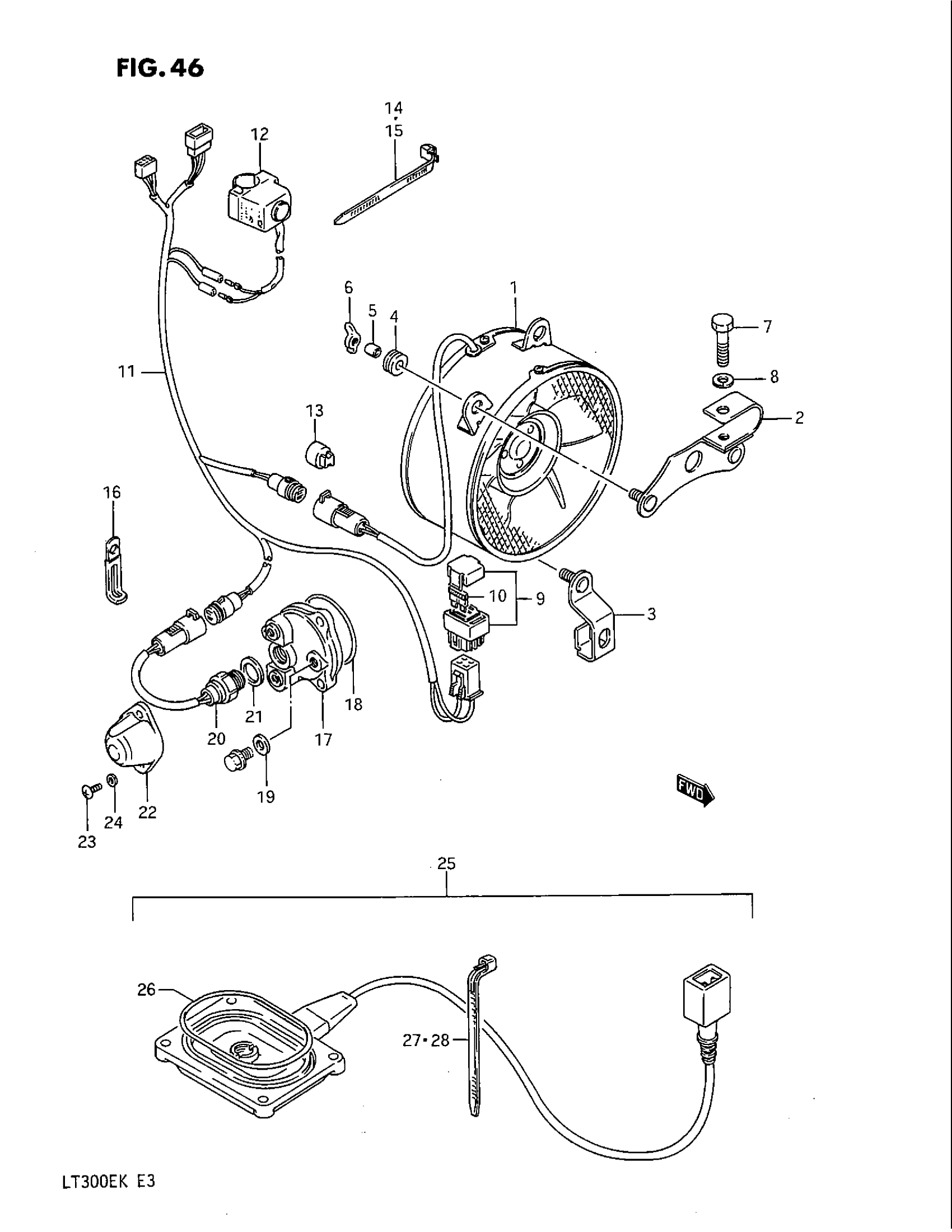

Find the part on the Cooling FAN diagram for your 1989 Suzuki LT300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Suzuki LT300E Cooling FAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

FAN SET, COOLING | Includes Item(s) 1 - 24

17000-24832

1
Out of stock

1

FAN ASSY, COOLING

17100-24500

1
Out of stock

2

BRACKET, UPPER

17820-24500

1
Out of stock

3

BRACKET, LOWER

17821-24500

1
Out of stock

4

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

3
Out of stock

5

SPACER (6.1X9X7.5)

09180-06038

3
Out of stock

6

NUT This part replaces 08317-12066.

08317-1206A

3
Out of stock

7

BOLT This part replaces 01107-08408.

01500-0840A

1
Out of stock

8

1

$2.28

In stock

9

BOX ASSY, FUSE

36740-24510

1
Out of stock

10

FUSE (10A)

09481-10101

1
Out of stock

11

LEAD WIRE This part replaces 36856-18B00.

36856-18B10

1
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 37910-18B00.

37910-19B00

1
Out of stock

13

CAP

36634-93910

1

$5.32

In stock

14

CLAMP (L:140)

09407-14403

3
Out of stock

15

CLAMP (L:180)

09407-18402

1
Out of stock

16

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

17

CAP, OIL FILTER This part replaces 16512-41B01.

16512-18B00

1
Out of stock

18

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

19

GASKET

09168-08015

1

$2.92

In stock

20

SWITCH, FAN

17680-18B00

1
Out of stock

21

GASKET

09168-16003

1
Out of stock

22

COVER, FAN SWITCH

37821-43401

1
Out of stock

23

SCREW This part replaces 02112-06106.

02112-0610B

2
Out of stock

24

2

$1.97

In stock

25

HEATER SET, ENGINE | Includes Item(s) 26 - 28

16900-41B00

1
Out of stock

26

O RING

16528-24500

1
Out of stock

27

CLAMP (L:140)

09407-14403

4
Out of stock

28

CLAMP This part replaces 09407-18403.

09407-18402

1
Out of stock
