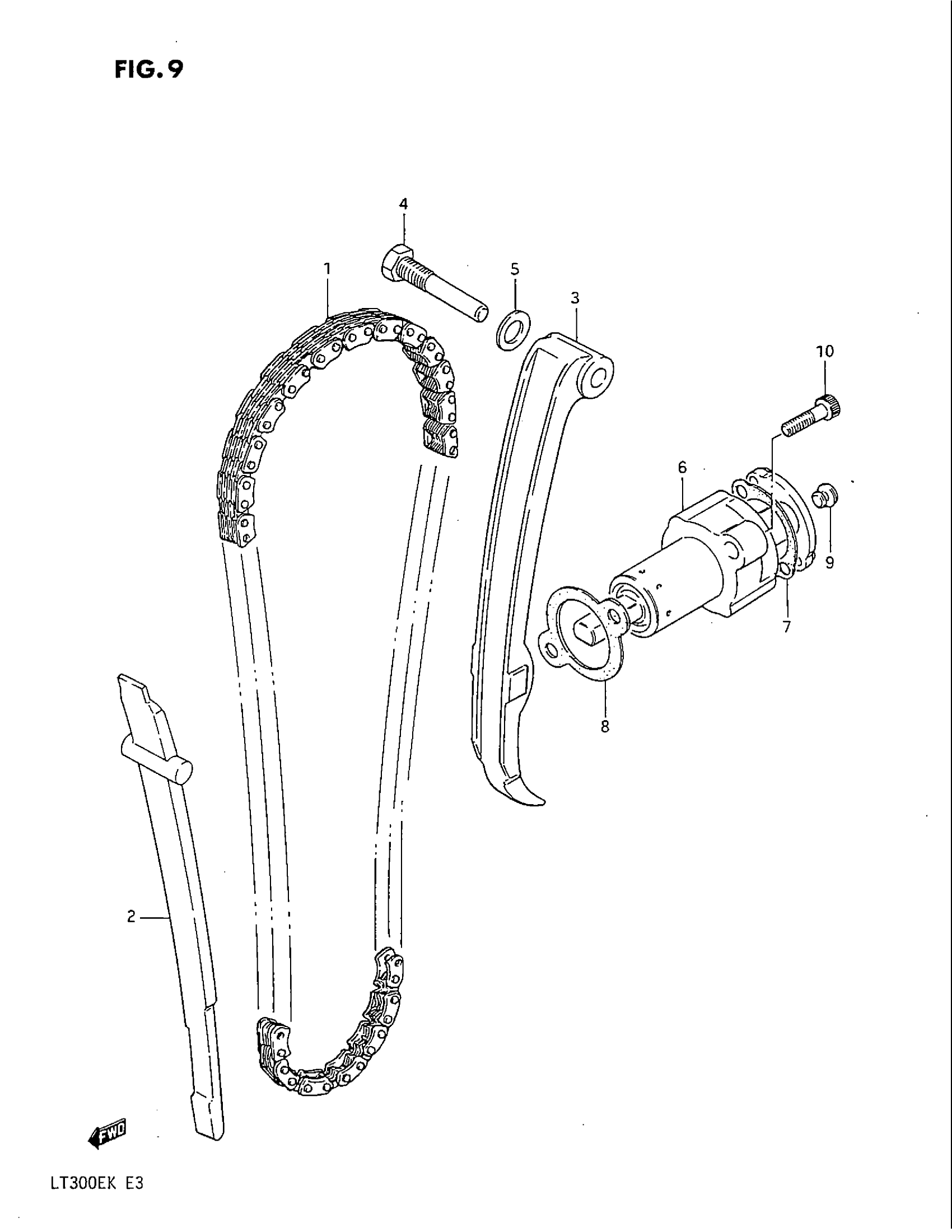

Suzuki LT300E (1989) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE | 118LE

12760-41B00-118

Unavailable

2

GUIDE, CAM CHAIN

12771-41B00

Unavailable

3

TENSIONER, CAM CHAIN

12811-41B01

Unavailable

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 This part replaces 12830-38200.

12830-38201

$159.87

7

GASKET This part replaces 12838-38200.

12838-38200-H17

$3.58

8

.GASKET,TENSIONER ADJUSTER This part replaces 12837-24A00.

12837-24A10

$2.97

9

PLUG

12839-38200

$2.35

10

BOLT This part replaces 07110-06257.

07130-06257

$2.90
