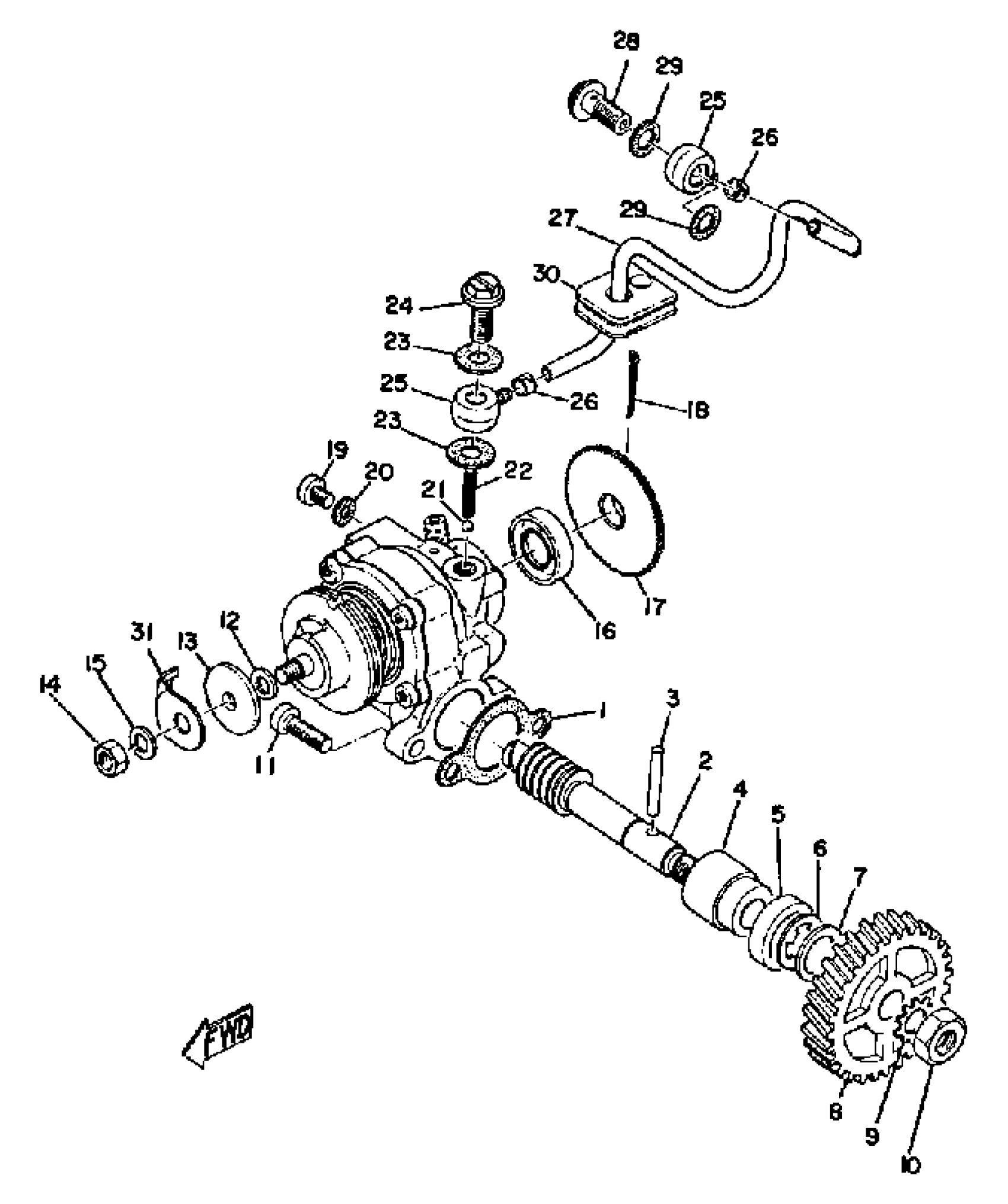

Find the part on the OIL Pump diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

OIL PUMP ASSY COMPLETE

276-13101-01-00

1
Out of stock

0

OIL PUMP ASSY COMPLETE

304-13101-01-00

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

214-13175-01-00

1
Out of stock

2

SHAFT, WORM

275-13175-02-00

1

$22.03

In stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

16

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

17

. PLATE, STARTER

137-13128-00-00

1
Out of stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

SCREW, BIND

98980-04008-00

1

$3.26

In stock

20

GASKET 137131870000

90430-04004-00

—
Out of stock

21

BALL

93505-32002-00

—

$2.22

In stock

22

. SPRING, COMPRESSION

90501-02017-00

1
Out of stock

23

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

24

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

25

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

26

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

27

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

28

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

29

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

30

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

31

COVER

402-13146-00-00

1
Out of stock
