1972 Yamaha LT2M (LT2M) Crankcase Cover Diagram

← All diagrams

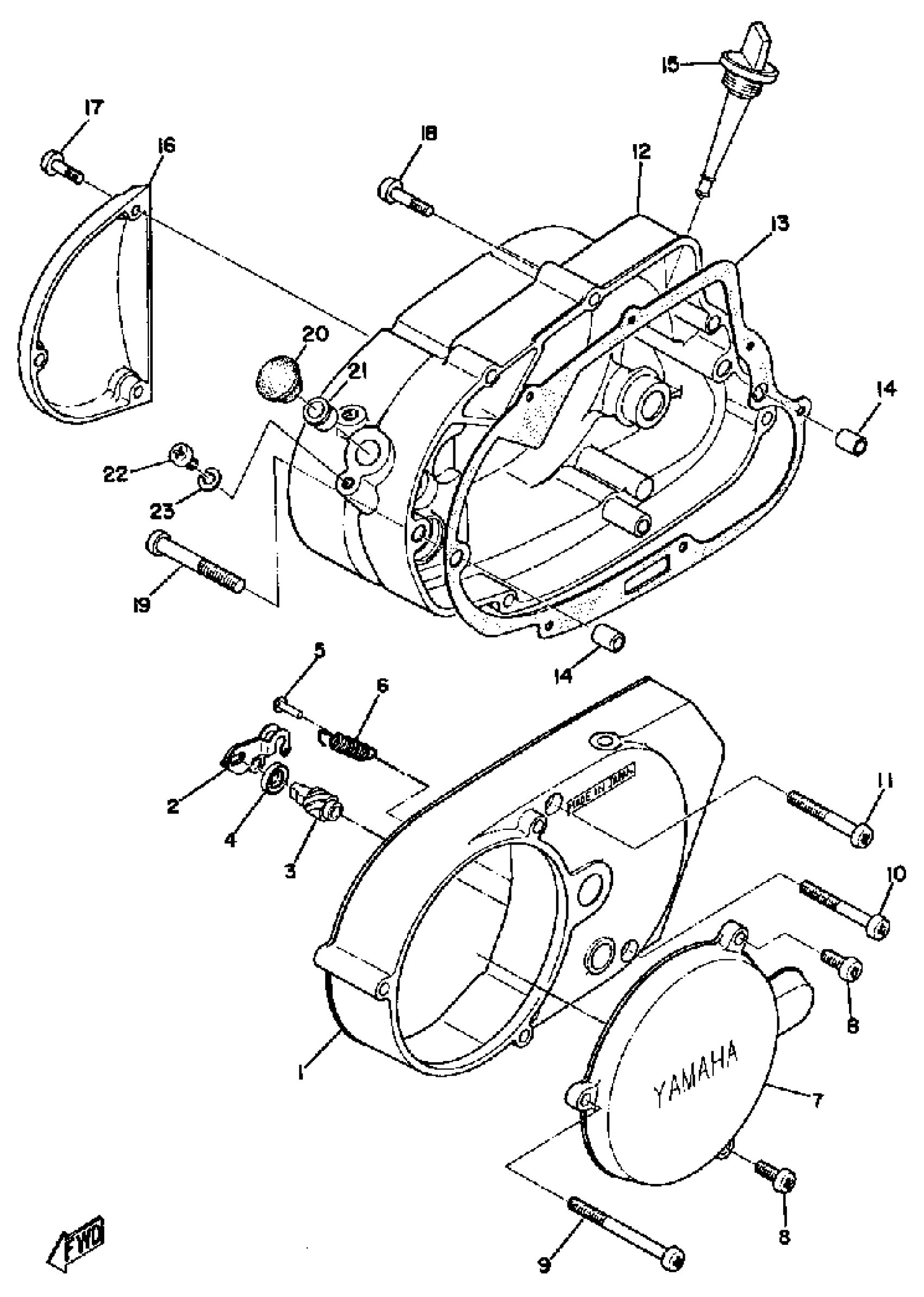

Find the part on the Crankcase Cover diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE COVER ASSY (L.H)

382-W1541-60-00

—

$65.78

In stock

2

. LEVER, PUSH

276-16342-00-00

1
Out of stock

3

SCREW, PUSH

241-16341-01-00

1
Out of stock

4

SEAL 0IL (2V7)

93104-10085-00

1
Out of stock

5

HOOK, SPRING

132-16346-00-00

1
Out of stock

6

1

$5.72

In stock

7

COVER, 1

276-15415-11-00

—

$37.74

In stock

8

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

9

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

10

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

11

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

12

COVER, CRANKCASE R

276-15421-02-00

1
Out of stock

13

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

1

$26.50

In stock

14

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

15

PLUG, OIL LEVEL

315-15362-01-00

1

$13.58

In stock

16

COVER, OIL PUMP

248-15416-01-Y4

1
Out of stock

17

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

18

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

19

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

20

PLUG(12Y)

90338-16029-00

—

$6.85

In stock

21

BUSH (214-17843-00)

90381-08002-00

—

$10.54

In stock

22

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
