1990 Suzuki LT250S Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 1990 Suzuki LT250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

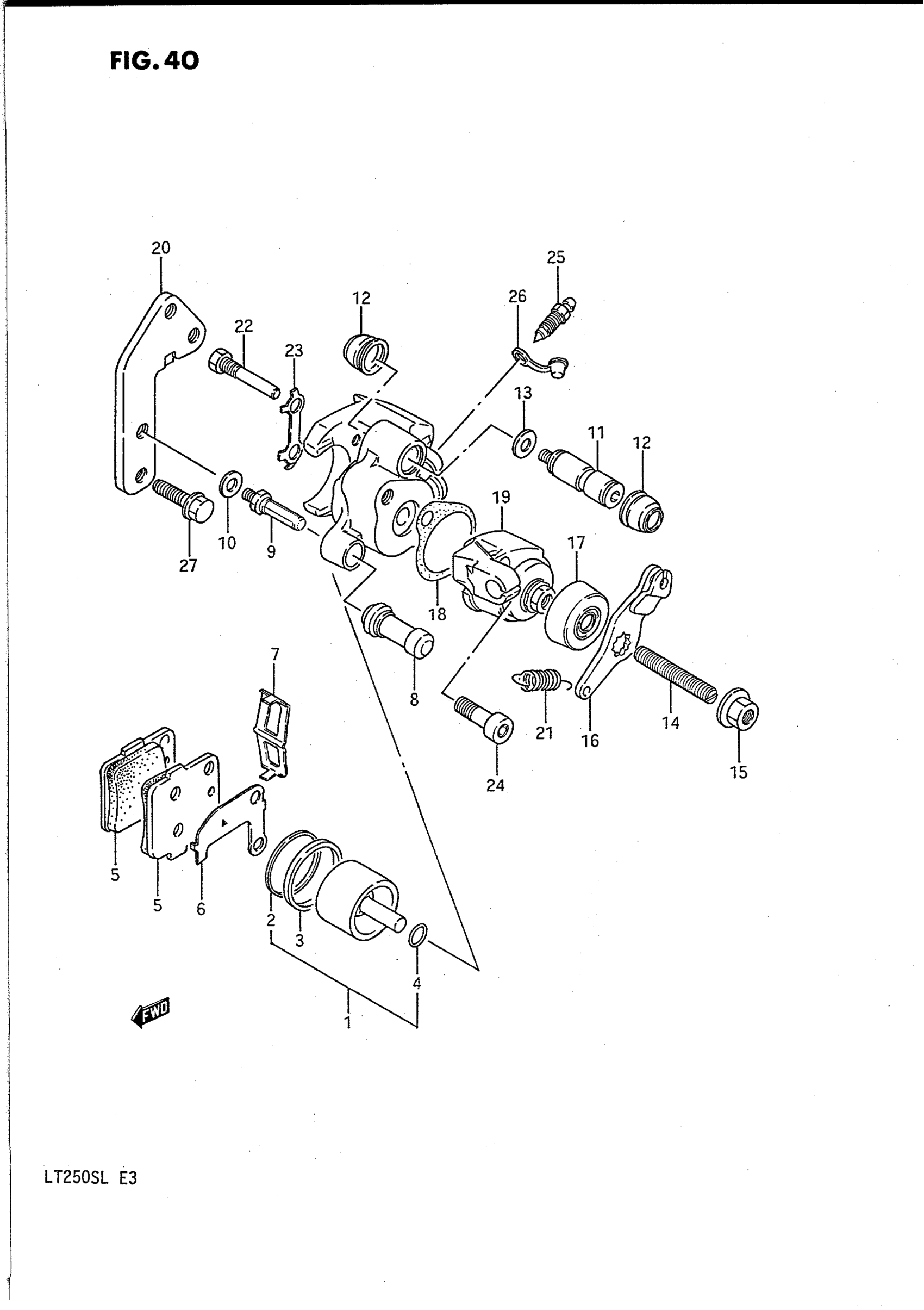

1990 Suzuki LT250S Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 26

69100-35B00

1
Out of stock

1

PISTON SET This part replaces 69100-19840.

69100-19841

1
Out of stock

2

DUST SEAL

59108-13A00

1
Out of stock

3

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

1
Out of stock

4

O RING

69322-19A00

1
Out of stock

5

PAD SET This part replaces 69140-19A11.

69100-19821

2
Out of stock

6

SHIM

59371-13A00

1
Out of stock

7

SPRING

59315-13A00

1
Out of stock

8

BOOT

59386-13A00

1
Out of stock

9

BOLT

59382-13A00

1
Out of stock

10

WASHER

59314-13A00

1
Out of stock

11

PIN

69305-19A00

1
Out of stock

12

BOOT

59303-13A00

2
Out of stock

13

SPRING

59306-13A00

1
Out of stock

14

ADJUST BOLT

69327-19A00

1
Out of stock

15

NUT

69323-19A00

1
Out of stock

16

ARM

69325-35B00

1
Out of stock

17

BOOT

69329-19A00

1
Out of stock

18

PACKING This part replaces 69326-19A00.

69326-19A01

1
Out of stock

19

BRAKE, PARKING

69320-35B00

1
Out of stock

20

BRACKET

69351-35B00

1
Out of stock

21

SPRING

69328-19A00

1
Out of stock

22

PIN

59345-13A00

2
Out of stock

23

WASHER

59346-13A00

1
Out of stock

24

BOLT

69321-19A00

2
Out of stock

25

BLEEDER

59121-01A00

1
Out of stock

26

CAP

59122-01A00

1
Out of stock

27

BOLT This part replaces 01517-08306.

01550-0830A

2
Out of stock
