1990 Suzuki LT250S Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1990 Suzuki LT250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

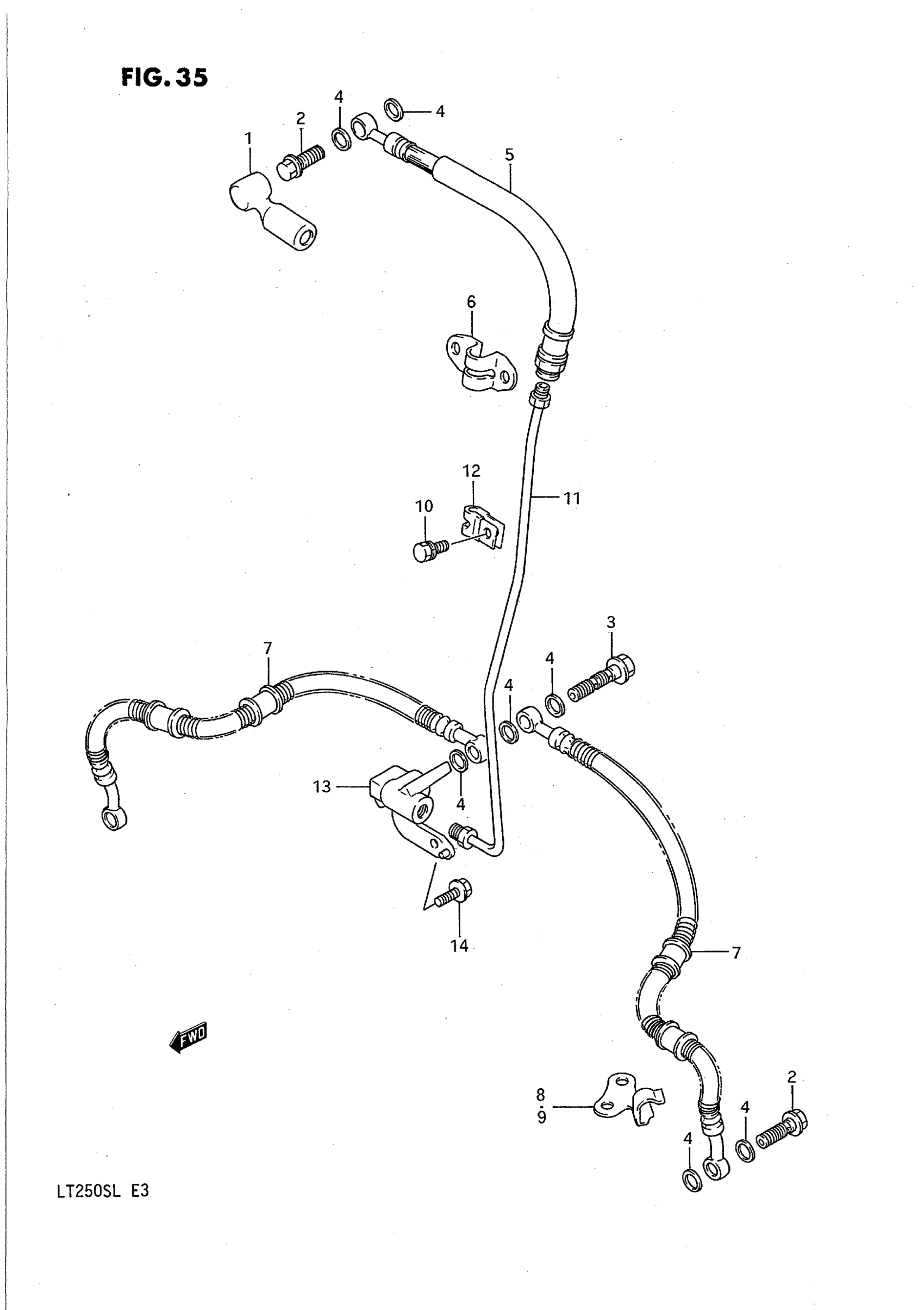

1990 Suzuki LT250S Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

1
Out of stock

2

BOLT (10X24)

09360-10017

3
Out of stock

3

BOLT (10X36)

09360-10018

1
Out of stock

4

WASHER (10X15X1.5)

09161-10009

9
Out of stock

5

HOSE, FRONT BRAKE NO.1

59480-25C00

1
Out of stock

6

CLAMP, HOSE NO.1

59243-25C00

1
Out of stock

7

NO DESCRIPTION AVAILABLE This part replaces 59240-25C00.

59240-25C01

2
Out of stock

8

CLAMP, HOSE NO.2 RH

59261-25C00

1
Out of stock

9

CLAMP, HOSE NO.2 LH

59271-25C00

1
Out of stock

10

BOLT This part replaces 01134-06126.

01570-0612A

1
Out of stock

11

PIPE, FRONT BRAKE

59250-25C00

1
Out of stock

12

CLAMP, PIPE

09403-06401

1
Out of stock

13

JOINT, FRONT BRAKE

59490-25C00

1
Out of stock

14

BOLT This part replaces 01517-06167.

01550-06167

1
Out of stock
