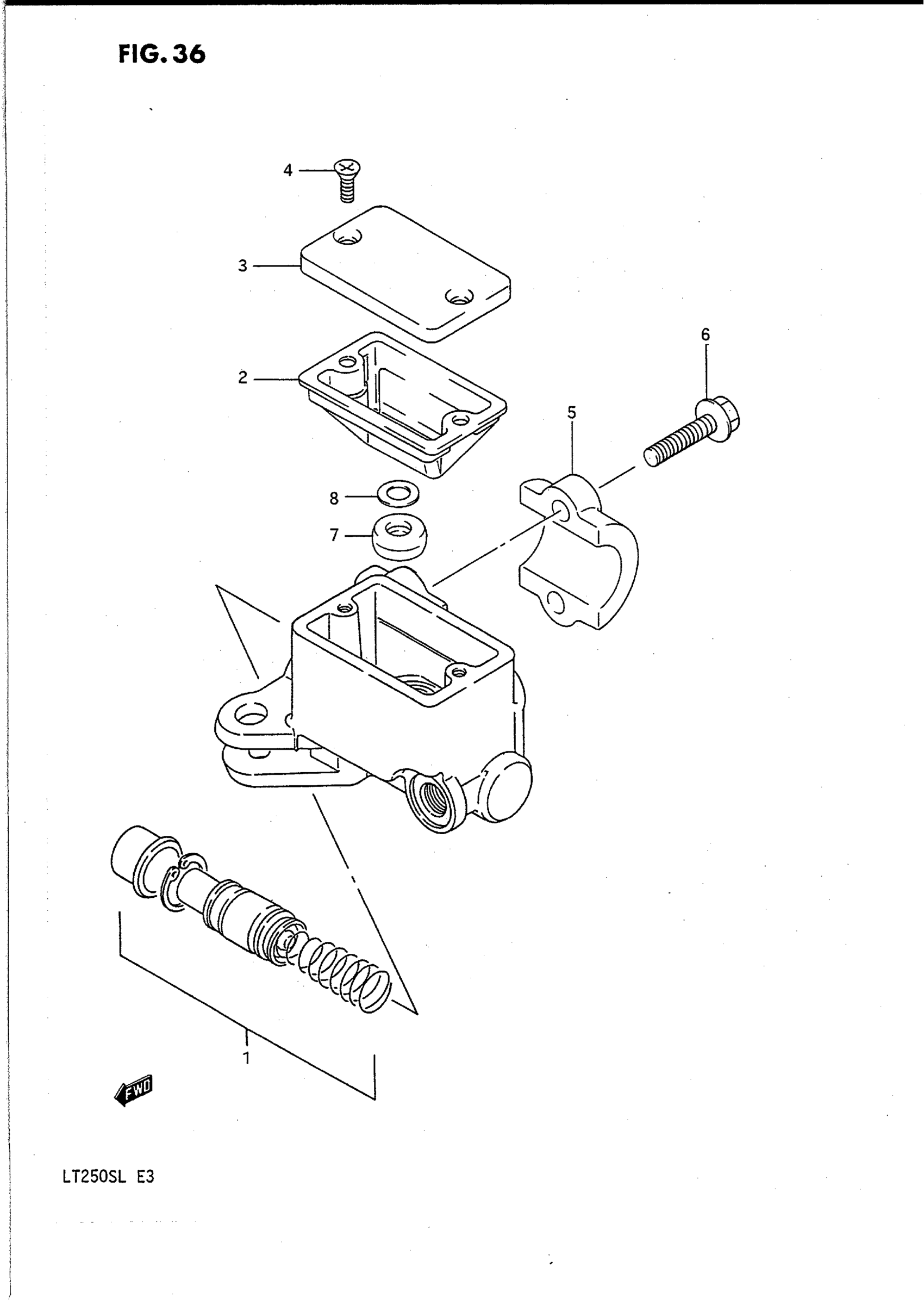

Suzuki LT250S (1990) FRONT MASTER CYLINDER Diagram

#

Description
Price

MASTER CYLINDER ASSY, FRONT | Includes Item(s) 1 - 8

59600-25C00

Unavailable

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

2

DIAPHRAGM

59667-24500

$13.50

3

CAP

69669-24A01

$14.23

4

SCREW, CAP

69689-49300

$1.81

5

HOLDER

59671-19B00

$22.65

6

BOLT This part replaces 01117-06255.

01550-0625A

$1.97

7

SEPARATOR

59748-15400

$8.83

8

PLATE

59749-15400

$2.80
