1986 Suzuki LT250EF Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 1986 Suzuki LT250EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

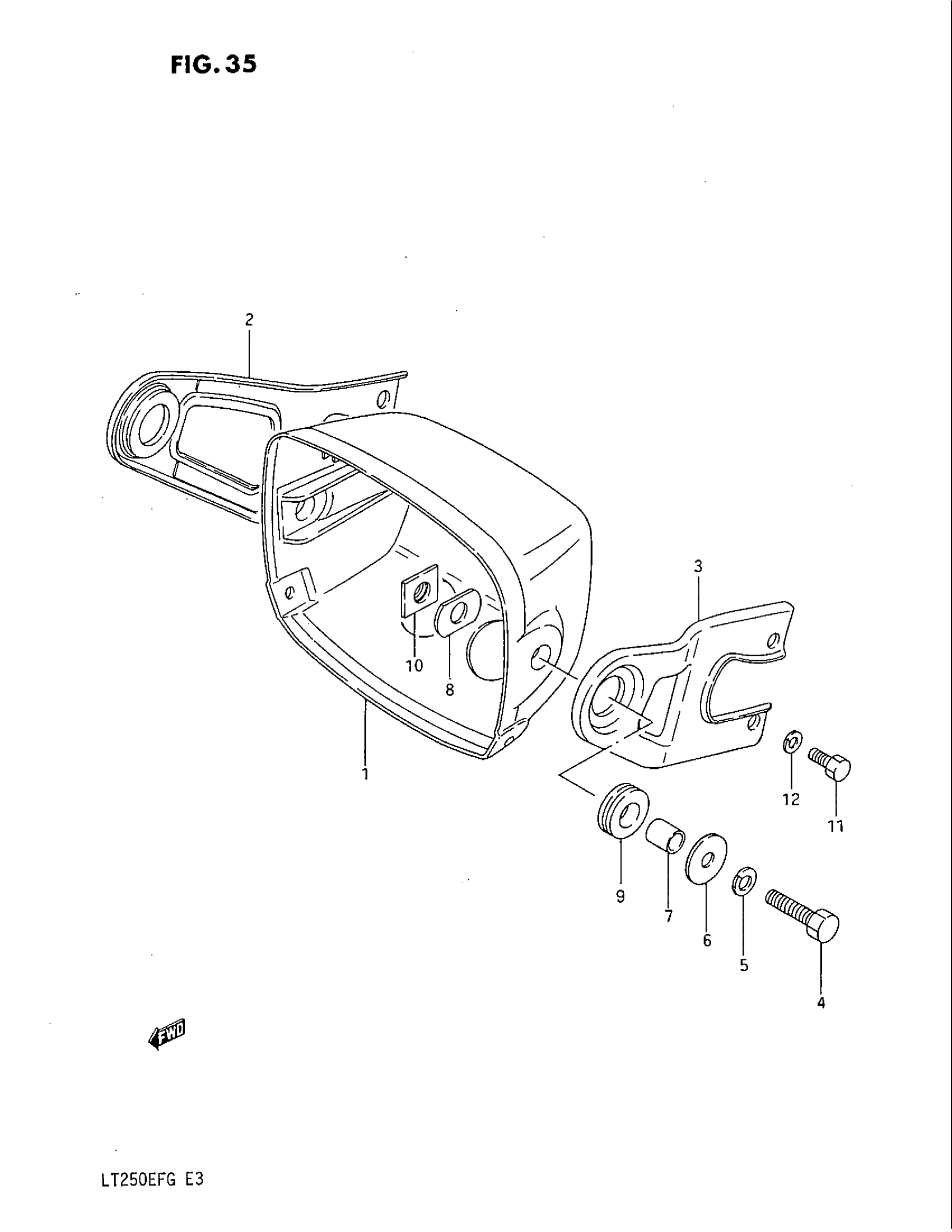

1986 Suzuki LT250EF Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP (BLACK)

51811-24400-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 51530-24501.

51500-24820

1
Out of stock

3

BRACKET, HEAD LAMP, LH

51540-24501

1
Out of stock

4

2

$2.94

In stock

4

BOLT | MODEL G This part replaces 01107-08304.

01500-0830B

2
Out of stock

7

2

$3.00

In stock

8

2

$2.52

In stock

9

2

$2.05

In stock

10

PLATE

51860-24400

2
Out of stock

11

BOLT This part replaces 01107-06126.

01500-0612A

4
Out of stock

12

4

$1.97

In stock
