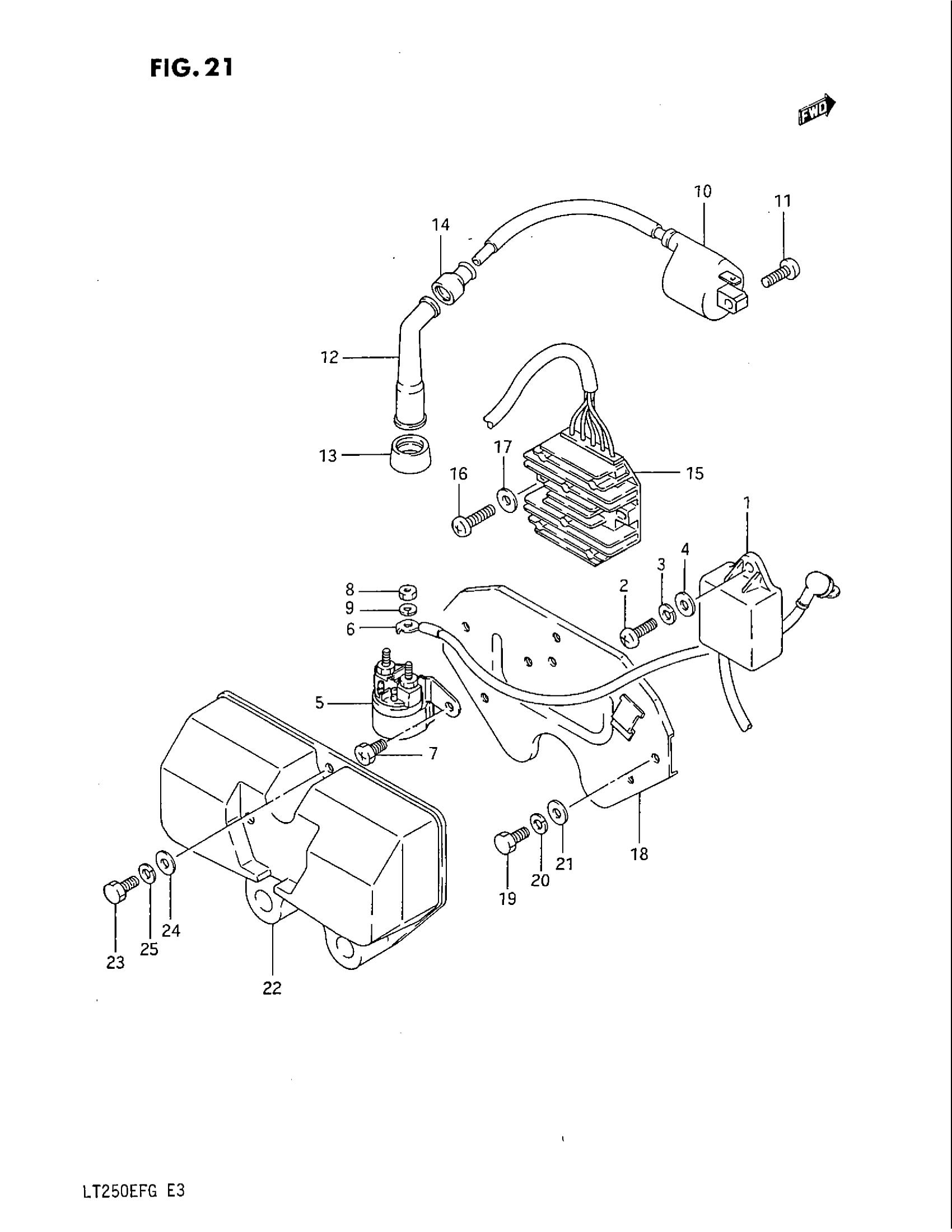

Suzuki LT250EF (1986) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT

32900-24510

Unavailable

2

SCREW This part replaces 02112-06166.

02112-0616A

$1.43

3

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

4

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

5

RELAY, STARTING MOTOR

31800-49100

$89.07

6

LEAD WIRE, STARTING MOTOR This part replaces 33850-24500.

33850-05A00

Unavailable

7

SCREW

09128-06038

Unavailable

8

NUT This part replaces 08310-11066.

08310-0006A

$1.83

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

10

COIL ASSY,IGNIT This part replaces 33410-24510.

33410-09412

Unavailable

11

SCREW

09129-06003

Unavailable

12

CAP, SPARK PLUG

33510-45010

$23.52

13

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.16

14

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$3.97

15

RECTIFIER ASSY This part replaces 32800-24500.

32800-24501

Unavailable

16

SCREW This part replaces 02112-06206.

02112-0620A

$1.45

17

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

18

HOLDER, ELECTRIC PARTS

47410-24500

Unavailable

19

BOLT This part replaces 01107-06126.

01500-0612A

$1.80

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

21

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24

22

COVER, ELECTRIC PARTS

47433-24501

Unavailable

23

BOLT This part replaces 01107-06125.

01500-0612A

$1.80

24

WASHER This part replaces 09169-06034.

09169-06071

$2.50

25

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.83
