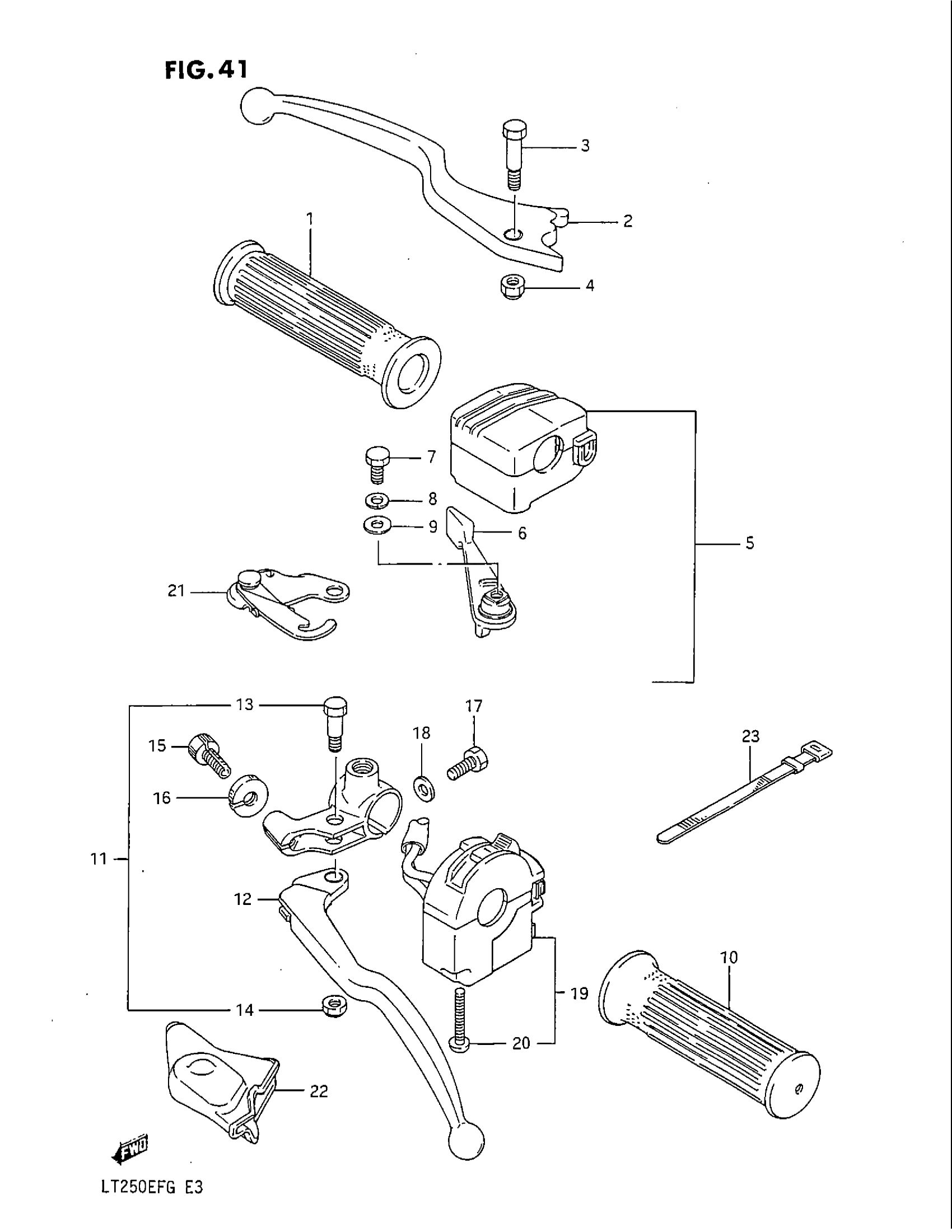

Suzuki LT250EF (1986) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP

57211-24201

Unavailable

2

LEVER, BRAKE

57420-49101

$31.26

3

BOLT

57431-49100

Unavailable

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

5

CASE ASSY, THROTTLE | Includes Item(s) 6 - 9 This part replaces 57100-24502.

57100-39DB0

$128.28

6

LEVER

57151-24301

$12.19

7

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

8

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.83

9

WASHER

09160-06019

$1.38

10

GRIP

57211-24201

Unavailable

11

LEVER ASSY, REAR BRAKE | Includes Item(s) 12 - 18 This part replaces 57500-24501.

57500-24502

Unavailable

12

LEVER This part replaces 57620-24500.

57620-24501

Unavailable

13

BOLT

57431-29502

$8.65

14

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

15

ADJUSTER

57441-44400

$5.91

16

NUT This part replaces 57442-44400.

57442-11010

$2.80

17

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.77

18

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

19

SWITCH ASSY, LH | Includes Item(s) 20 This part replaces 37400-24501.

37400-24502

Unavailable

20

SCREW This part replaces 02112-05358.

02112-05357

$1.49

21

STOPPER, BRAKE

57790-18900

Unavailable

22

COVER, BRAKE DUST This part replaces 57541-29500.

57541-29501

$11.55

23

BAND

09407-12402

$2.80
