1986 Suzuki LT250EF Cam Shaft - Valve Diagram

← All diagrams

Find the part on the Cam Shaft - Valve diagram for your 1986 Suzuki LT250EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

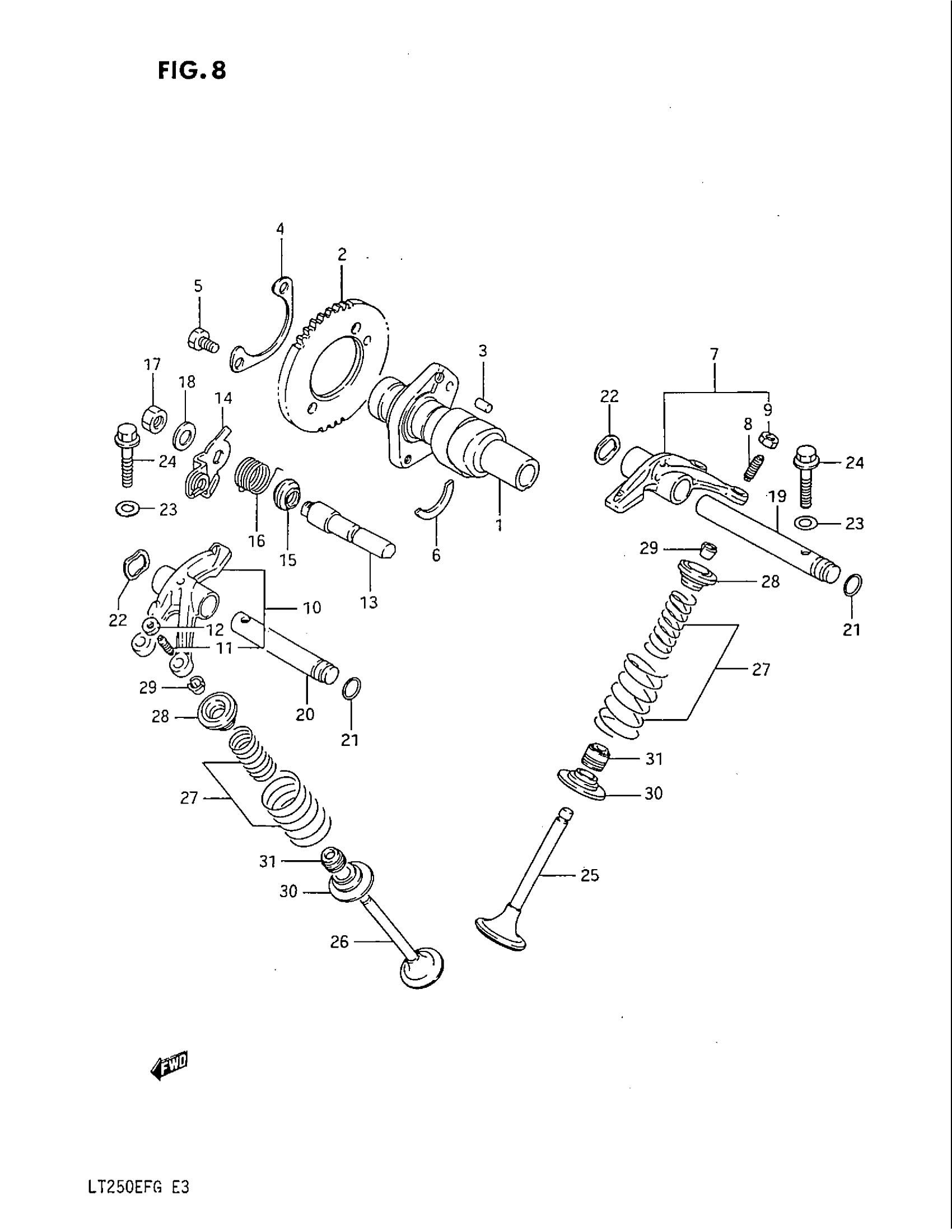

1986 Suzuki LT250EF Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT This part replaces 12711-24502.

12711-24503

1
Out of stock

2

SPROCKET (NT:42)

12741-37400

1
Out of stock

3

PIN

04221-05109

1
Out of stock

4

WASHER This part replaces 12747-44000.

12747-44001

1
Out of stock

5

BOLT

09111-06027

2
Out of stock

6

C RING

09390-25003

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-24500.

12840-38201

1
Out of stock

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

2
Out of stock

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

2
Out of stock

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12 This part replaces 12850-24500.

12850-38201

1
Out of stock

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

2
Out of stock

12

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

2
Out of stock

13

SHAFT, DECOMP

12941-37103

1
Out of stock

14

LEVER, DECOMP SHAFT

12942-24501

1
Out of stock

15

SEAL, OIL This part replaces 09284-10008.

09282-10014

1
Out of stock

16

SPRING This part replaces 09448-17015.

09448-17014

1
Out of stock

17

NUT This part replaces 08310-22088.

08310-00087

1
Out of stock

18

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

19

SHAFT, ROCKER ARM IN | L:91.5

12861-38200

1
Out of stock

20

SHAFT, ROCKER ARM EX | L:76

12871-38200

1
Out of stock

21

.O RING (D:1.9,ID:8.6)

09280-09005

2
Out of stock

22

WASHER

09164-12018

2
Out of stock

23

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

2
Out of stock

24

BOLT This part replaces 01517-06308.

01550-06307

2
Out of stock

25

VALVE, INTAKE (OD:26)

12911-38200

2
Out of stock

26

VALVE, EXHAUST This part replaces 12912-38200.

12912-38201

2
Out of stock

27

SPRING SET, VALVE

12920-24500

4
Out of stock

28

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

4
Out of stock

29

COTTER, VALVE

12932-49200

8
Out of stock

30

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

4
Out of stock

31

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

4
Out of stock
