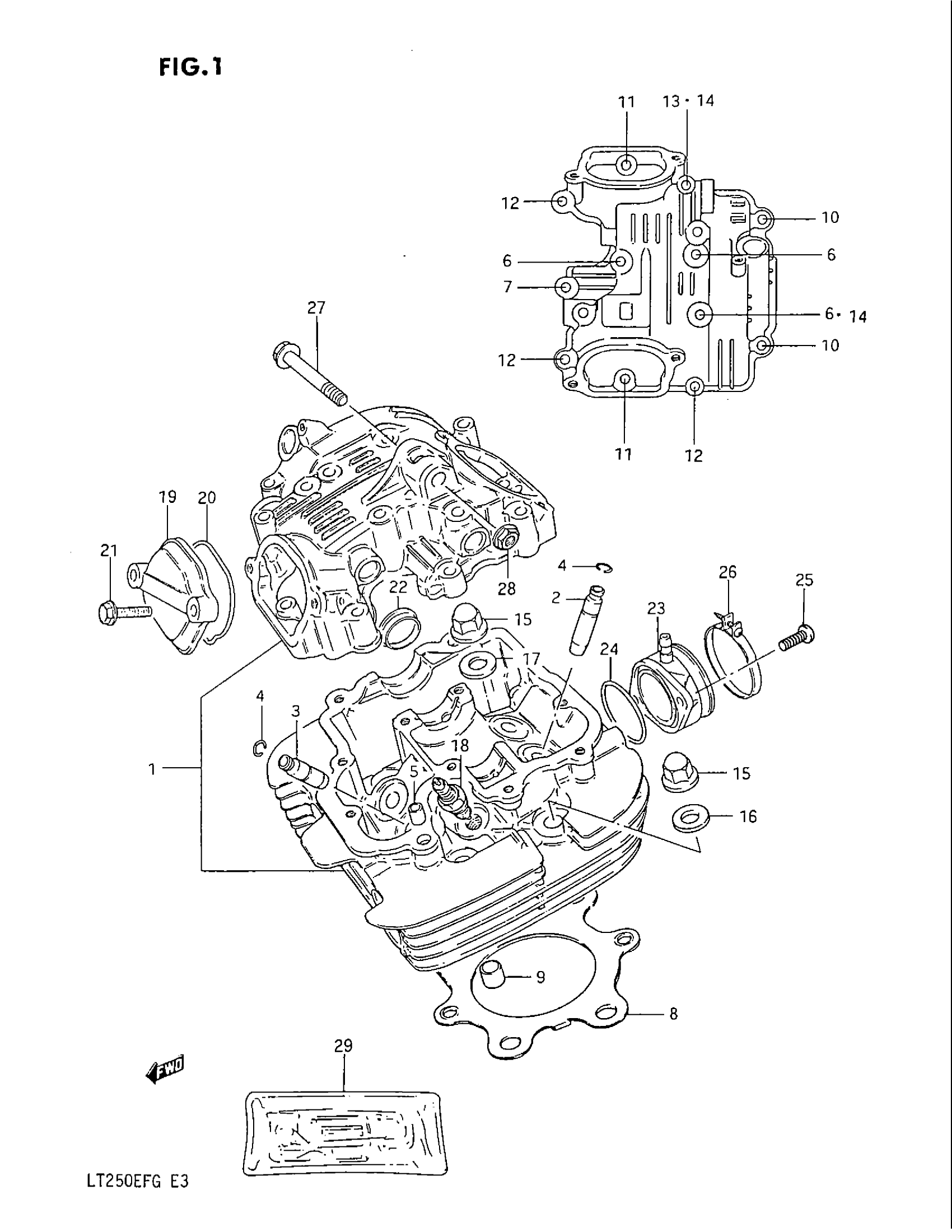

Suzuki LT250EF (1986) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 7

11100-24504

Unavailable

2

GUIDE, VALVE IN

11115-38270

$45.97

3

GUIDE, VALVE (0S:0.3)

11115-05270

$30.22

4

.RING (10X85)

09381-10004

$1.35

5

PIN

09206-08001

$1.77

6

BOLT This part replaces 01517-06608.

01550-06607

$4.53

7

BOLT This part replaces 01517-06308.

01550-06307

$2.73

8

GASKET, CYLINDER HEAD This part replaces 11141-24501.

11141-25D11

$29.62

9

PIN This part replaces 09206-13001.

04211-13189

$2.19

10

BOLT (6X115)

09103-06052

$5.10

11

BOLT This part replaces 01517-06308.

01550-06307

$2.73

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.73

13

BOLT This part replaces 01517-06608.

01550-06607

$4.53

14

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

15

NUT

09159-10026

$5.67

16

WASHER

09160-10039

$2.24

17

GASKET

09168-10017

$2.80

18

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$2.95

18

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$4.60

19

CAP, INSPECTION This part replaces 11175-38201.

11175-38202

$26.35

20

O RING

09280-55003

$3.52

21

BOLT This part replaces 01517-06258.

01550-06257

$2.31

22

PLUG, HEAD

09241-30004

$5.97

23

PIPE,INTAKE This part replaces 13110-24501.

13100-24501

Unavailable

24

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

25

SCREW This part replaces 02152-06205.

02112-0620A

$1.45

26

CLAMP This part replaces 09402-48207.

09402-48208

$4.19

27

BOLT,8X50 This part replaces 09103-08082.

09103-08395

$3.36

28

NUT This part replaces 08319-31085.

08319-3108A

$2.31

29

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-24830.

11400-24838

Unavailable
